Remove contacts from Micro Timer 3 coupling - AR00.19-P-0120-06A

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL ALL

Fig 1: Identifying Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying MT 3 Blade (220 589 01 99 54)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with sliding plate

Using a suitable tool, push sliding plate out of locked position.

Fig 5: Pushing Sliding Plate From Locked Position Using Suitable Tool
Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with locking slider
Using a suitable tool, pry locking slider out of locked position.

Fig 6: Pushing Locking Slider From Locked Position Using Suitable Tool
Courtesy of MERCEDES-BENZ USA

Remove female contact from coupling
Insert blade holder with clamping pliers and MT 3 blade from front side though openings at contact cavity of coupling.
Do not damage webs between contact cavity and openings for release tool.

This pushes together the springs at the female contact (1).

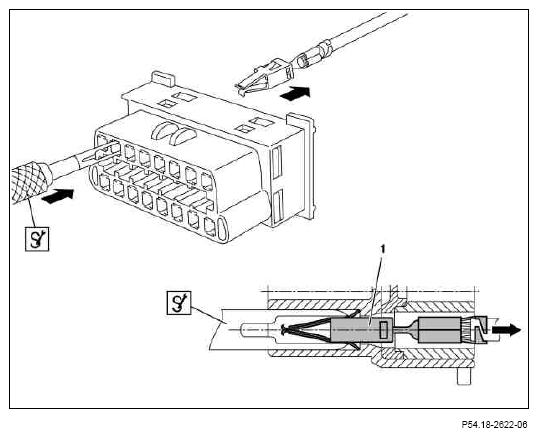

Fig 7: Inserting Blade Holder With Clamping Pliers And MT 3 Blade
Courtesy of MERCEDES-BENZ USA
A slight tug on the corresponding cable will remove the female contact from the coupling.
