Remove contacts from FIN sensor contact connector - AR00.19-P-0120-13A

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL ALL

Fig 1: Identifying Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying LSK 8 Blade (220 589 01 99 56)

Courtesy of MERCEDES-BENZ USA

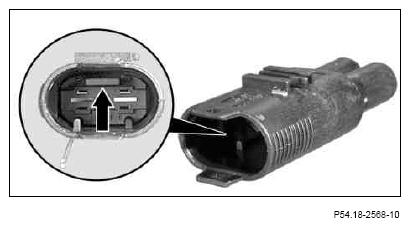

Unfasten secondary release on version with disk

Using a suitable tool, push the disk out of the last detent in direction shown by arrow.

Fig 5: Pushing Disk From Last Detent Using Suitable Tool
Courtesy of MERCEDES-BENZ USA

Unpin female contacts from connector
Insert blade holder with clamping pliers and LSK 8 blade from front side though openings at contact cavity of connector (1).
This results in the spring shackles (2) of the contact pin being compressed.
A slight tug on the corresponding cable will remove the contact pin from the connector.

Fig 6: Inserting Blade Holder With Clamping Pliers And LSK 8 Blade
Courtesy of MERCEDES-BENZ USA
