Remove contacts from E 95 coupling - AR00.19-P-0120-05A

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL ALL

Fig 1: Identifying Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying E 95 Blade (220 589 01 99 55)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with "E 95 coupling" tab

Using a suitable tool, push tab in direction of arrow out of locked position.

Fig 5: Pushing Tab From Locked Position Using Suitable Tool
Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with "E 95 coupling" slide
Using a suitable tool, move slide in direction of arrow into pre-locking position (1).

Fig 6: Moving Slide Into Pre-Locking Position Using Suitable Tool
Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with "E 95 coupling" securing clip
Push retainer (1) in direction of arrow out of locked position using a suitable tool.
The seal may be damaged if the tool is inserted too.

Fig 7: Pushing Retainer From Locked Position Using Suitable Tool
Courtesy of MERCEDES-BENZ USA

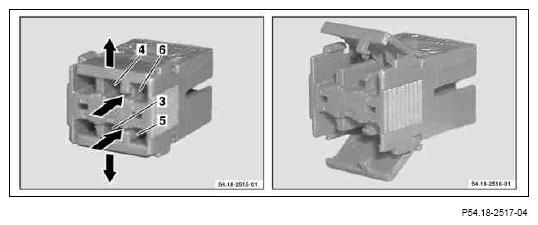

Unfasten secondary release on version with "E 95 coupling" contact retainer
Press on tabs of contact retainer between the contact cavities (3, 5 or 4, 6) with suitable tool.
Open contact retainer.

Fig 8: Pressing On Contact Retainer Tabs Between Contact Cavities With Suitable Tool
Courtesy of MERCEDES-BENZ USA

Unpin female contacts from "E 95 coupling"
Insert blade holder with clamping pliers and E 95 blade from front side though openings at contact cavity of coupling (2).
Insert tool carefully to prevent damaging webs between contact cavity and openings for release tool.

This pushes together the springs at the female contact (1).

Fig 9: Insert Blade Holder With Clamping Pliers And E 95 Blade
Courtesy of MERCEDES-BENZ USA
A slight tug on the corresponding cable will remove the female contact (1) from the coupling (2).
