Location and assignment of ground points, trunk right - GF00.19-P-2000-09DAA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

Fig 1: Vehicle Right Trunk Ground Points Location (1 Of 2)
G10049898Courtesy of MERCEDES-BENZ USA

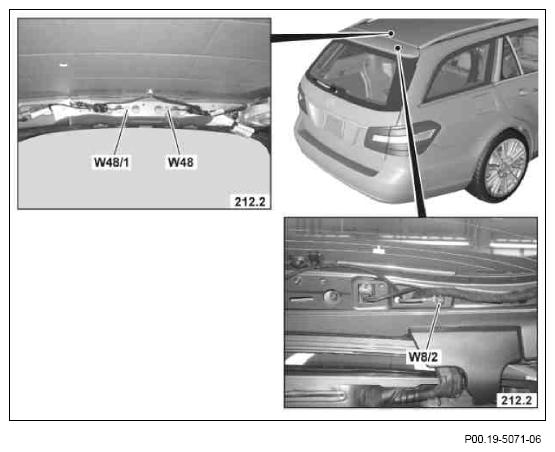

Fig 2: Vehicle Right Trunk Ground Points Location (2 Of 2)
G10049899Courtesy of MERCEDES-BENZ USA
