Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk left - GF00.19-P-3000-06DAA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

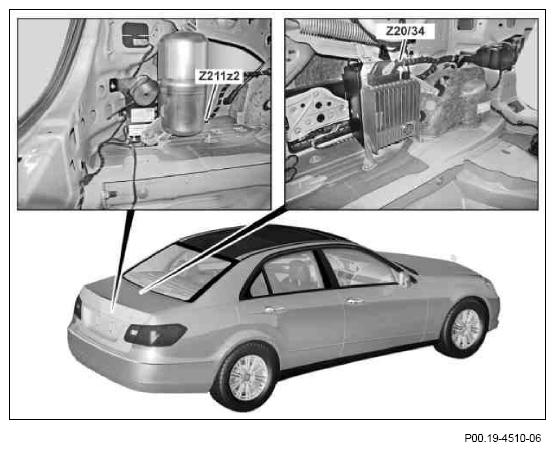

Fig 1: Left Trunk Z Connector Sleeves Location (1 Of 3)

Courtesy of MERCEDES-BENZ USA

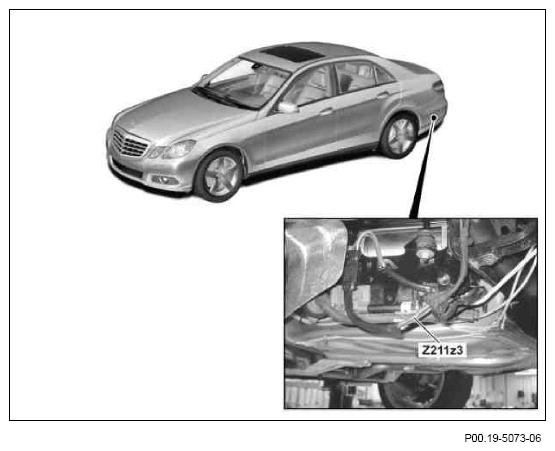

Fig 2: Left Trunk Z Connector Sleeves Location (2 Of 3)

Courtesy of MERCEDES-BENZ USA

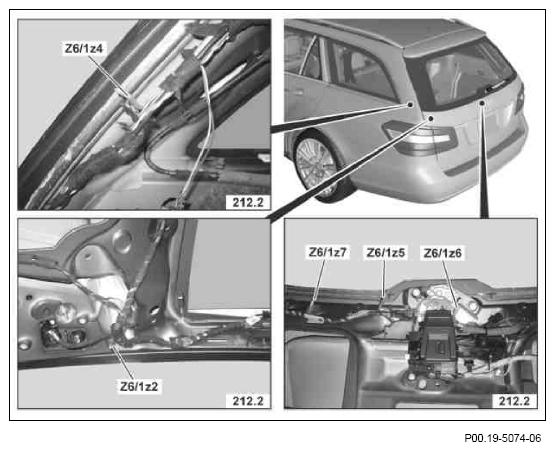

Fig 3: Left Trunk Z Connector Sleeves Location (3 Of 3)

Courtesy of MERCEDES-BENZ USA
