CAN electrical connector, as-built configuration - GF00.19-P-0800FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0

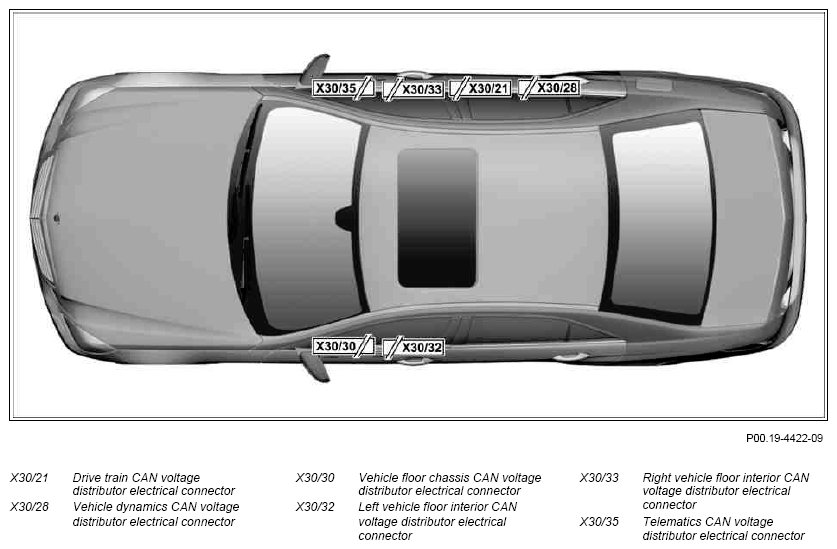

Fig 1: CAN Electrical Connector

Courtesy of MERCEDES-BENZ USA

Shown on model 212.0

CAN hub assignment

Drive train CAN voltage distributor electrical connector
Vehicle dynamics CAN voltage distributor electrical connector
Vehicle floor chassis CAN voltage distributor electrical connector
Left vehicle floor interior CAN voltage distributor electrical connector
Right vehicle floor interior CAN voltage distributor electrical connector
Telematics CAN voltage distributor electrical connector

Drive train CAN voltage distributor electrical connector

Front SAM control unit with fuse and relay module (N10/1)
CDI control unit (N3/9) (on diesel engine)
ME-SFI [ME] control unit (N3/10) (on gasoline engine)
Intelligent servo module for DIRECT SELECT (A80) (with transmission 722.9)
Electronic transmission-control control unit (N15/3) (on transmission 722.6)
Electronic selector lever module control unit (N15/5) (with transmission 722)
Fuel pump control unit (N118)
Right footwell ground point (W15/1)
Fully integrated transmission control unit (Y3/8n4) (with transmission 722.9)

Vehicle dynamics CAN voltage distributor electrical connector

DISTRONIC electric controller unit (A89) (with code (233) DISTRONIC PLUS)
Yaw rate sensor for lateral and longitudinal acceleration (B24/15) (with code (233) DISTRONIC PLUS)
Premium Electronic Stability Program control unit (N30/7) (with code (233) DISTRONIC PLUS)
Radar sensors control unit (N62/1)
(with code (233) DISTRONIC PLUS or code (234) Blind Spot Assist)

Vehicle floor chassis CAN voltage distributor electrical connector

Instrument cluster (A1)
Multifunction camera (A40/11) (with code (476) Automatic Lane Detection or code (513) Speed Limit Assist or code (608) Adaptive Highbeam Assist)
Left front reversible emergency tensioning retractor (A76)
Right front reversible emergency tensioning retractor (A76/1)
Supplemental restraint system control unit (N2/10)
CDI control unit
ME-SFI [ME] control unit
Front SAM control unit with fuse and relay module
Electronic transmission-control control unit
Electronic Stability Program control unit (without code (233) DISTRONIC PLUS) or Premium Electronic Stability Program control unit
PARKTRONIC control unit (N62) (with code (230) Exclusive parking assist without code (498) Japan version, with code (220) PARKTRONIC and code (498) Japan version)
Radar sensors control unit
Electronic ignition lock control unit (N73)
Steering column module control unit (N80)
Tire pressure monitoring control unit (N88) (with code (475) Tire pressure monitor (Premium))
Night View Assist control unit (N101) (with code (610) Night View Assist)
Left footwell ground point (W15/2)

Left vehicle floor interior CAN voltage distributor electrical connector

Instrument cluster
Front SAM control unit with fuse and relay module
Automatic air conditioning control and operating unit (N22/7)
Driver seat control unit (N32/1) (with code (275) Memory package for electrically adjustable front seats)
Control unit for trunk lid control (N121) (with code 881) Remote trunk closing (HDFS))
Panoramic sliding roof control module (A98) (with code (413) Panoramic glass sunroof with top sliding sunroof)
Steering wheel heater function (N25/7) (with code (443) Steering wheel heater)
Pneumatic pump for dynamic multicontour seat (M40/1) (with code (432) Dynamic multicontour seat, left and right)
Reversing camera control unit (N66/2) (with code (218) Reversing camera and code (498) Japan version)
Trailer recognition control unit (N28/1) (for code (550) Trailer hitch)
Left front dynamic multicontour seat control unit (N32/19) (with code (432) Dynamic multicontour seat, left and right)
Left front door control unit (N69/1)
Left rear door control unit (N69/3)
Overhead control panel control unit (N70) (with code (414) Power glass tilting/sliding sunroof)
Electronic ignition switch control unit
Left front footwell ground point
Right vehicle floor interior CAN voltage distributor electrical connector

Right vehicle floor interior CAN voltage distributor electrical connector

Radio (A2) (with code (510) Audio 20 with CD changer or with code (523) MB Audio 20 radio)
Radio with auto pilot system (A2/56) (with code (511) Audio 50 APS with DVD changer or with code (525) MB Audio 50 APS radio)
Stationary heater control unit (A6n1) (with code (228) Stationary heater)
COMAND controller unit (A40/3) (with code (512) COMAND APS with DVD changer or with code (527) COMAND APS with single DVD drive (with navigation) or with code (528) COMAND incl. DVD changer)
Rear SAM control unit with fuse and relay module (N10/2)
Rear seat heater control unit (N25/6) (with code (872) Electric seat heater for left and right rear seat)
Special-purpose vehicle multifunction control unit (N26/9) (with code (965) Electrical preinstallation for rental vehicles)
Front passenger seat control unit (N32/2) (with code (275) Memory package for electrically adjustable front seats)
Right front dynamic multicontour seat control unit (N32/22) (with code (432) Dynamic multicontour seat, left and right)
Right front door control unit (N69/2)
Right rear door control unit (N69/4)
Keyless-Go control unit (N69/5) (with code (889) Keyless-Go)
WSS (Weight Sensing System) control unit (N110) (with code (494) USA version)
Left vehicle floor interior CAN voltage distributor electrical connector

Telematics CAN voltage distributor electrical connector

Radio
Radio with auto pilot system
COMAND control unit
DVD player (with code (864) Rear entertainment system)
Left rear display (A40/5) (with code (864) Rear entertainment system)
Right rear display (A40/6) (with code (864) Rear entertainment system)
Audio/COMAND display (A40/8)
Audio/COMAND control panel (A40/9)
TV tuner (analog/digital) (A90/1) (with code (863) Digital/analog TV tuner)
TV digital tuner (A90/3) (with code (527) COMAND APS with single DVD drive (with navigation) and code (498) Japan version)
Left front footwell ground point (CAN) (W15/5)

Wiring diagram of drive train CAN	Potential distributor X30/21	PE00.19-P-2170-97DAA
Wiring diagram of vehicle dynamics CAN	Potential distributor X30/28	PE00.19-P-2190-97DAA
Wiring diagram of chassis CAN	Potential distributor X30/30	PE00.19-P-2195-97DAA
Wiring diagram of interior CAN	Potential distributor X30/32	PE00.19-P-2185-97DAA
Wiring diagram of interior CAN	Potential distributor X30/33	PE00.19-P-2185-97DAB
Wiring diagram of telematics CAN	Potential distributor X30/35	PE00.19-P-2180-97DAA
