Routing diagram of poly V-belt - AR13.22-P-3902-02SX

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273

Shown on engine 272.965

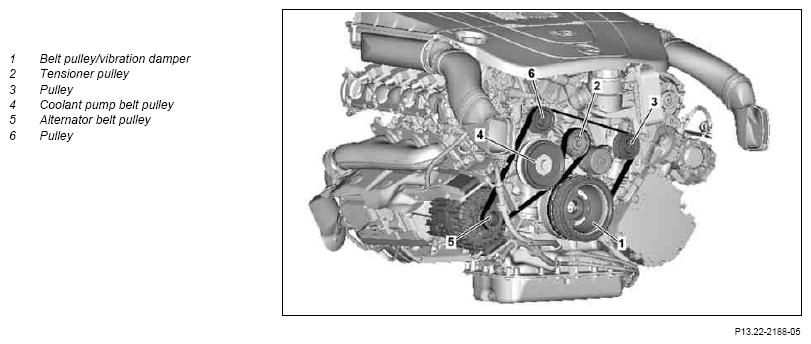

Fig 1: Poly V-Belt Routing Diagram - Engine 272.965

Courtesy of MERCEDES-BENZ USA

Shown on engine 272.974 with single-belt pulley

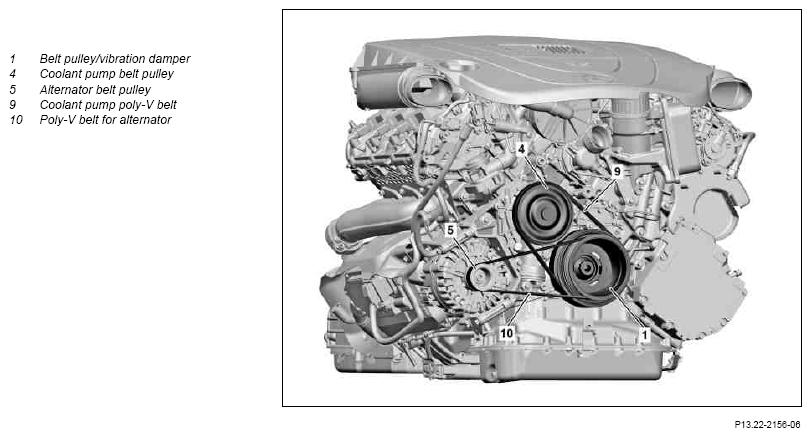

Fig 2: Poly V-Belt Routing Diagram - Engine 272.974 With Single-Belt Pulley

Courtesy of MERCEDES-BENZ USA

Shown on engine 272.974 with twin belt drive

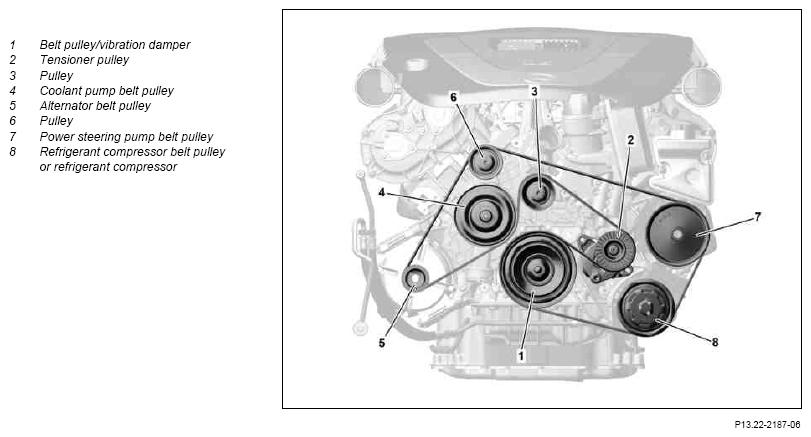

Fig 3: Poly V-Belt Routing Diagram - Engine 272.974 With Twin Belt Drive

Courtesy of MERCEDES-BENZ USA
