Routing diagram for poly-V belt - AR13.22-P-3902-02MM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 276, 278

Engine 276 in model 212.095/195

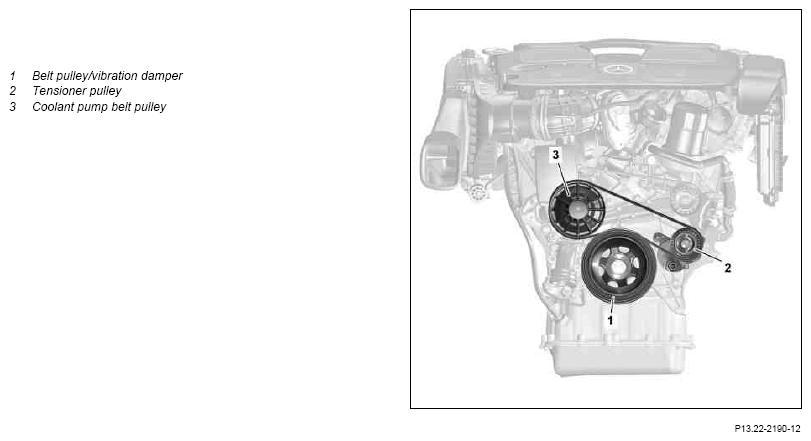

Fig 1: Poly-V Belt Routing Diagram - Engine 276 In Model 212.095/195

G10240904

Courtesy of MERCEDES-BENZ USA

Engine 276 without hydraulic power steering pump

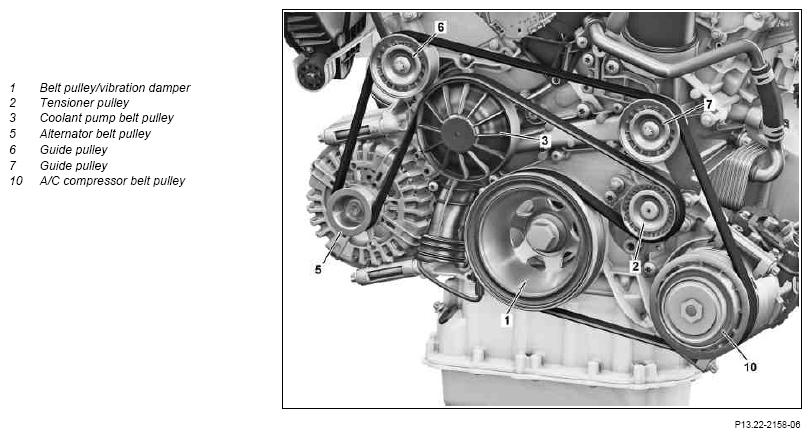

Fig 2: Poly-V Belt Routing Diagram - Engine 276 Without Hydraulic Power Steering Pump

G10240905

Courtesy of MERCEDES-BENZ USA

Engine 276 with hydraulic power steering pump

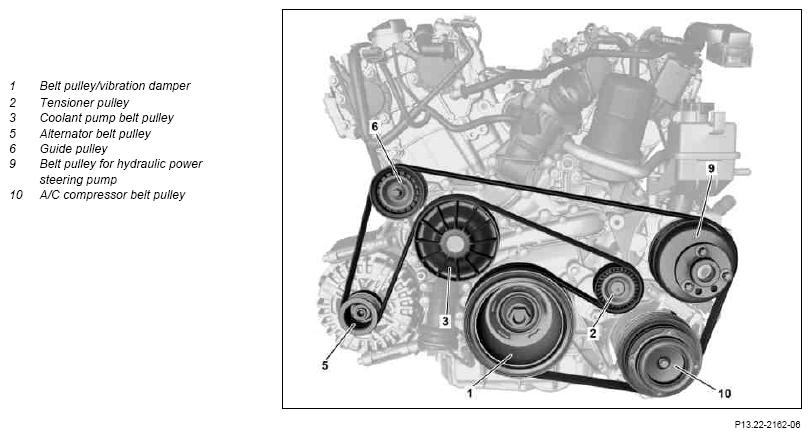

Fig 3: Poly-V Belt Routing Diagram - Engine 276 With Hydraulic Power Steering Pump

G10240906

Courtesy of MERCEDES-BENZ USA

ENGINE 157, 278 with CODE 487 (Active Body Control (ABC))

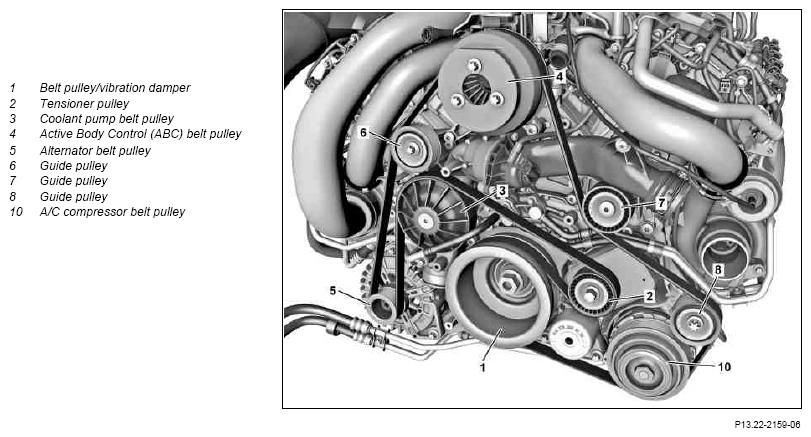

Fig 4: Poly-V Belt Routing Diagram - Engine 157, 278 With Code 487

G10240907

Courtesy of MERCEDES-BENZ USA

ENGINE 157, 278 without CODE 487 (Active Body Control (ABC))

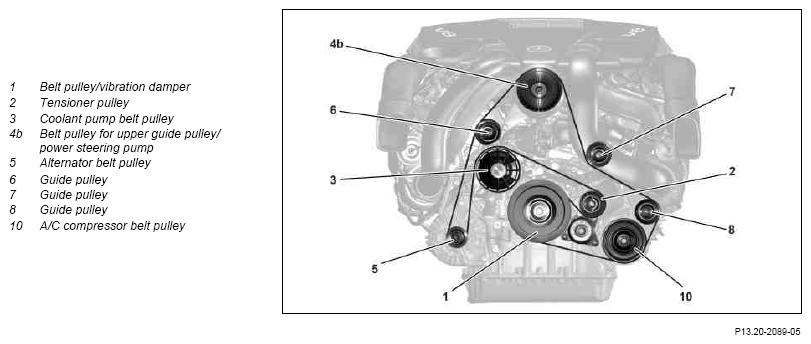

Fig 5: Poly-V Belt Routing Diagram - Engine 157, 278 Without Code 487

G10240908

Courtesy of MERCEDES-BENZ USA

Engine 157, 278 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN)):

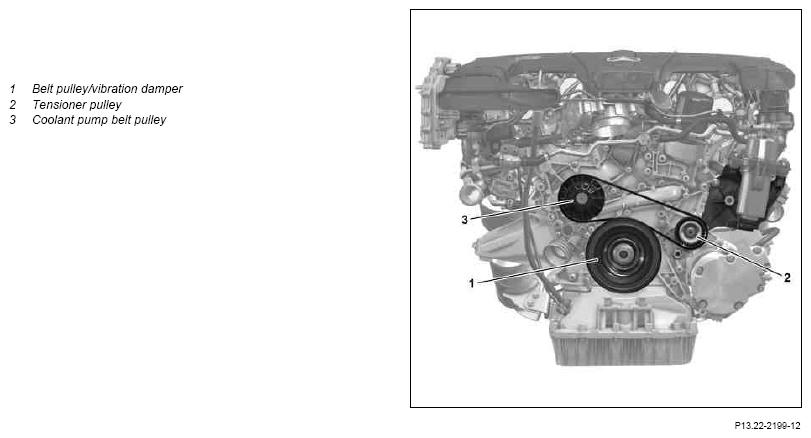

Fig 6: Poly-V Belt Routing Diagram - Engine 157, 278 With Code ME05

G10240909

Courtesy of MERCEDES-BENZ USA

Check installation position of poly-V belt.
