Routing diagram for poly-V belt - AR13.22-P-3902-02CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 172, 204, 207, 212, 218, 221

MODEL 172, 204, 207, 212 (except 212.098/298), 218, 221 with hydraulic steering

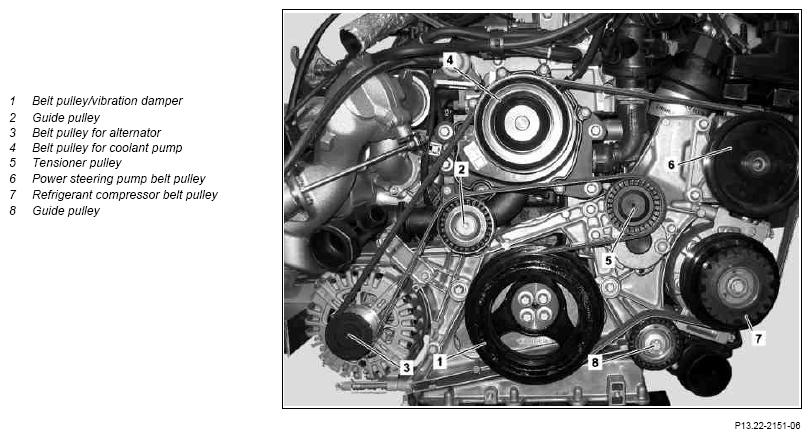

Fig 1: Poly-V Belt Routing Diagram - With Hydraulic Steering

Courtesy of MERCEDES-BENZ USA

MODEL 172, 204, 207, 212 (except 212.098/298), 218, 221 without hydraulic steering

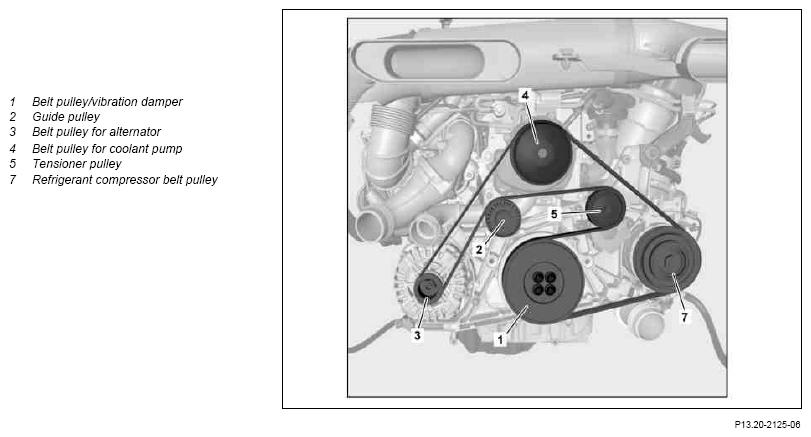

Fig 2: Poly-V Belt Routing Diagram - Without Hydraulic Steering

Courtesy of MERCEDES-BENZ USA

For model 204.9 a tensioner pulley is installed at the same location instead of a belt pulley for the power steering pump (6).

MODEL 212.098/298

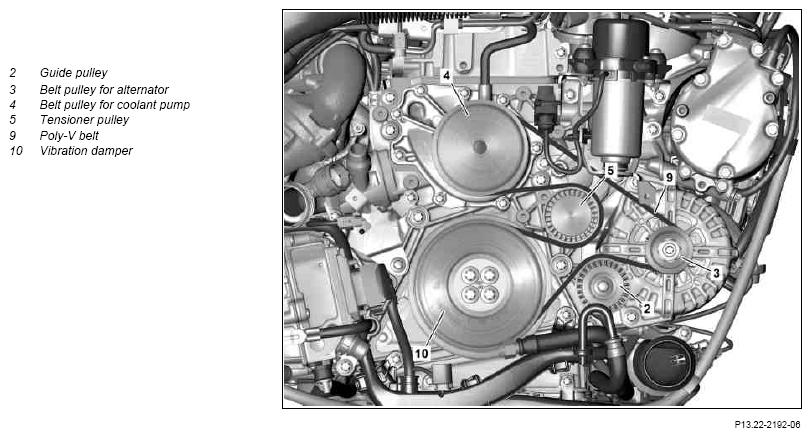

Fig 3: Poly-V Belt Routing Diagram - Shown On Model 212.098/298

Courtesy of MERCEDES-BENZ USA
