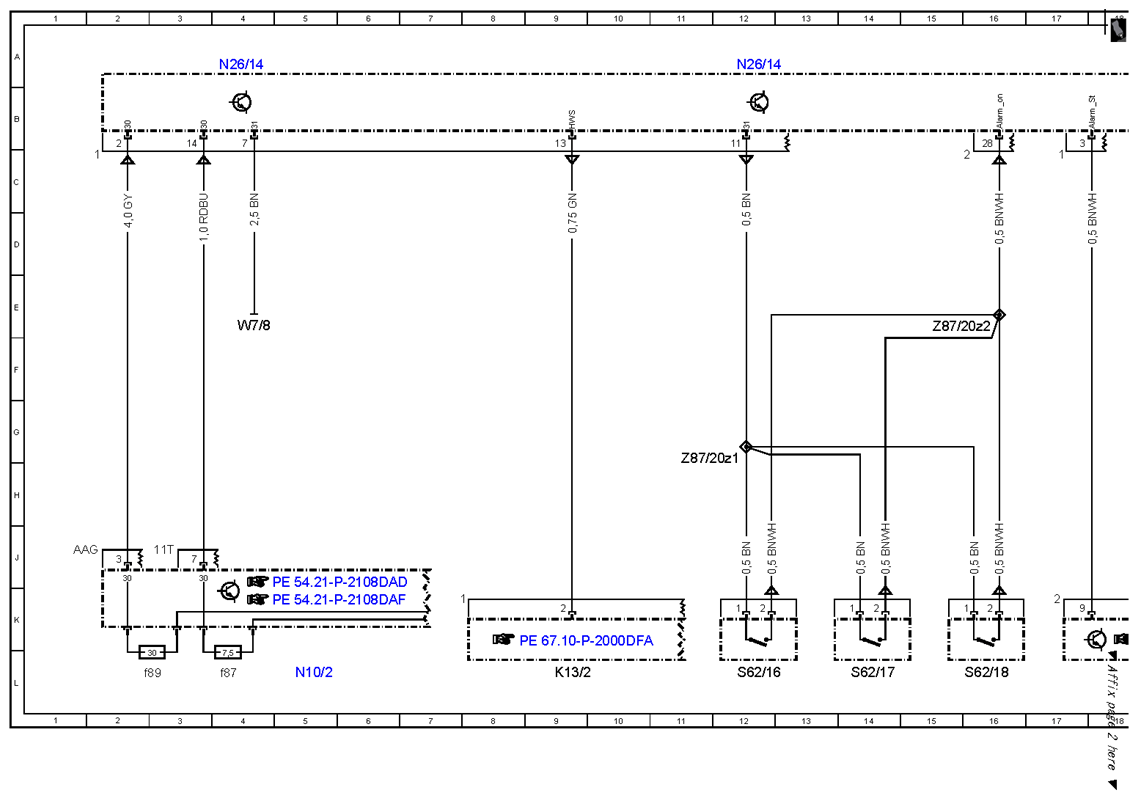

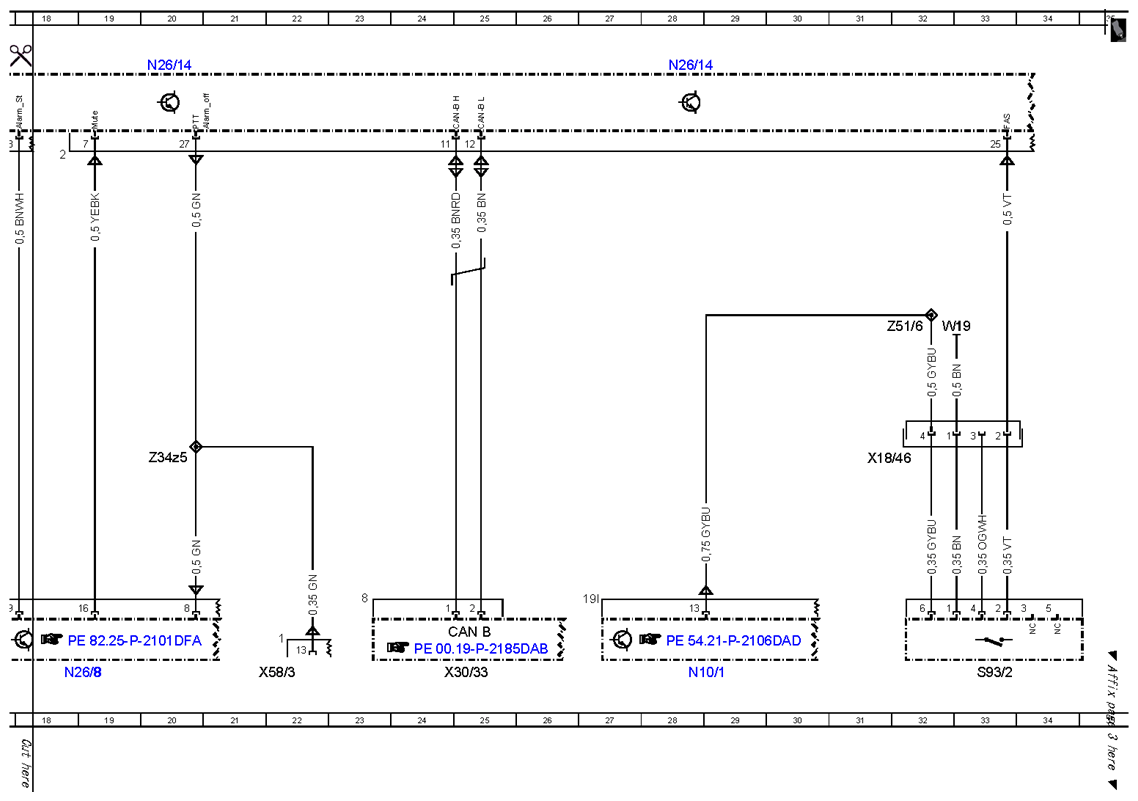

Wiring diagram, special vehicle multifunction control unit (SVMCU (MSS)) - PE54.21-P-2105-97DFA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 with CODE Z04 (Light armoring) Control unit N26/14
| Code: | Designation: | Position: |
|---|---|---|

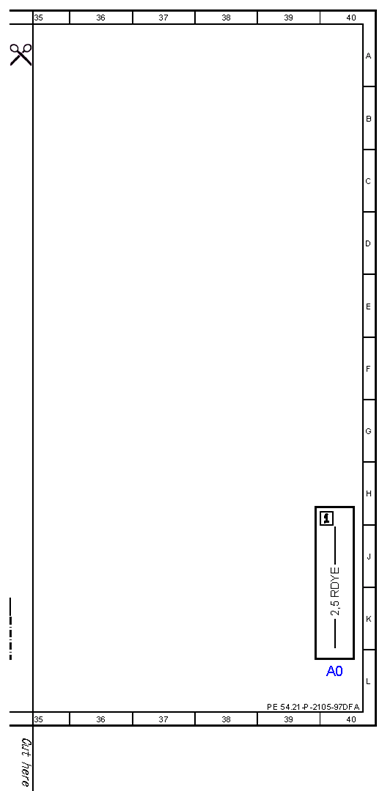

| A0 | Color code key | 40L |
| CAN B | Interior CAN | 25K |
| K13/2 | Heated windshield relay | 9L |
| N10/1 | Front SAM control unit with fuse and relay module | 28L |
| N10/2 | Rear SAM control unit with fuse and relay module | 5L |
| N10/2f87 | Fuse 87 | 4L |
| N10/2f89 | Fuse 89 | 2L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 4A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 12A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 20A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 28A |
| N26/8 | PAS (GAS) control unit | 18L |
| S62/16 | Left footwell emergency alarm system button | 12L |
| S62/17 | Right footwell emergency alarm system button | 14L |
| S62/18 | Rear air vent emergency alarm system button | 16L |
| S93/2 | Two-way radio switch | 33L |
| W19 | Right front seat crossmember ground point | 32E |
| W7/8 | Right wheelhouse trunk ground point | 4E |
| X18/46 | Voice control system electrical connector | 31H |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 25L |
| X58/3 | Microphone separation point | 22L |
| Z34z5 | Connector sleeve (terminal point in wiring harness) | 20G |
| Z51/6 | Circuit 58d vehicle interior connector sleeve | 32E |
| Z87/20z1 | Emergency alarm signal button connector sleeve | 11G |
| Z87/20z2 | Emergency alarm signal button connector sleeve | 15E |
