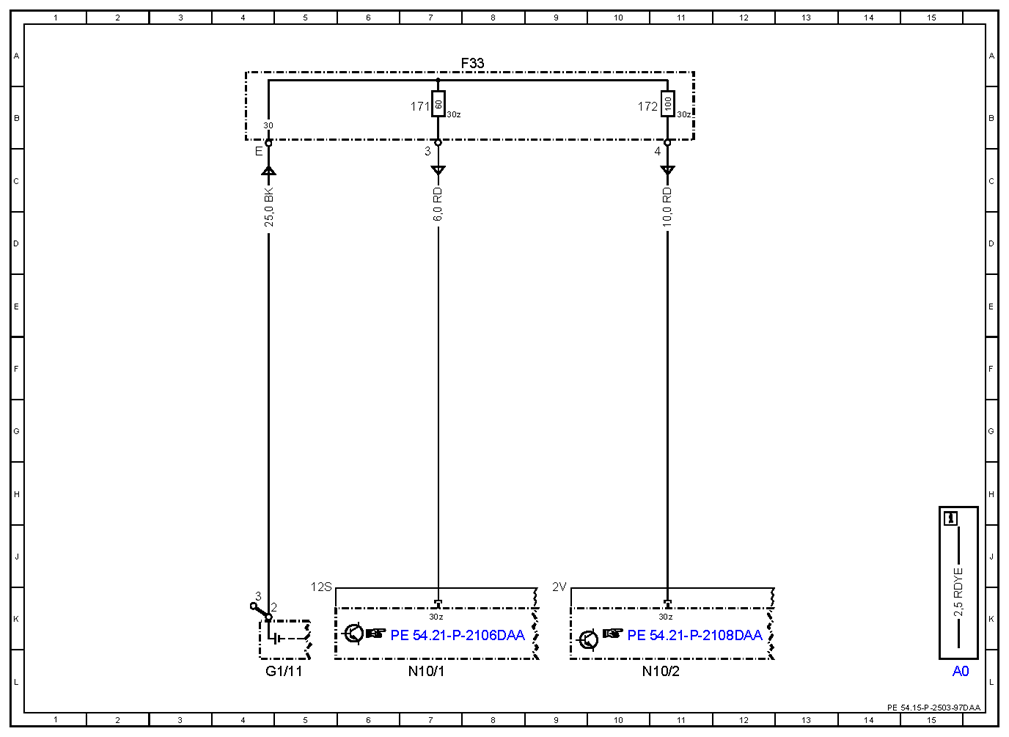

Wiring diagram, rear prefuse box (F33) - PE54.15-P-2503-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| F33 | Rear prefuse box | 8A |
| F33f171 | Prefuse 171 | 7B |
| F33f172 | Prefuse 172 | 11B |
| G1/11 | Rear on-board electrical system battery | 5L |
| N10/1 | Front SAM control unit with fuse and relay module | 7L |
| N10/2 | Rear SAM control unit with fuse and relay module | 11L |
