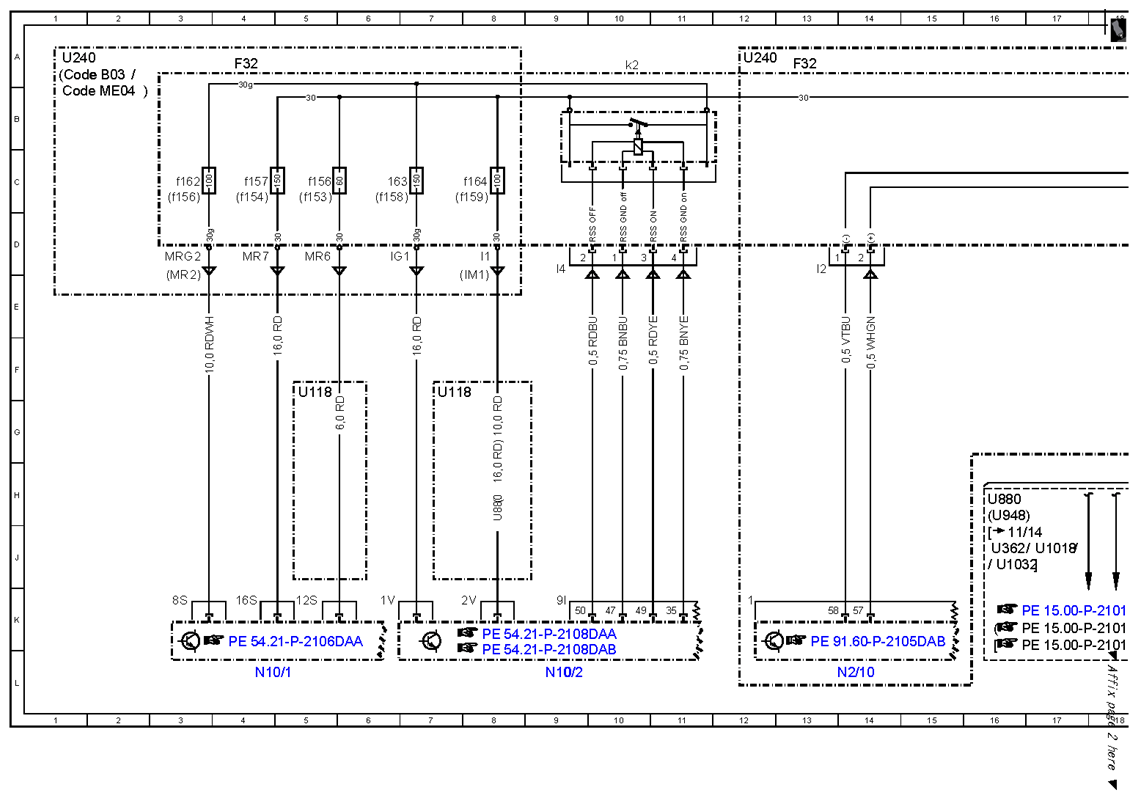

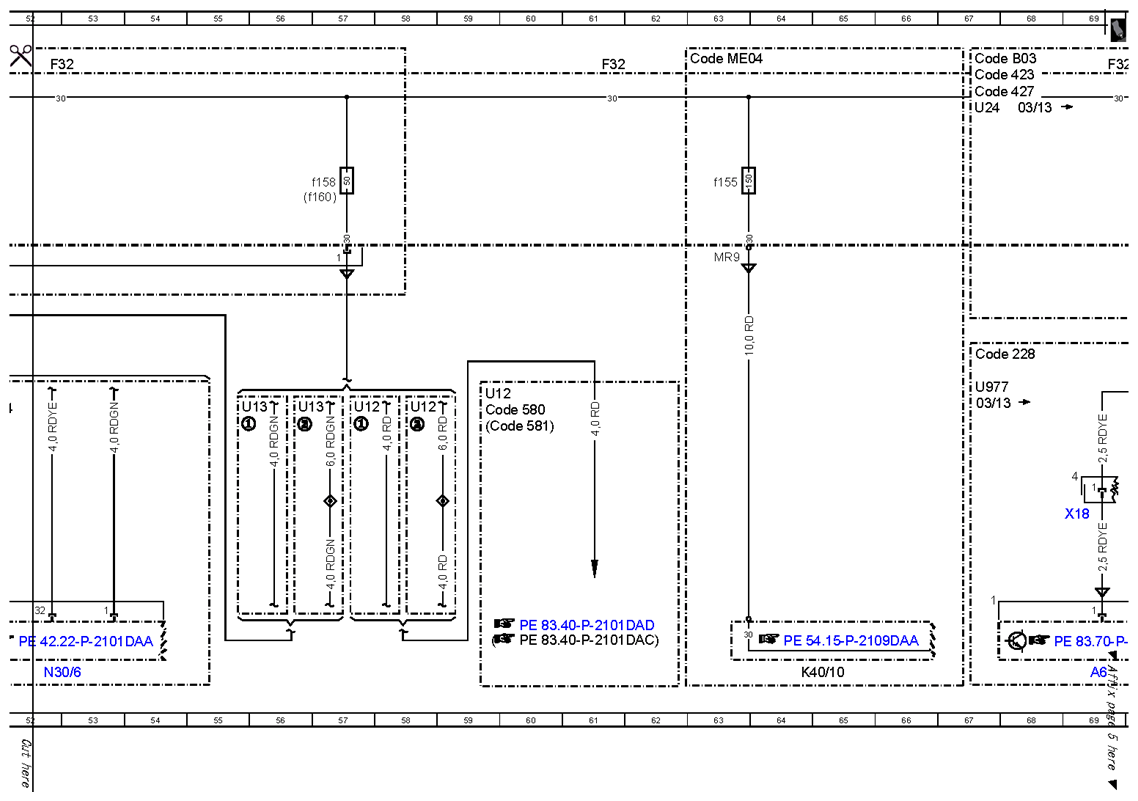

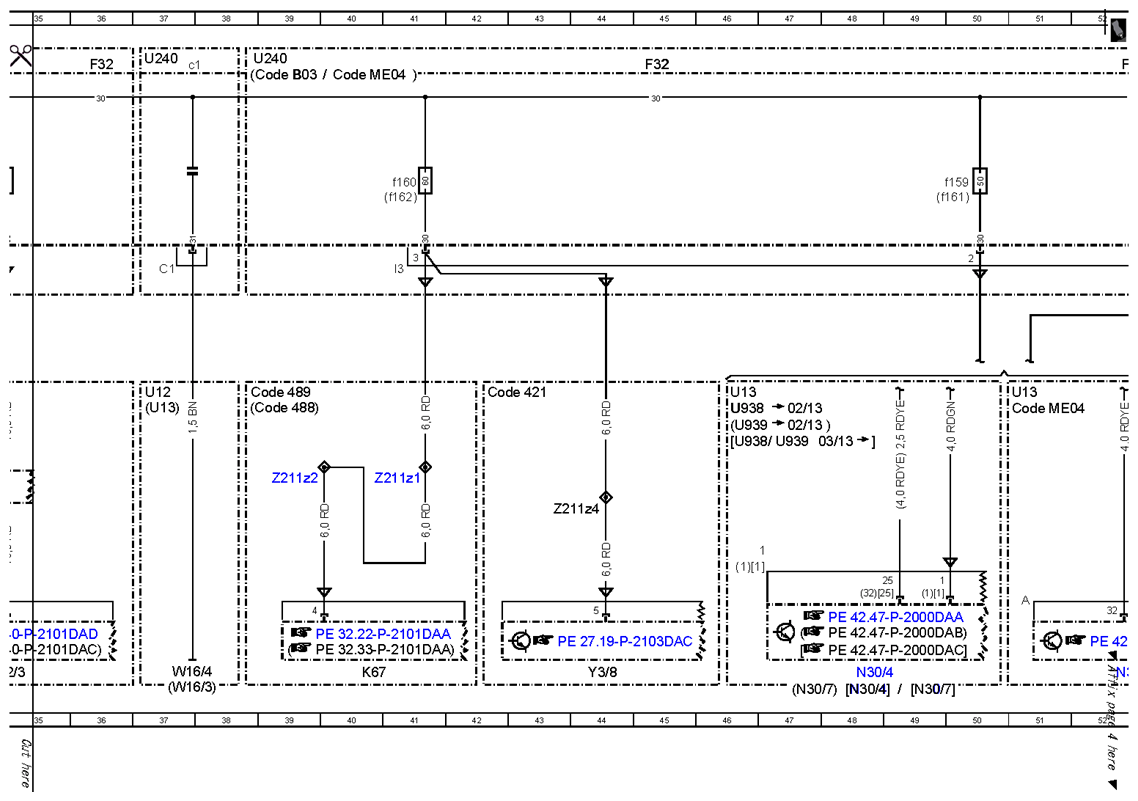

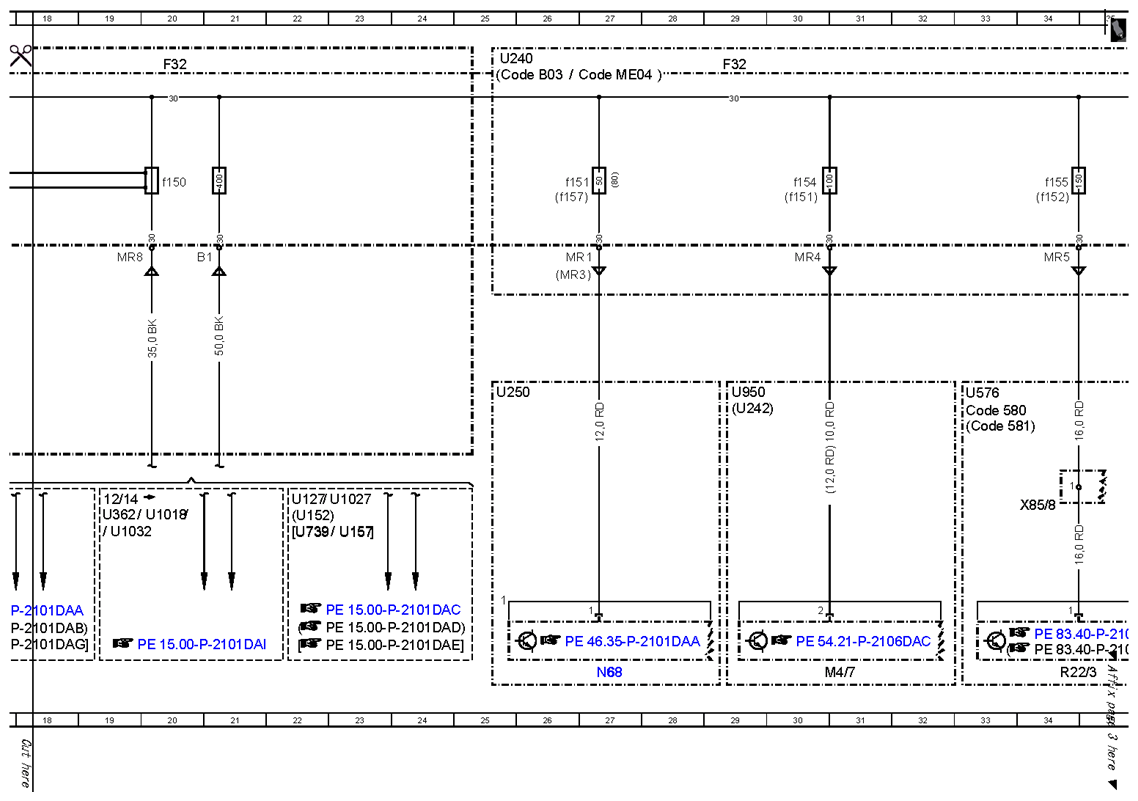

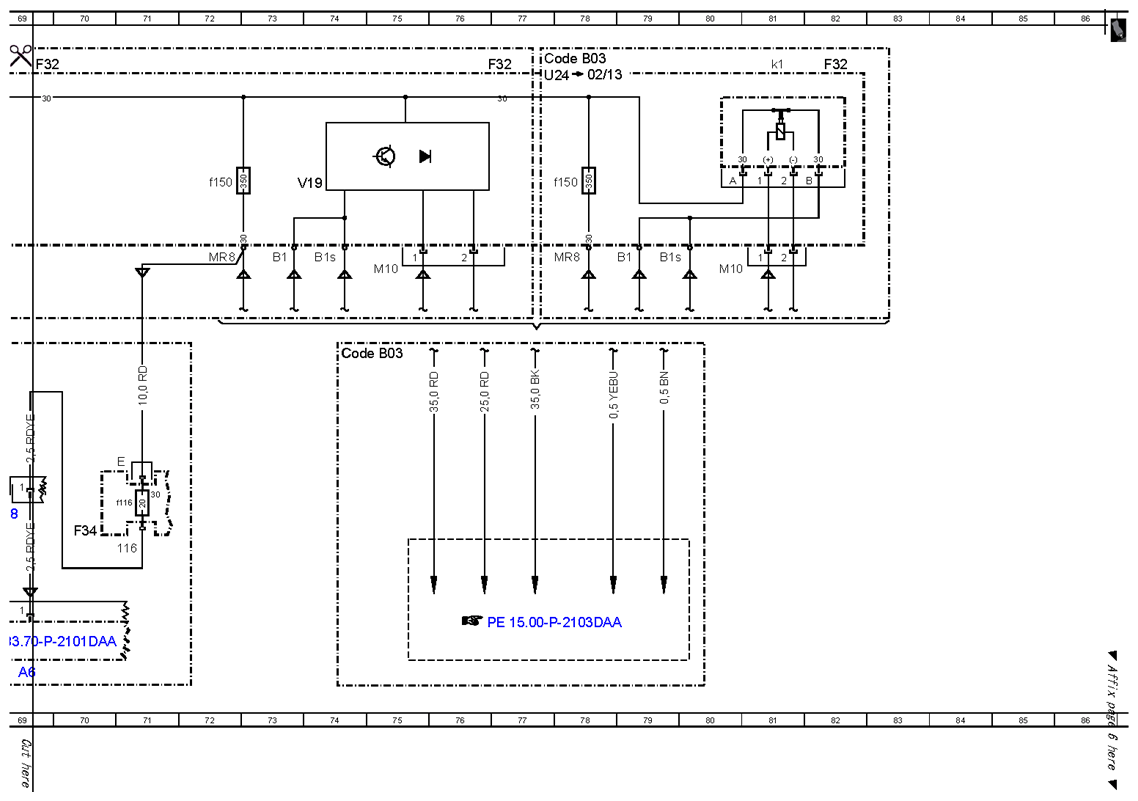

Wiring diagram of front backup fuse box (F32) - PE54.15-P-2502-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Code: | Designation: | Position: |
|---|---|---|

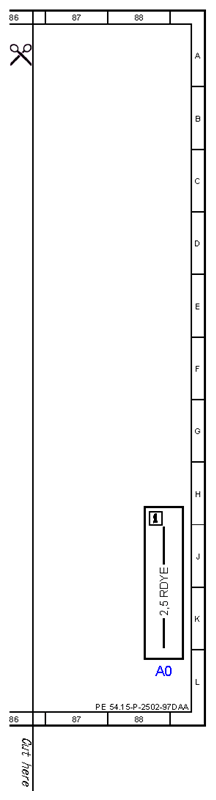

| A0 | Color code key | 88L |
| A6 | Stationary heater unit | 69L |
| Code 228 | Stationary heater | 67F |
| Code 421 | 9-speed automatic transmission | 42F |
| Code 423 | 5-speed automatic transmission | 67A |
| Code 427 | 7-speed automatic transmission | 67B |
| Code 488 | Steel/air suspension | 38G |
| Code 489 | 38F | |
| Code 580 | Automatic air conditioning | 33G |
| Code 580 | Automatic air conditioning | 59G |
| Code 581 | Comfort automatic air conditioning | 33G |
| Code 581 | Comfort automatic air conditioning | 59G |
| Code B03 | ECO start/stop function | 1A |
| Code B03 | ECO start/stop function | 25A |
| Code B03 | ECO start/stop function | 38A |
| Code B03 | ECO start/stop function | 67A |
| Code B03 | ECO start/stop function | 77A |
| Code B03 | ECO start/stop function | 74F |
| Code ME04 | Hybrid drive 20 KW VARIANT | 1B |
| Code ME04 | Hybrid drive 20 KW VARIANT | 26A |
| Code ME04 | Hybrid drive 20 KW VARIANT | 40A |
| Code ME04 | Hybrid drive 20 KW VARIANT | 63A |
| Code ME04 | Hybrid drive 20 KW VARIANT | 51G |
| F32 | Front electrical prefuse box | 4A |
| F32 | Front electrical prefuse box | 13A |
| F32 | Front electrical prefuse box | 20A |
| F32 | Front electrical prefuse box | 29A |
| F32 | Front electrical prefuse box | 45A |
| F32 | Front electrical prefuse box | 69A |
| F32 | Front electrical prefuse box | 53A |
| F32 | Front electrical prefuse box | 36A |
| F32 | Front electrical prefuse box | 61A |
| F32 | Front electrical prefuse box | 77A |
| F32 | Front electrical prefuse box | 82A |
| F32c1 | Interference suppression capacitor | 37A |
| F32f150 | Pyrofuse 150 | 20C |
| F32f150 | Pyrofuse 150 | 72C |
| F32f150 | Pyrofuse 150 | 78C |
| F32f151 | Prefuse 151 | 26C |
| F32f151 | Prefuse 151 | 30C |
| F32f152 | Prefuse 152 | 34C |
| F32f153 | Prefuse 153 | 5C |
| F32f154 | Prefuse 154 | 30C |
| F32f154 | Prefuse 154 | 4C |
| F32f155 | Prefuse 155 | 34C |
| F32f155 | Prefuse 155 | 63C |
| F32f156 | Prefuse 156 | 5C |
| F32f156 | Prefuse 156 | 3C |
| F32f157 | Prefuse 157 | 4C |
| F32f157 | Prefuse 157 | 26C |
| F32f158 | Prefuse 158 | 57C |
| F32f158 | Prefuse 158 | 6C |
| F32f159 | Prefuse 159 | 50C |
| F32f159 | Prefuse 159 | 8C |
| F32f160 | Prefuse 160 | 41C |
| F32f160 | Prefuse 160 | 57C |
| F32f161 | Prefuse 161 | 50C |
| F32f162 | Prefuse 162 | 3C |
| F32f162 | Prefuse 162 | 41C |
| F32f163 | Prefuse 163 | 6C |
| F32f164 | Prefuse 164 | 8C |
| F32k1 | Decoupling relay | 81A |
| F32k2 | Quiescent current cutout relay | 10A |
| F34 | Interior fuse box | 70J |
| F34f116 | Fuse 116 | 71H |
| K40/10 | HYBRID fuse and relay module | 64L |
| K67 | AIRMATIC relay | 40L |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 31L |
| N10/1 | Front SAM control unit with fuse and relay module | 4L |
| N10/2 | Rear SAM control unit with fuse and relay module | 9L |
| N2/10 | Supplemental restraint system control unit | 14L |
| N30/4 | Electronic Stability Program control unit | 48L |
| N30/4 | Electronic Stability Program control unit | 48L |
| N30/6 | Regenerative braking system control unit | 52L |
| N30/7 | Premium Electronic Stability Program control unit | 47L |
| N30/7 | Premium Electronic Stability Program control unit | 49L |
| N68 | Electrical power steering control unit | 27L |
| R22/3 | PTC heater booster | 34L |
| U1018 | Valid for gasoline engine 276 | 17J |
| U1018 | Valid for gasoline engine 276 | 20H |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 23H |
| U1032 | Valid for engine 278 and 157 | 16J |
| U1032 | Valid for engine 278 and 157 | 19J |
| U118 | Valid for front battery | 5F |
| U118 | Valid for front battery | 7F |
| U12 | Valid for left-hand drive vehicles | 37F |
| U12 | Valid for left-hand drive vehicles | 59F |
| U12 | Valid for left-hand drive vehicles | 57G |
| U12 | Valid for left-hand drive vehicles | 58G |
| U127 | Valid for combustion engines 272 and 273 KE | 22H |
| U13 | Valid for right-hand drive vehicles | 37G |
| U13 | Valid for right-hand drive vehicles | 46F |
| U13 | Valid for right-hand drive vehicles | 55G |
| U13 | Valid for right-hand drive vehicles | 56G |
| U13 | Valid for right-hand drive vehicles | 51F |
| U152 | Valid for gasoline engine 156 | 22H |
| U157 | Valid for combustion engine 272 DE | 23J |
| U24 | Valid for manual transmission | 67B |
| U24 | Valid for manual transmission | 77A |
| U240 | Valid for all except ECO start/stop function | 12A |
| U240 | Valid for all except ECO start/stop function | 1A |
| U240 | Valid for all except ECO start/stop function | 25A |
| U240 | Valid for all except ECO start/stop function | 37A |
| U240 | Valid for all except ECO start/stop function | 38A |
| U242 | Valid for fan motor 800 W | 29G |
| U250 | Valid for electric power steering | 25F |
| U362 | Valid for gasoline engine 274 | 19H |
| U362 | Valid for gasoline engine 274 | 16J |
| U576 | Valid for heater booster | 33F |
| U739 | Valid for gasoline engine 271 DE | 22J |
| U880 | Valid for diesel engine 642 | 8H |
| U880 | Valid for diesel engine 642 | 16H |
| U938 | Valid for ESP Basic | 46G |
| U938 | Valid for ESP Basic | 46G |
| U939 | Valid for ESP Premium | 46G |
| U939 | Valid for ESP Premium | 47G |
| U948 | Valid for diesel engine 651 | 16H |
| U950 | Valid for fan motor 650 W | 29F |
| U977 | Not valid for mild hybrid drive | 67F |
| V19 | ECO start/stop function diode | 74C |
| W16/3 | Left major assembly compartment ground point | 37L |
| W16/4 | Right wheelhouse ground point | 37L |
| X18 | Vehicle interior and harness for taillamp electrical connector | 69H |
| X85/8 | PTC heater booster electrical connector | 34H |
| Y3/8 | Fully integrated transmission control unit | 44L |
| Z211z1 | Circuit 30 supply connector sleeve | 41H |
| Z211z2 | Circuit 30 supply connector sleeve | 39H |
| Z211z4 | Circuit 30 supply connector sleeve | 44H |
