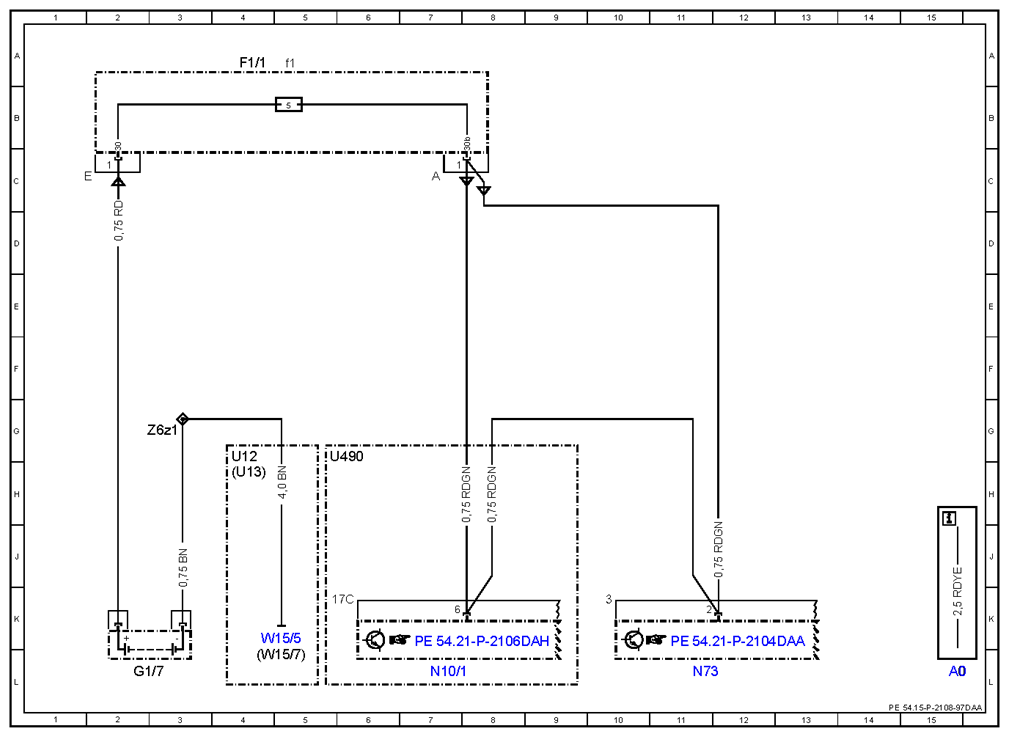

Wiring diagram for fuse box (F1/1) - PE54.15-P-2108-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| F1/1 | Fuse box | 4A |
| F1/1f1 | Prefuse 1 | 5A |
| G1/7 | Additional battery | 2L |
| N10/1 | Front SAM control unit with fuse and relay module | 7L |
| N73 | Electronic ignition switch control unit | 11L |
| U12 | Valid for left-hand drive vehicles | 4G |
| U13 | Valid for right-hand drive vehicles | 4H |
| U490 | Valid for 7-speed automatic transmission | 5G |
| W15/5 | Left front footwell ground point | 4K |
| W15/7 | Right front footwell ground point | 4L |
| Z6z1 | Circuit 31 connector sleeve | 3G |
