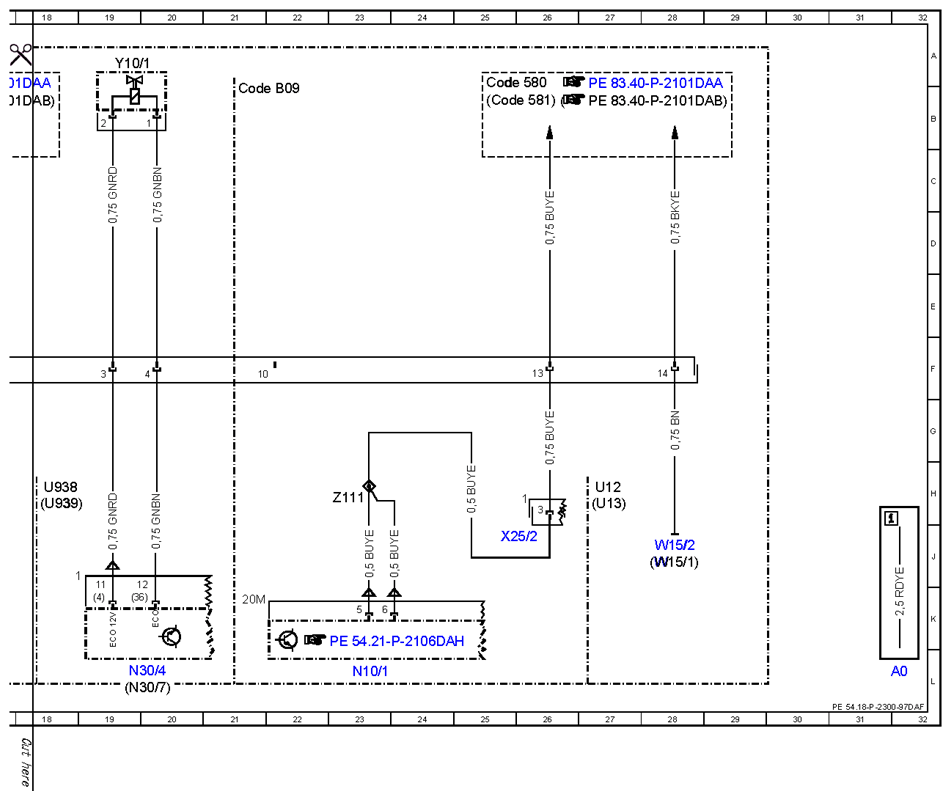

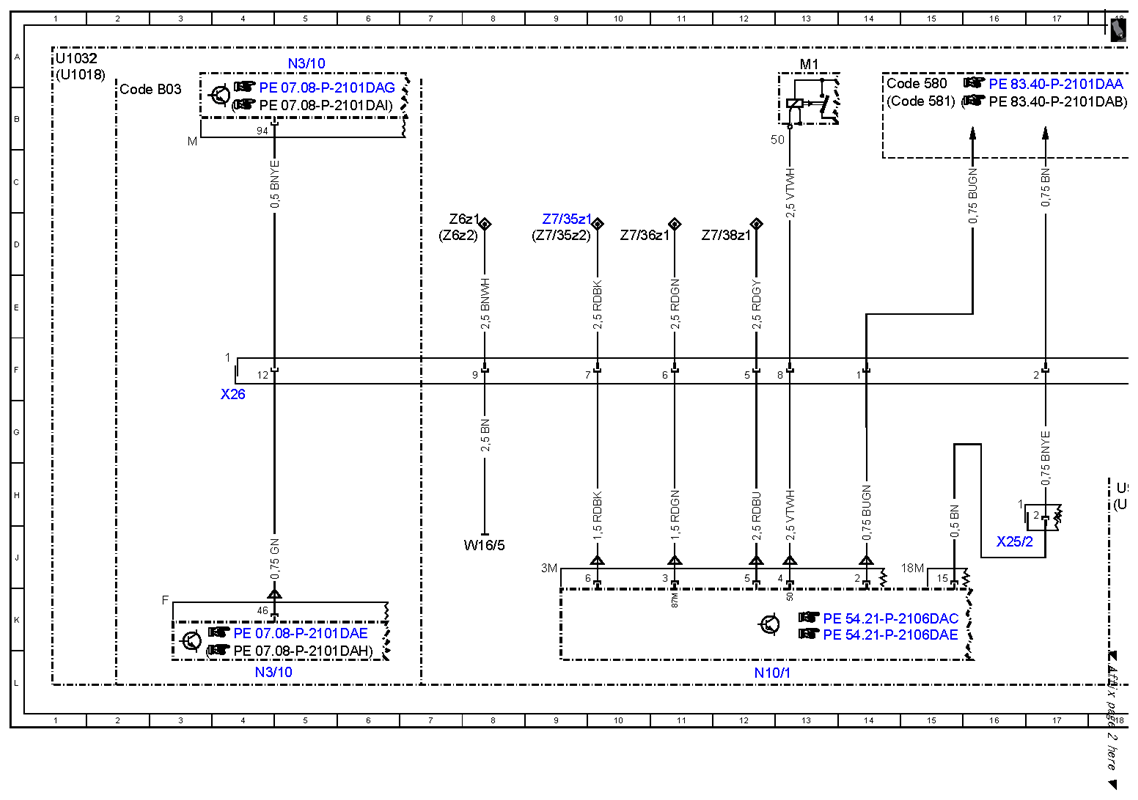

Connector separation point wiring diagram - PE54.18-P-2300-97DAF
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 X26 (M 157, M 276, M 278)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| Code 580 | Automatic air conditioning | 14B |
| Code 580 | Automatic air conditioning | 25B |
| Code 581 | Comfort automatic air conditioning | 14B |
| Code 581 | Comfort automatic air conditioning | 25B |
| Code B03 | ECO start/stop function | 2B |
| Code B09 | Refrigerant compressor with magnetic clutch | 21B |
| M1 | Starter | 13A |
| N10/1 | Front SAM control unit with fuse and relay module | 12L |
| N10/1 | Front SAM control unit with fuse and relay module | 23L |
| N3/10 | ME-SFI [ME] control unit | 5A |
| N3/10 | ME-SFI [ME] control unit | 4L |
| N30/4 | Electronic Stability Program control unit | 19L |
| N30/7 | Premium Electronic Stability Program control unit | 19L |
| U1018 | Valid for gasoline engine 276 | 1A |
| U1032 | Valid for engine 278 and 157 | 1A |
| U12 | Valid for left-hand drive vehicles | 27H |
| U13 | Valid for right-hand drive vehicles | 27H |
| U938 | Valid for ESP Basic | 18H |
| U939 | Valid for ESP Premium | 18H |
| W15/1 | Right footwell ground point | 28J |
| W15/2 | Left footwell ground point | 28J |
| W16/5 | Left major assembly compartment electronics ground point | 8J |
| X25/2 | Engine compartment/interior electrical connector | 16J |
| X25/2 | Engine compartment/interior electrical connector | 26J |
| X26 | Interior and engine wiring harness electrical connector | 4F |
| Y10/1 | Power steering pump quantity control valve | 19A |
| Z111 | Air conditioning connector sleeve 1 | 23H |
| Z6z1 | Circuit 31 connector sleeve | 8D |
| Z6z2 | Circuit 31 connector sleeve | 7D |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 9D |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 9D |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 10D |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 12D |
