Retrofit head-up display wiring harness - AZ54.30-P-0002-01EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.### 1#

Fig 1: Head-Up Display Wiring Harness And Connector

Courtesy of MERCEDES-BENZ USA

Routing diagram

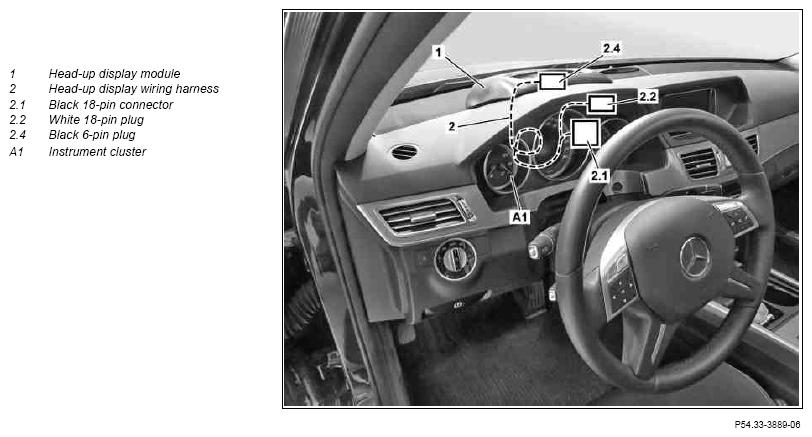

Fig 2: Head-Up Display Wiring Harness Routing Diagram

Courtesy of MERCEDES-BENZ USA

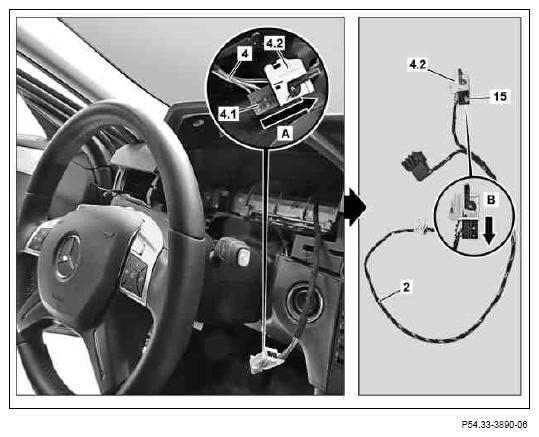

Remove black, 18-pin plug insert (4.1) from white connector housing (4.2) of instrument cluster wiring harness (4).
Install black, 18-pin plug insert (15) of head-up display wiring harness (2) into white connector housing (4.2).

Fig 3: Removing Instrument Cluster Wiring Harness Connectors
Courtesy of MERCEDES-BENZ USA

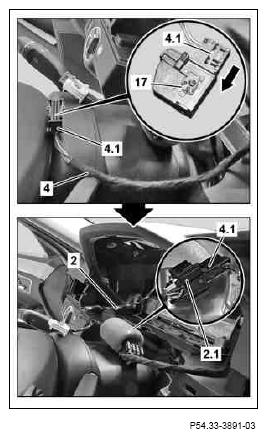

Install black 18-pin plug insert (4.1) of instrument cluster wiring harness (4) in the black connector housing (17) (arrow).
The black connector housing (17) is part of the package contents.
Connect black, 18-pin plug (4.1) of instrument cluster wiring harness (4) to black, 18-pin connector (2.1) of Y-connection for head-up display wiring harness (2).
Guide head-up display wiring harness into the instrument panel through the opening created earlier.
Insert white, 18-pin plug of head-up display wiring harness into instrument cluster.

Fig 4: Removing Instrument Cluster Wiring Harness From Connector
Courtesy of MERCEDES-BENZ USA
