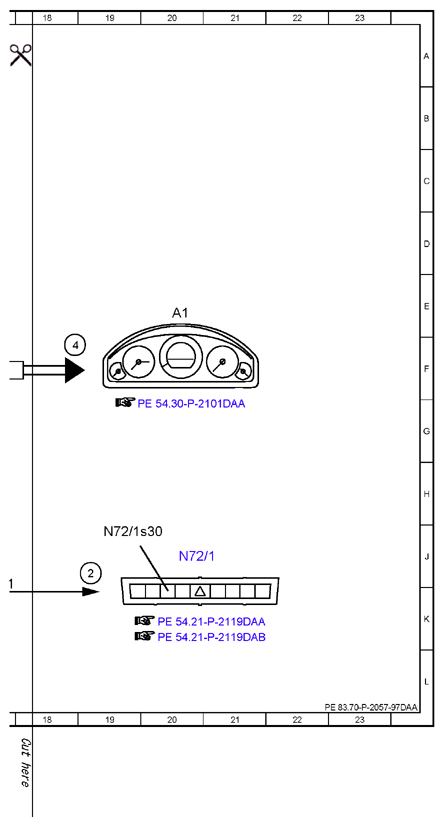

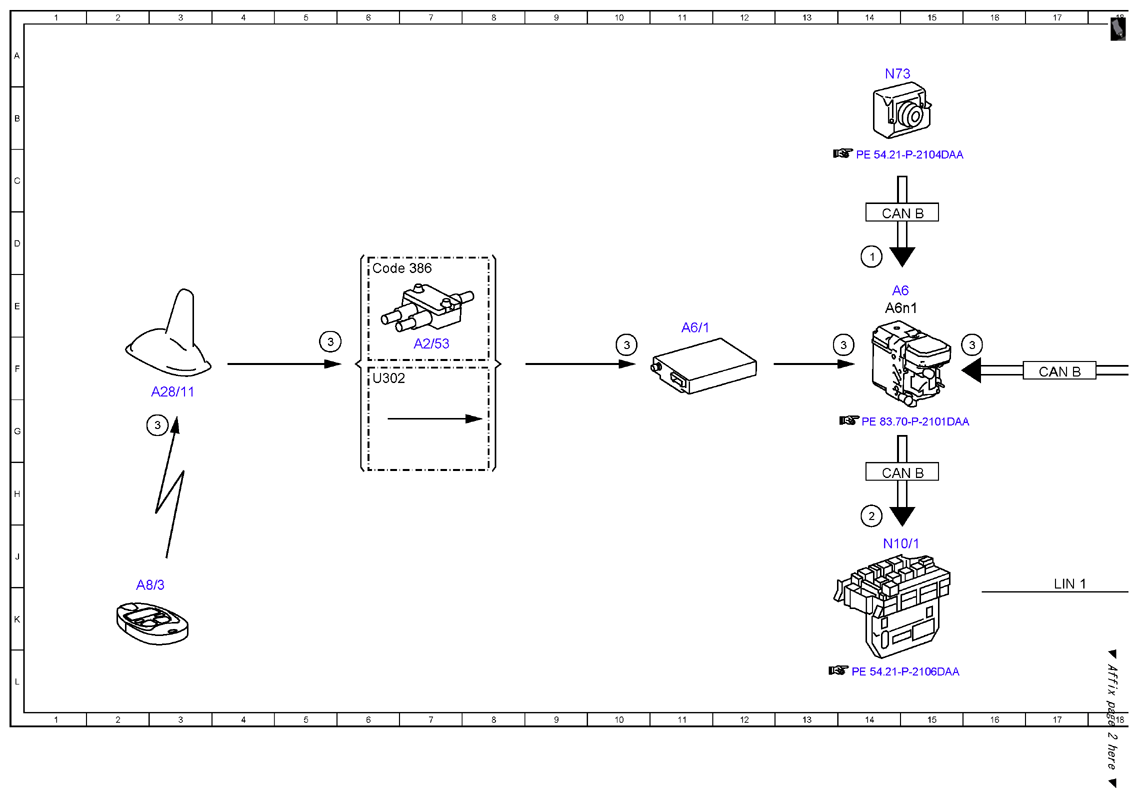

Electrical function schematic, programming departure time - PE83.70-P-2057-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 228 (Auxiliary heater)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 14D |
| 2 | Stationary heater status indication, request | 19J |
| 2 | Stationary heater status indication, request | 14H |
| 3 | Departure time setting/activation, signal | 10F |
| 3 | Departure time setting/activation, signal | 14F |
| 3 | Departure time setting/activation, signal | 16F |
| 3 | Departure time setting/activation, signal | 5F |
| 3 | Departure time setting/activation, signal | 10E |
| 4 | Activated departure time, message | 18F |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 7F |
| A28/11 | Multifunction antenna | 3F |
| A6 | Stationary heater unit | 14E |
| A6/1 | Stationary heater radio remote control receiver | 11E |
| A6n1 | Stationary heater control unit | 14E |
| A8/3 | Stationary heater radio remote control transmitter | 2K |
| CAN B | Interior CAN | 17F |
| CAN B | Interior CAN | 14D |
| CAN B | Interior CAN | 14H |
| Code 386 | Mobile phone preinstallation with universal interface | 6D |
| LIN 1 | Instrument panel LIN | 17K |
| N10/1 | Front SAM control unit with fuse and relay module | 14J |
| N72/1 | Upper control panel control unit | 20J |
| N72/1s30 | Stationary heater button | 19J |
| N73 | Electronic ignition switch control unit | 14A |
| U302 | Valid without comfort telephony | 6F |
