Retrofit steering wheel heater wiring harness - AN46.11-P-0001-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0/2, 212.1## 1#, 218.3##/9## 1#

Connection scheme

Fig 1: Steering Wheel Heater Control Unit Connection Schematic Diagram
G10239922Courtesy of MERCEDES-BENZ USA

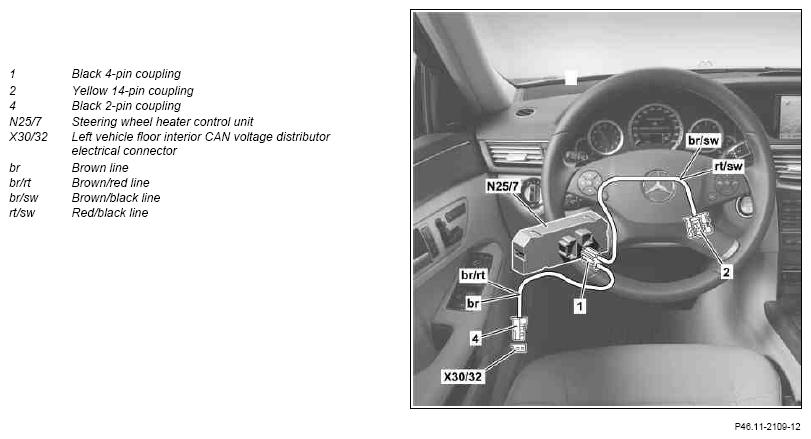

Routing diagram shown on model 212

Fig 2: Steering Wheel Heater Control Unit Routing Diagram - Shown On Model 212
G10239923Courtesy of MERCEDES-BENZ USA
  1. Cut off brown lines (BN) and brown/red lines (BN/RD) (twisted together) as shown and wrap with insulation tape.

    IMPORTANT Only one brown line (br) and brown/red line (br/rt), twisted together, are required. The brown lines (br) and brown/red lines (br/rt) are connected to each other under the insulation by connector sleeves.

    Fig 3: Identifying Brown Lines (BN) And Brown/Red Lines (BN/RD)
    G10239924Courtesy of MERCEDES-BENZ USA
  2. Install contact spring (5.1) of brown/red line (BN/RD) in contact cavity "1" of black coupling (2-pin) (4) included in package contents.
  3. Install contact spring (5.2) of brown line (BN) in contact cavity "2" of black coupling (2-pin) (4) included in package contents.
  4. Lock retainer (arrow A) of black coupling (2-pin) (4).

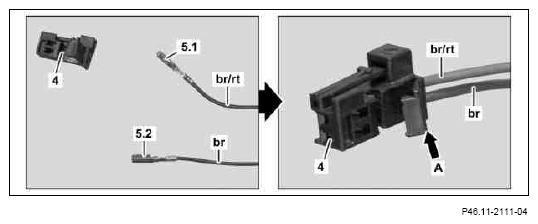

    Fig 4: Locating Black Coupling Lock Retainer
    G10239925Courtesy of MERCEDES-BENZ USA
  5. Open cover (6.1) on front driver footwell cable duct (6).
  6. Connect black coupling (2-pin) (4) to the electrical connection for left vehicle floor interior CAN potential distributor (X30/32).
  7. Route brown line and brown/red line towards the front out of the driver footwell cable duct (6).
  8. Close cover (6.1) on front driver footwell cable duct (6).

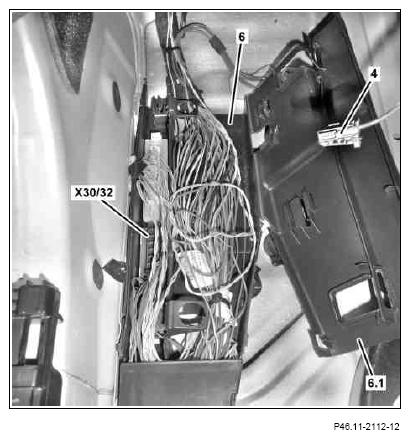

    Fig 5: Driver Footwell Cable Duct And Black Coupling
    G10239926Courtesy of MERCEDES-BENZ USA
  9. Loop any excess length of the brown line (br) and brown/red line (br/rt) and fix in place with cable ties (10).
  10. Wrap felt tape (9) around brown line (BN) and brown/red line (BN/RD) for a length of 250 mm starting at black coupling (4-pin) (1).
  11. Wrap felt tape (9) around power supply wiring harness previously installed for a length of 250 mm starting at black coupling (2-pin) (8).
  12. Route brown line (br), brown/red line (br/rt) and power supply wiring harness along vehicle wiring harness (7) to the footwell on driver side and fix in place with cable ties (11).

    IMPORTANT The parts wrapped with felt tape (9) must not be fixed to vehicle wiring harness (7).

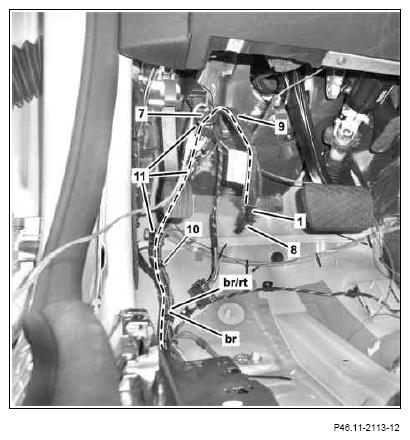

    Fig 6: Felt Tape, Vehicle Wiring Harness And Cable Ties
    G10239927Courtesy of MERCEDES-BENZ USA
  13. Wrap felt tape (12) around the brown/black line (br/sw) and red/black line (rt/sw), as shown, over a length of 800 mm.

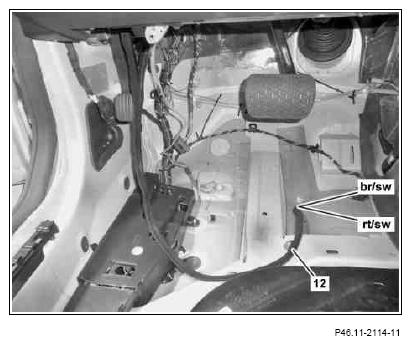

    Fig 7: Felt Tape, Brown/Black Line (BR/SW) And Red/Black Line (RT/SW)
    G10239928Courtesy of MERCEDES-BENZ USA
  14. Route brown/black line (br/sw) and red/black line (rt/sw) of steering wheel heater wiring harness along vehicle wiring harness (7) to yellow coupling (14-pin) of the wiring harness (14).

    NOTES Routing must take place on the vehicle wiring harness (7) above the steering column tube (13). Otherwise, the brown/black line (br/sw) and the red/black line (rt/sw) can wrap around the steering column tube (13) during steering maneuvers.

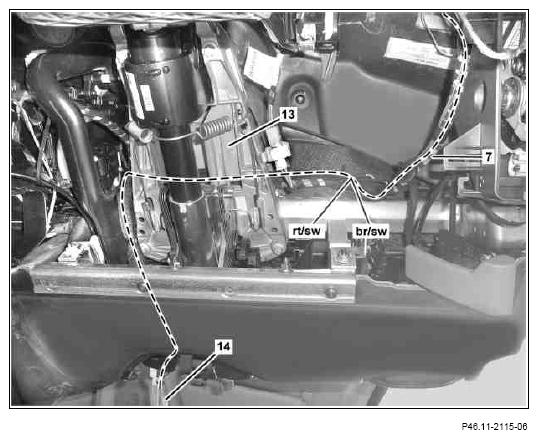

    Fig 8: Vehicle Wiring Harness And Steering Column Tube
    G10239929Courtesy of MERCEDES-BENZ USA
  15. Fix brown/black line (br/sw) and red/black line (rt/sw) of steering wheel heater wiring harness to vehicle wiring harness (7) with cable ties.

    IMPORTANT Fix brown/black line (br/sw) and red/black line (rt/sw) in place in such a way that no loops are formed. Loop any excess length in the footwell on driver side.

  16. Remove fuse (2.1) from the yellow 14-pin connector (2).
  17. Install red/black line (rt/sw) in slot "6" of the yellow 14- pin connector (2).
  18. Install brown/black line (br/sw) in slot "7" of the yellow 14-pin connector (2).
  19. Install fuse (2.1) in yellow coupling (14-pin) (2).

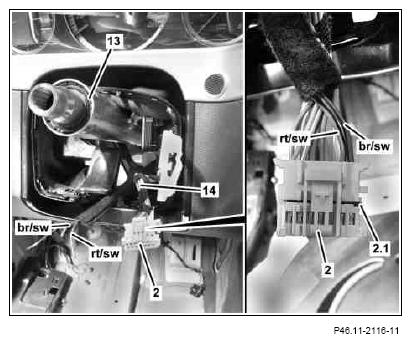

    Fig 9: Yellow 14-Pin Connector, Wiring Harness And Steering Column Tube
    G10239930Courtesy of MERCEDES-BENZ USA
  20. Fix the brown/black line (br/sw) and red/black line (rt/sw) with cable tie to wiring harness (14).

    IMPORTANT Fix the brown/black line (br/sw) and red/black line (rt/sw) to steering column tube (13) without making contact.
