Retrofit steering wheel heater control unit - AN46.11-P-0001-03EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.###/0##/1## 1#, 218.3##/9## 1#

Cut out insulation mat (2) along perforation and remove section (2.1) from cover under left instrument panel (1).

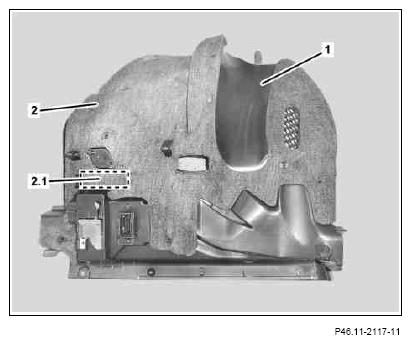

Fig 1: Insulation Mat And Left Instrument Panel Cover
Courtesy of MERCEDES-BENZ USA
Clip steering wheel heater control unit (N25/7) into supports on cover under left instrument panel (1).
Place cover under left instrument panel (1) into driver footwell.
Connect black, 2-pin coupling (4) of wiring harness for power supply to steering wheel heater control unit (N25/7).
Connect black, 4-pin coupling (3) of wiring harness for steering wheel heater to steering wheel heater control unit (N25/7).
The cover below the left instrument panel (1) is fitted later on.

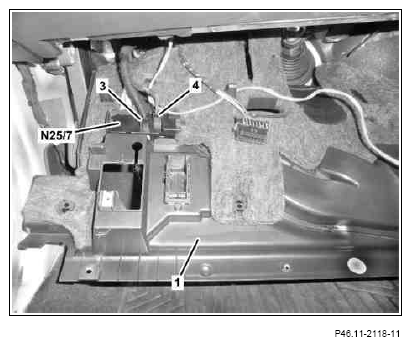

Fig 2: Left Instrument Panel And Wiring Harness Couplings
