Retrofit leather or wood/leather steering wheel - AN46.10-P-1003EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## (except 212.007/035/041/074/075/076/077/092/095/098) 1#, 212.1## (except 212.195) 1#, 212.2## (except 212.207/274/275/276/277/292/298) 1# with CODE 427 (7-speed automatic transmission) without CODE 443 (Heated steering wheel) without CODE 953 (Standard equipment) without CODE P25 (Blue EFFICIENCY Edition) without CODE P34 (Exclusive package) without CODE Z04 (High protection B4) without CODE Z05 (B5 armoring on special protection version) without CODE Z06 (B6 armoring) without CODE Z07 (Top protection)

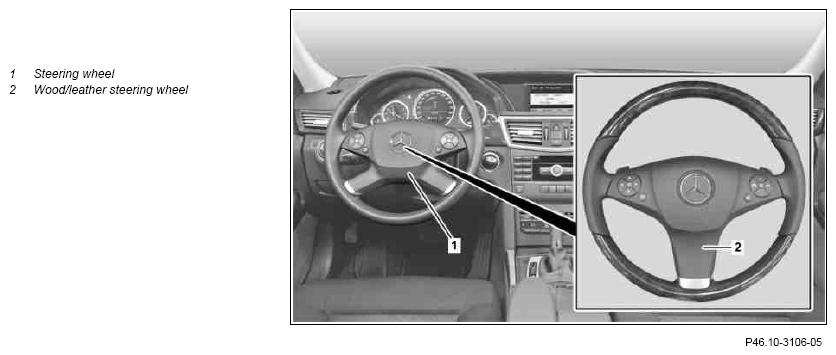

Fig 1: Retrofit Leather Or Wood/Leather Steering Wheel Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove steering wheel (1)
			AR46.10-P-0100EW
		The removed steering wheel (1) is no longer required. Use new wood/leather steering wheel (2) or leather steering wheel.	AR46.10-P-0100EW
2	Install in the reverse order
3	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add: CODE Y95 (designo wood/leather steering wheel) or CODE 289 (wood/leather steering wheel) or CODE 277 (AMG 3-spoke, sport leather steering wheel) or CODE 314 (Sport leather steering wheel with trim element insert)
4	Document retrofitted equipment through VeDoc	Attach "Steering wheel retrofitted in leather or wood/leather steering wheel version as per AN46.10-P-1003EW " note under field organization text for design group 46.
5	Perform function test

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG99	Wood/leather steering wheel (note equipment color)	1
KG99	Leather steering wheel (note equipment color)	1
