Retrofit AMG steering wheel - AZ46.10-P-1001EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of 3/1/11 with CODE 802 (Model year 2012)
MODEL 212 up to 2/28/11 with CODE 801 (Model year 2011)
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Remove | |||
| 1 | Print and complete form "Except from EC type approval" * For Germany only | ||
| Steering wheel, certificate | MODEL 212.0 up to 2/28/11 with CODE 801 (Model year 2011) |
OF46.10-P-1000-01H | |
| Steering wheel, certificate | MODEL 212.2 up to 2/28/11 with CODE 801 (Model year 2011) |
OF46.10-P-1000-01G | |
| Steering wheel, certificate | MODEL 212.0 as of 3/1/11 with CODE 802 (Model year 2012) |
OF46.10-P-1000-01I | |
| Steering wheel, certificate | MODEL 212.2 as of 3/1/11 with CODE 802 (Model year 2012) |
OF46.10-P-1000-01J | |
| 2 | Remove steering wheel | ||
| AR46.10-P-0100EW | |||
| Install | |||
| 3 | Install steering wheel | ||
| AR46.10-P-0100EW | |||
| 4 | Document retrofitted equipment via vehicle documentation (VeDoc) |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|

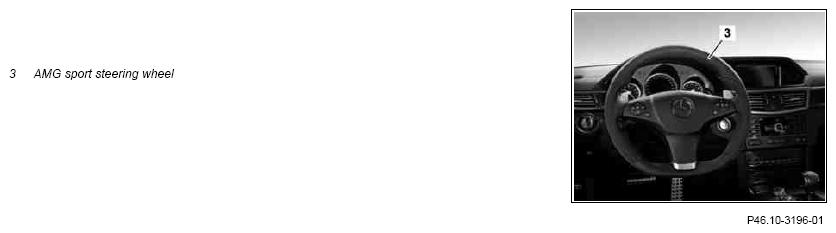

| B6 603 74 01 | AMG sport steering wheel (3) for models 212.0/2 up to and including model year 2011, code (801), with code (428) Steering wheel shift paddles and code (277) Sport steering wheel | 1 |
| A 207 860 40 02 | Airbag unit (must be ordered separately, not included in parts kit) | upon need |

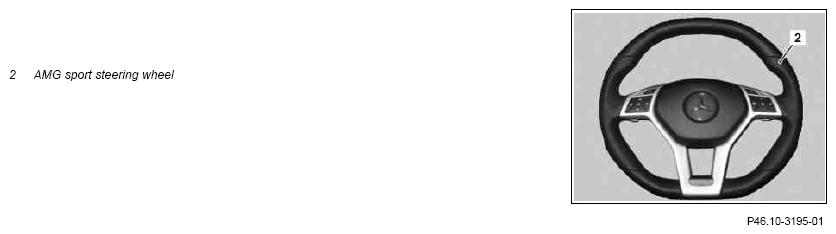

| A 172 460 48 03 | AMG sport steering wheel (2) for model 212.0/2 as of model year 2012 code (802), with code (442) Comfort multifunction steering wheel (12-buttons) and code (423) 5-speed automatic transmission (NAG), or code (427) 7-speed automatic transmission | 1 |
| A 172 460 49 03 | AMG sport steering wheel (2) for model 212.0/2 as of model year 2012 code (802), with code (442) Comfort multifunction steering wheel (12-buttons) and code (423) 5-speed automatic transmission (NAG), or code (427) 7-speed automatic transmission and code (238) Active Lane Keeping Assist, or code (476) Automatic Lane Detection | 1 |
| A 172 860 16 02 | Airbag unit (must be ordered separately, not included in parts kit) | upon need |

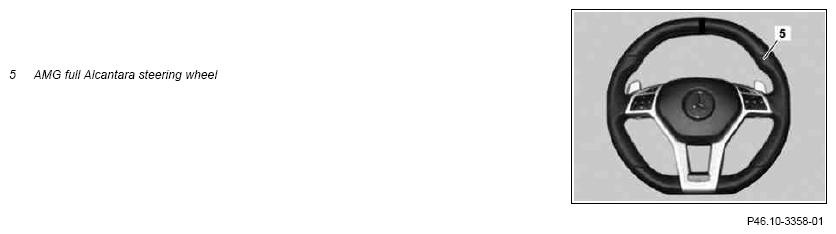

| A 172 460 99 03 | AMG full Alcantara steering wheel (5) for model 212.0/2 with code (442) Comfort multifunction steering wheel, automatic transmission and steering wheel shift paddles; as of code (804) Model year 2014 | 1 |
| A 172 460 00 18 | AMG full Alcantara steering wheel (5) for model 212.0/2 with code (238) Active Lane Keeping Assist, or code (476) Automatic lane recognition and code (442) Comfort multifunction steering wheel, automatic transmission and steering wheel shift paddles; as of code (804) Model year 2014 | 1 |
| A 218 860 28 02 | Airbag unit (must be ordered separately, not included in parts kit) | upon need |
