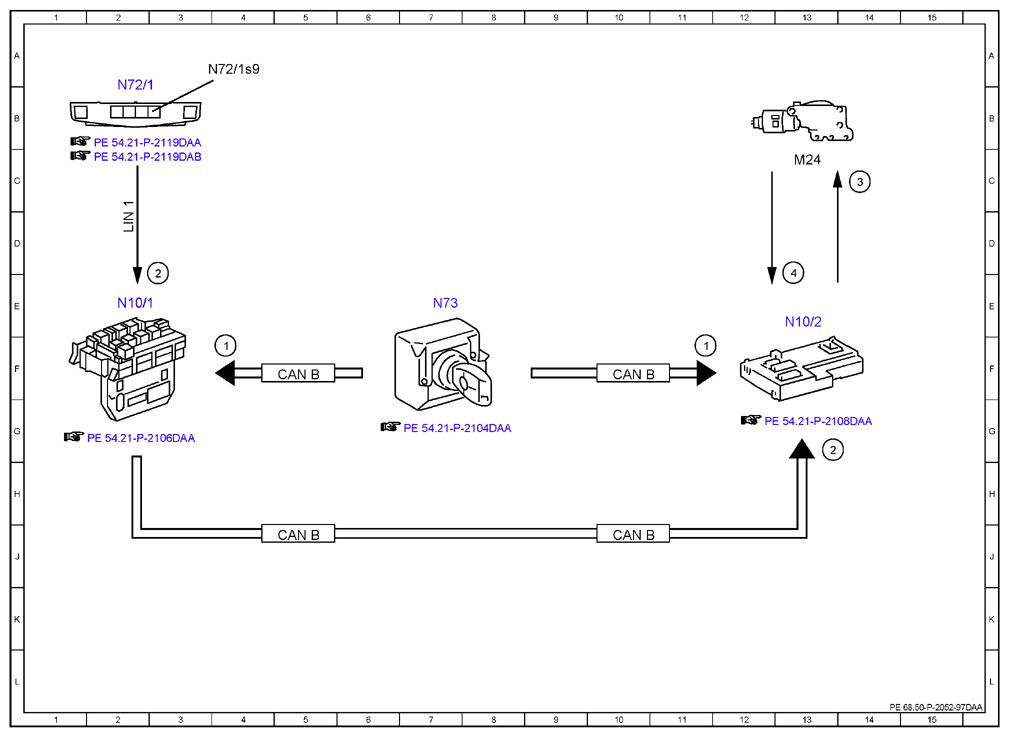

Electrical function schematic for roller sun blind - PE68.50-P-2052-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 540 (Electric roller blind for rear window)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 4F |
| 1 | Circuit 15, status | 11F |
| 2 | ESP®/ASR OFF warning lamp, status | 3E |
| 2 | ESP®/ASR OFF warning lamp, status | 13G |
| 3 | Rear window roller sun blind motor, actuation | 14C |
| 4 | Rear window roller sun blind motor Hall sensor, signal | 13E |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 10J |
| CAN B | Interior CAN | 5J |
| LIN 1 | Instrument panel LIN | 2D |
| M24 | Rear window roller sun blind motor | 13C |
| N10/1 | Front SAM control unit with fuse and relay module | 2E |
| N10/2 | Rear SAM control unit with fuse and relay module | 13E |
| N72/1 | Upper control panel control unit | 2B |
| N72/1s9 | Rear window roller sun blind button | 3A |
| N73 | Electronic ignition switch control unit | 7E |
