Remove/install lock cylinder on glove compartment lock - AR68.10-P-1250W

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 172.4, 204, 205, 207, 212, 218

Shown on model 172.4

Fig 1: Lock Cylinder On Glove Compartment Remove/Install Components - Shown On Model 172.4 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

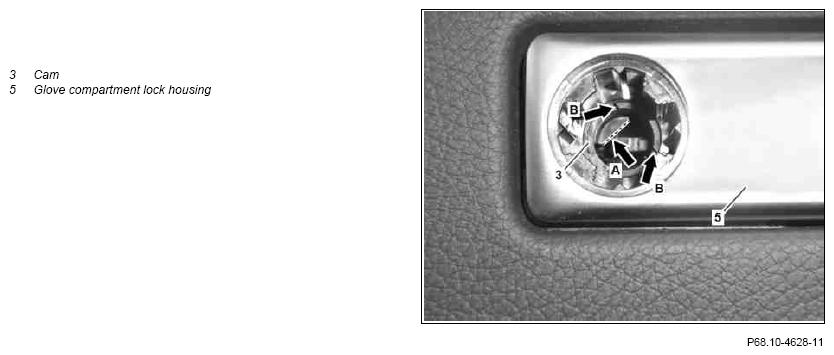

Fig 2: Lock Cylinder On Glove Compartment Remove/Install Components - Shown On Model 172.4 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Insert emergency key (4) into lock cylinder (1) and move to 45° position	Turn emergency key (4) approx. 45° clockwise to 45° position, see figure.
2	Pull lock cylinder (1) and emergency key (4) out of glove compartment lock housing (5)	Hold glove box lock housing (5).
	Check
3	Check position of edge (arrow A) on cam (3) in glove box lock housing (5), if necessary adjust at edges (arrow B)	The cam (3) can be turned at the edges (arrow B). Do not press on cam (3) in axial direction. The cam (3) can be pressed out from the glove box lock housing (5). The edge (arrow A) of the cam (3) must be at approx. 45° as shown in the figure. On right-hand drive vehicles the positions of the edges (arrow A and B) are turned 180° as shown in figure.
	Install
4	Insert lock cylinder (1) into glove box lock housing (5) in 45° position using emergency key (4)	Lock cylinder (1) should arrest noticeably.
5	Pull emergency key (4) out of lock cylinder (1)
