Retrofit cup holder - AN68.20-P-0002EWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0## (except 212.074/075/076/077/092/094/095) 1#, 212.2## (except 212.274/275/276/277/292/298) 1# without CODE 279 (Electronic gear selector)
| Remove | |||

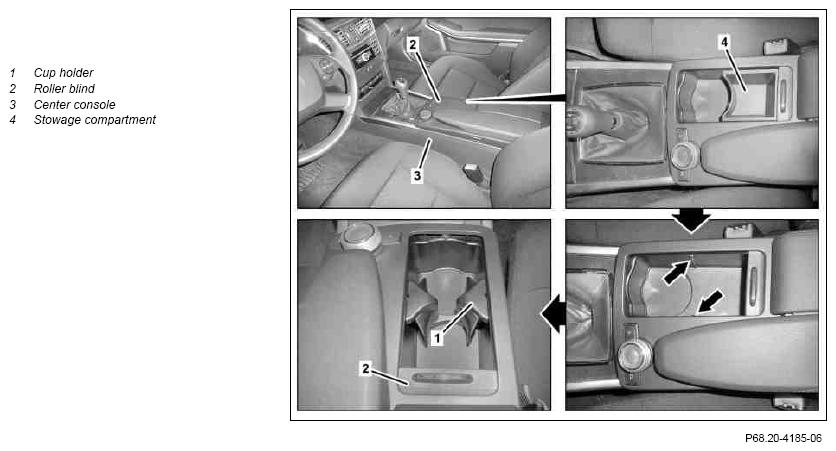

| 1 | Slide roller blind (2) of stowage compartment into center console (3) toward rear | ||
| 2 | Remove stowage compartment (4) from stowage compartment in center console (3) | ||
| Install | |||
| 3 | Position cup holder (1) above guides (arrows) | ||
| 4 | Press cup holder (1) downwards until it latches in place audibly | ||
| 5 | Close roller blind (2) of stowage compartment in center console (3) | ||
| 6 | Enter special equipment on the vehicle data card and the online vehicle data card | ||
| 7 | Document retrofitted equipment via vehicle documentation (VeDoc) |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG98 (siehe EPC) | Cup holder | 1 |
