Retrofit cup holder - AN68.20-P-0002EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0## (except 212.074/075/076/077/092/094/095) 1#, 212.2## (except 212.274/275/276/277/292/298) 1# with CODE 279 (Electronic gear selector)
| Install | |||

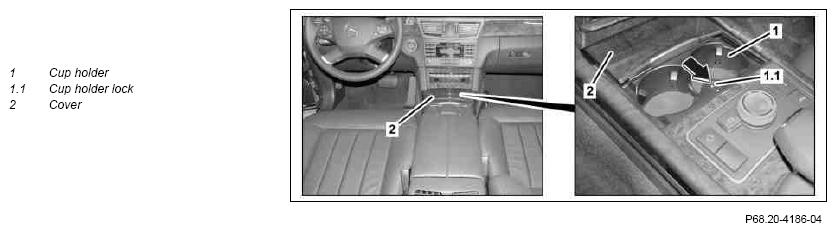

| 1 | Open cover (2) on front stowage compartment in center console | ||
| 2 | Insert cup holder (1) into front stowage compartment in center console | ||
| 3 | Push cup holder (1.1) in direction of arrow and lock cup holder (1) | ||
| 4 | Close cover (2) of front stowage compartment in center console | ||
| 5 | Enter special equipment on the vehicle data card and the online vehicle data card | ||
| 6 | Document retrofitted equipment via vehicle documentation (VeDoc) |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG98 (siehe EPC) | Cup holder | 1 |
