Detach ring gear - AR28.10-P-1001-02SYZ

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 205, 207, 212, 216, 217, 218, 221, 222 with TRANSMISSION 722.96

MODEL 212, 217, 218, 222 with TRANSMISSION 722.97

Fig 1: Identifying Extraction Tool (722 589 01 33 00)

Courtesy of MERCEDES-BENZ USA

The pulling device is a tool kit and consists of six individual parts.

Fig 2: Pulling Device Tool Kit

Courtesy of MERCEDES-BENZ USA

WIS Service Media

wsm://03 201408 01

Insert and screw on mounting bolt (05) in the intermediate shaft (14a).
Attach half-shell (01) to intermediate shaft (14a).
Insert threaded union (03) into the half-shell (01).
Position cutout (a) in the threaded union (03) so that it can be pushed over the parallel pin (b).
Fit pressure screw (06) to mounting bolt (05).

Fig 3: Fitting Pressure Screw To Mounting Bolt
Courtesy of MERCEDES-BENZ USA
Attach half-shell (02) to intermediate shaft (14a) and threaded union (03).
Push sleeve (04) over the half-shells (01, 02).
Detach ring gear (14); to do this, screw in pressure screw (06).

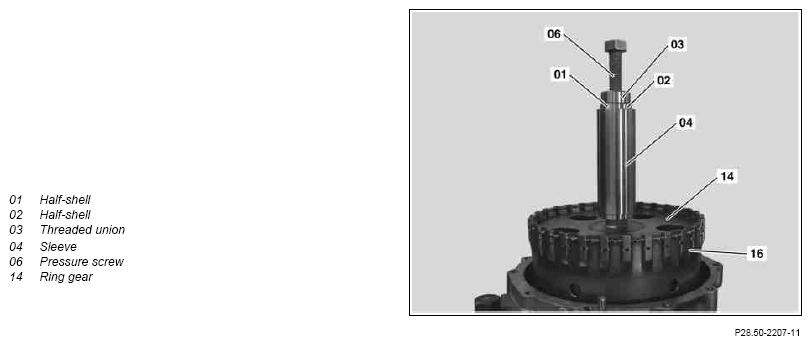

Fig 4: Attaching Half-Shell To Intermediate Shaft And Threaded Union
Courtesy of MERCEDES-BENZ USA
