Automatically regulated all-wheel drive (4MATIC), location of components - GF28.00-P-0001-01AV

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 with TRANSMISSION 722.960 /962 /963 /964 /965 as of Model Year 2009 /AEJ 08

MODEL 204.9 with TRANSMISSION 722.960 /962 /964 /965

MODEL 216 with TRANSMISSION 722.961 as of Model Year 2009 /AEJ 08

MODEL 212 with TRANSMISSION 722.960 /961 /962

MODEL 221 with TRANSMISSION 722.960 /961 /962 as of Model Year 2009 /AEJ 08

MODEL 204.2 with TRANSMISSION 722.962 /965 as of Model Year 2009 /AEJ 08

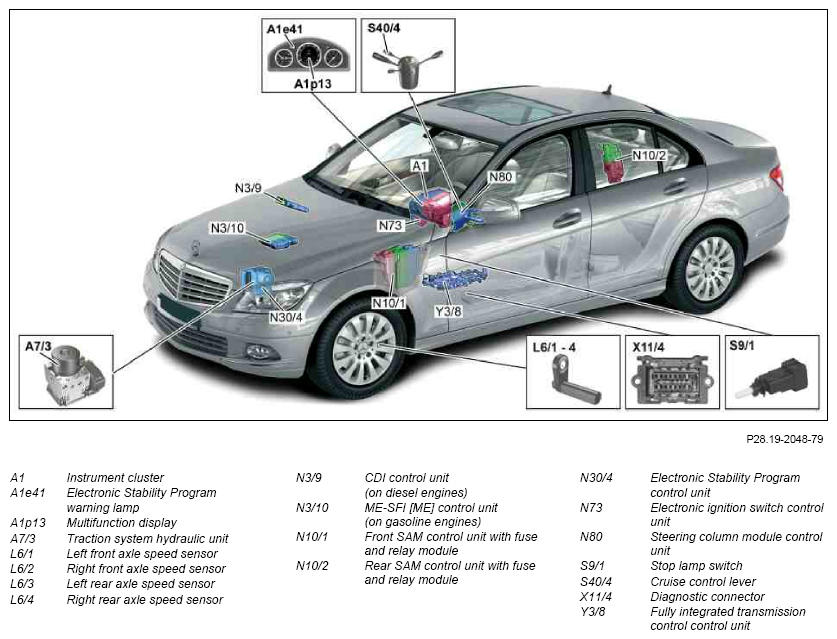

Illustrated on model 204.0

Fig 1: 4MATIC Component Locations - Shown On Model 204.0
G10050045Courtesy of MERCEDES-BENZ USA

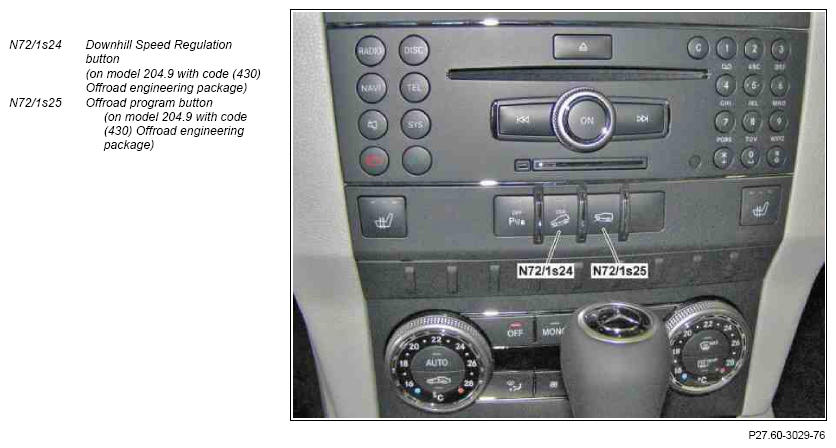

View, upper control panel, model 204

Fig 2: Upper Control Panel - Shown On Model 204
G10050046Courtesy of MERCEDES-BENZ USA

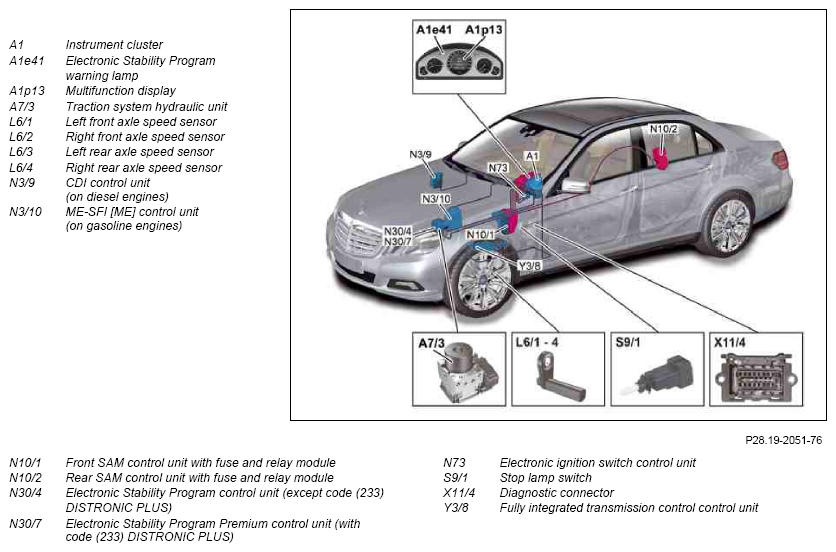

Illustrated on model 212.0

Fig 3: 4MATIC Component Locations - Shown On Model 212.0
G10050047Courtesy of MERCEDES-BENZ USA

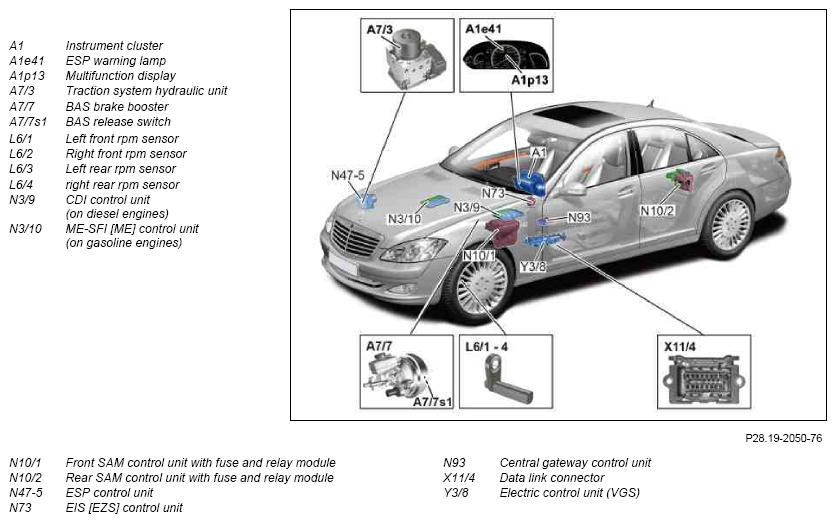

Shown on model 221.0

Fig 4: 4MATIC Component Locations - Shown On Model 221.0
G10050048Courtesy of MERCEDES-BENZ USA

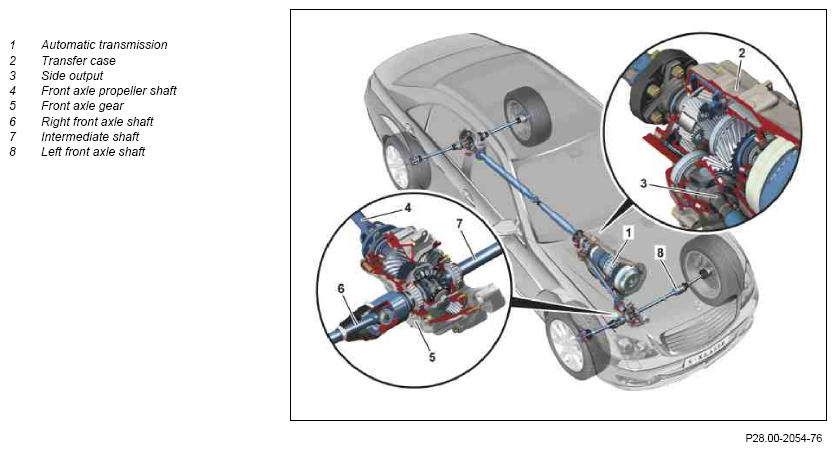

Shown on model 221

Fig 5: 4MATIC Component Locations - Shown On Model 221
G10050049Courtesy of MERCEDES-BENZ USA
