Automatically regulated all-wheel drive (4MATIC) torque distribution - GF28.00-P-0001-02AV
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 with TRANSMISSION 722.960 /962 /963 /964 /965 as of Model Year 2009 /AEJ 08
MODEL 204.2 with TRANSMISSION 722.962 /965 as of Model Year 2009 /AEJ 08
MODEL 204.9 with TRANSMISSION 722.960 /962 /964 /965
MODEL 212 with TRANSMISSION 722.960 /961 /962
MODEL 216 with TRANSMISSION 722.961 as of Model Year 2009 /AEJ 08
MODEL 221 with TRANSMISSION 722.960 /961 /962 as of Model Year 2009 /AEJ 08

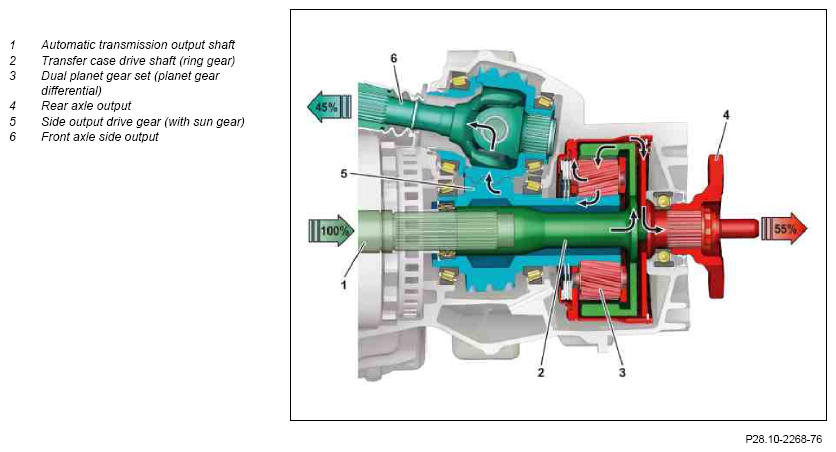

Torque distribution in transfer case
The double planet gear set (3) acts as a planet gear differential between the front and rear axle via which the engine torque is distributed.
The gear ratio is designed so that 55% of the engine torque is transmitted to the rear axle and 45% is transmitted to the front axle.
