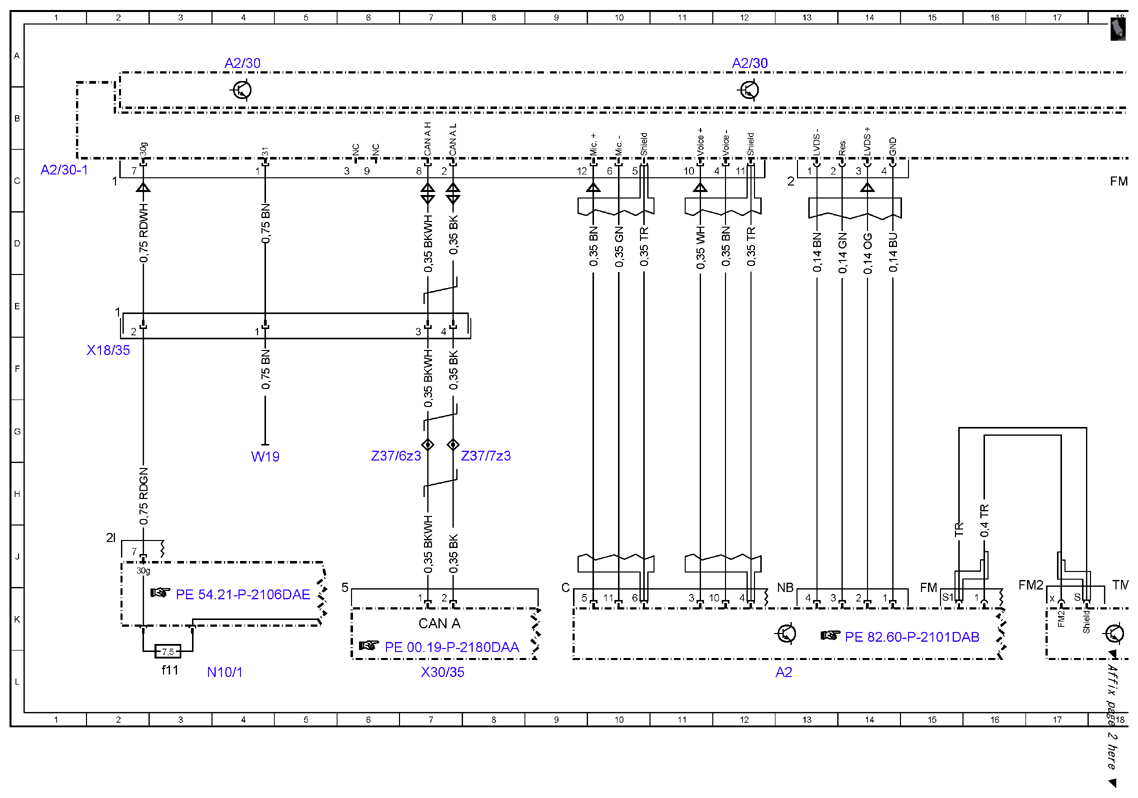

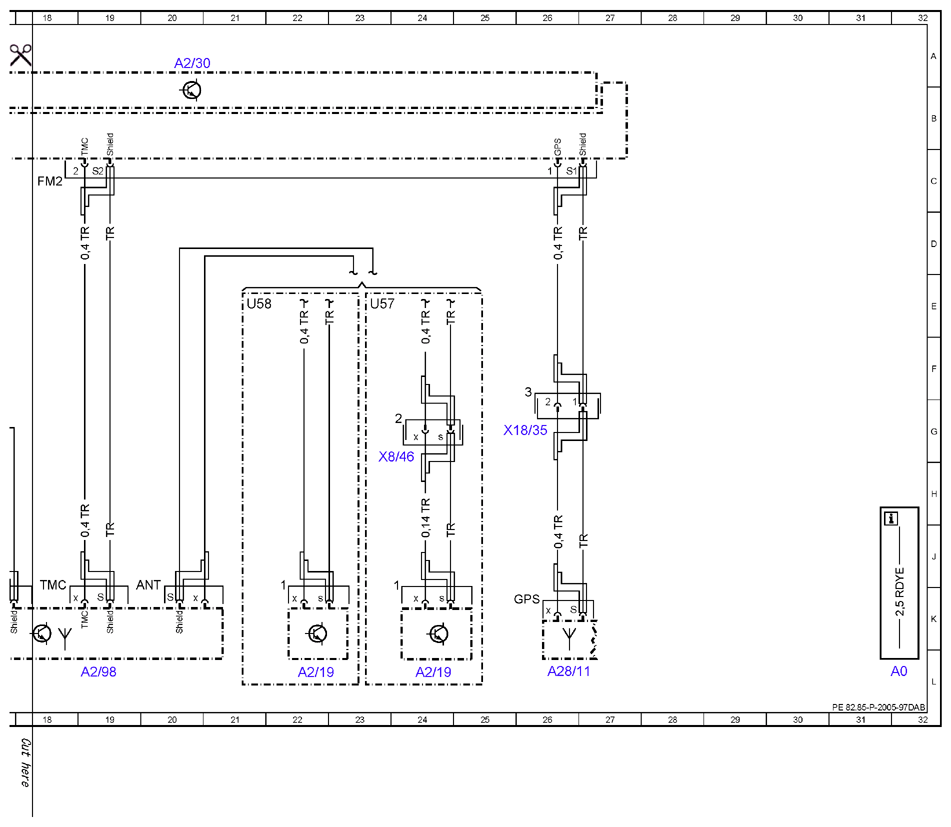

Wiring diagram of navigation system - PE82.85-P-2005-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 508 (Navigation box preinstallation) Control unit A2/30-1
MODEL 212 with CODE 509 (Navigation box) Control unit A2/30-1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A2 | Radio | 13L |
| A2/19 | FM 2 and DAB antenna amplifier | 22L |
| A2/19 | FM 2 and DAB antenna amplifier | 24L |
| A2/30 | Navigation module | 4A |
| A2/30 | Navigation module | 12A |
| A2/30 | Navigation module | 20A |
| A2/30-1 | Cradle for navigation module | 1C |
| A2/98 | FM/TMC antenna splitter | 19L |
| A28/11 | Multifunction antenna | 26L |
| CAN A | Telematics CAN | 7K |
| N10/1 | Front SAM control unit with fuse and relay module | 4L |
| N10/1f11 | Fuse 11 | 3L |
| U57 | Valid for model 212.2 | 23E |
| U58 | Valid for model 212.0/1 | 21E |
| W19 | Right front seat crossmember ground point | 4G |
| X18/35 | Instrument panel and vehicle floor electrical connector | 2F |
| X18/35 | Instrument panel and vehicle floor electrical connector | 26G |
| X30/35 | Telematics CAN voltage distributor electrical connector | 7L |
| X8/46 | Right vehicle interior and tailgate electrical connector | 24G |
| Z37/6z3 | CAN bus high connector sleeve | 6G |
| Z37/7z3 | CAN bus low connector sleeve | 7G |
