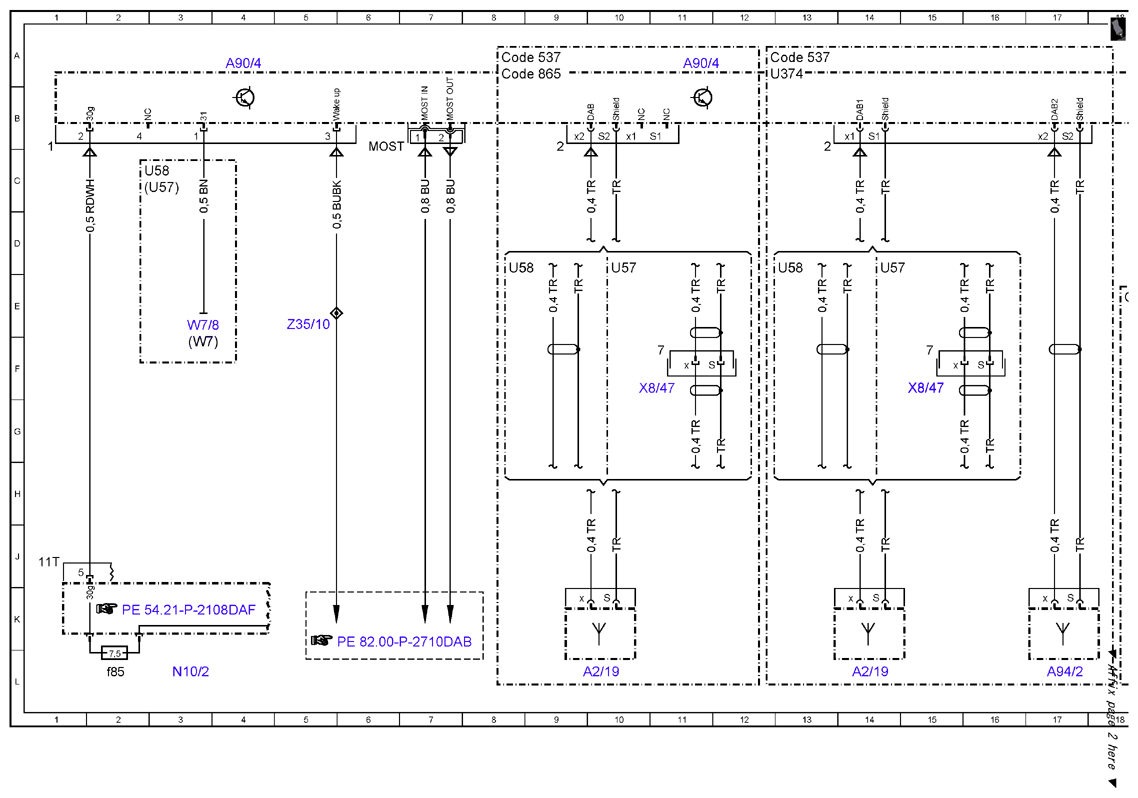

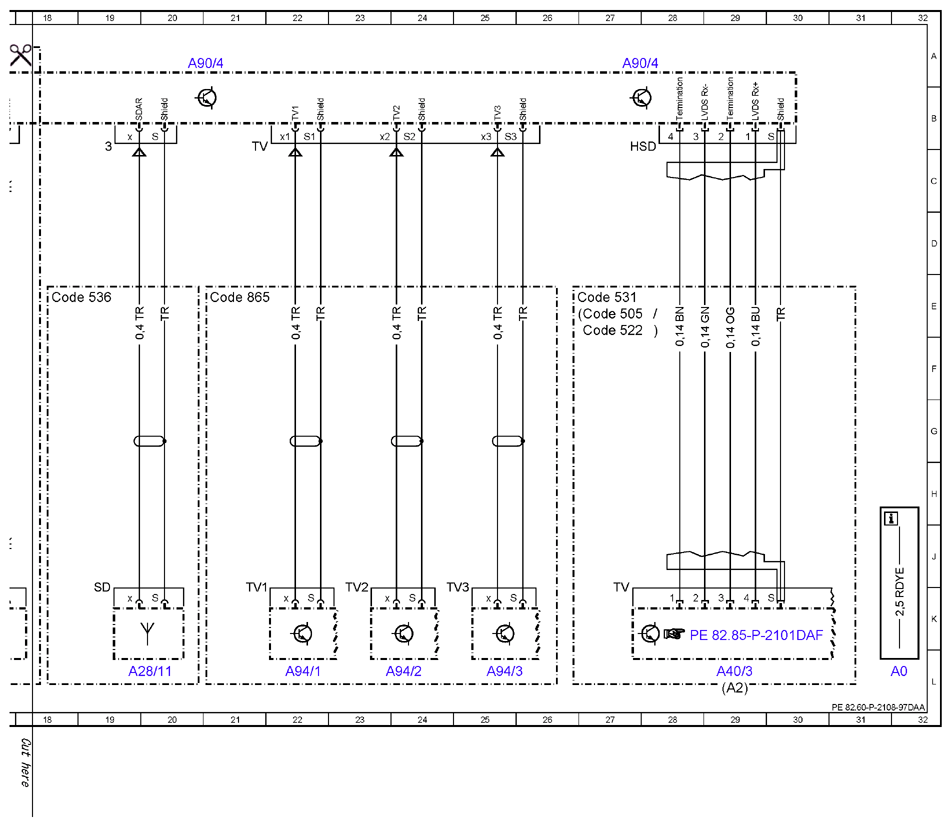

Wiring diagram for tuner unit control unit - PE82.60-P-2108-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 531 (COMAND APS) with CODE 536 (SIRIUS satellite radio) with CODE 537 (Digital radio (DAB)) Control unit A90/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A2 | Radio | 29L |
| A2/19 | FM 2 and DAB antenna amplifier | 10L |
| A2/19 | FM 2 and DAB antenna amplifier | 14L |
| A28/11 | Multifunction antenna | 19L |
| A40/3 | COMAND control unit | 29L |
| A90/4 | Tuner unit | 4A |
| A90/4 | Tuner unit | 20A |
| A90/4 | Tuner unit | 11A |
| A90/4 | Tuner unit | 27A |
| A94/1 | TV 1 antenna amplifier | 22L |
| A94/2 | TV 2 antenna amplifier | 24L |
| A94/2 | TV 2 antenna amplifier | 17L |
| A94/3 | TV 3 antenna amplifier | 25L |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 27E |
| Code 522 | Audio 20 radio | 27E |
| Code 531 | COMAND APS | 26E |
| Code 536 | SIRIUS satellite radio | 18E |
| Code 537 | Digital radio | 8A |
| Code 537 | Digital radio | 12A |
| Code 865 | TV tuner (digital) | 21E |
| Code 865 | TV tuner (digital) | 8A |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f85 | Fuse 85 | 2L |
| U374 | 12A | |
| U57 | Valid for model 212.2 | 2C |
| U57 | Valid for model 212.2 | 10D |
| U57 | Valid for model 212.2 | 14D |
| U58 | Valid for model 212.0/1 | 2C |
| U58 | Valid for model 212.0/1 | 8D |
| U58 | Valid for model 212.0/1 | 13D |
| W7 | Right rear wheel well ground point | 3F |
| W7/8 | Right wheelhouse trunk ground point | 3E |
| X8/47 | Left and right liftgate electrical connector | 11F |
| X8/47 | Left and right liftgate electrical connector | 15F |
| Z35/10 | MOST wake-up signal connector sleeve | 5E |
