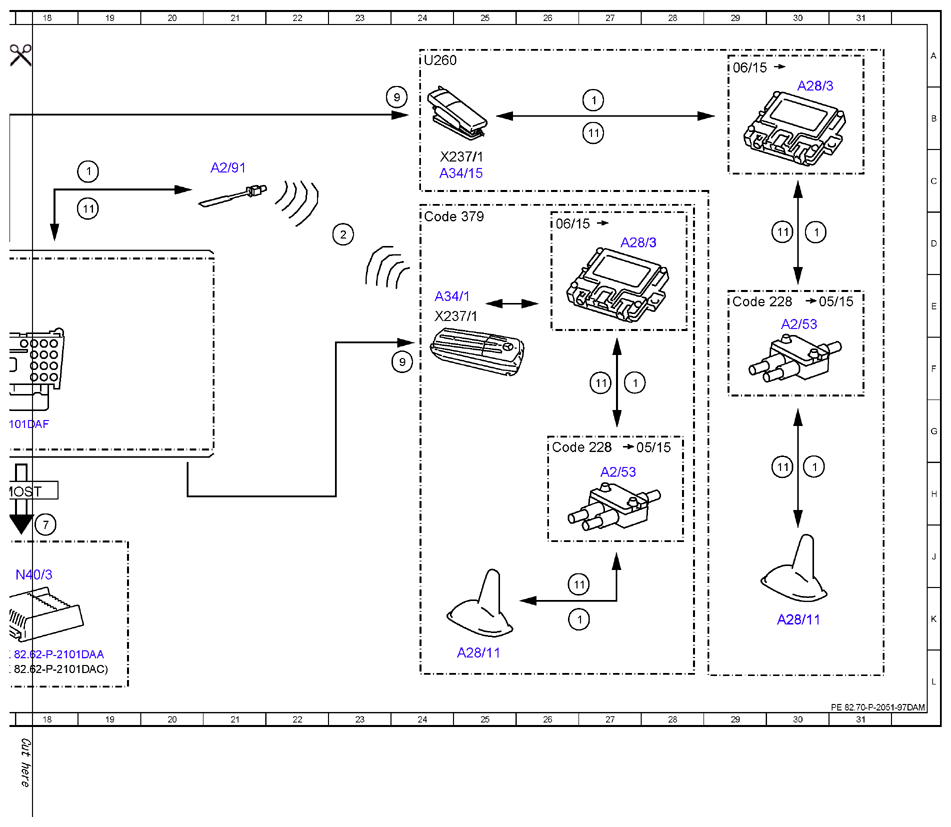

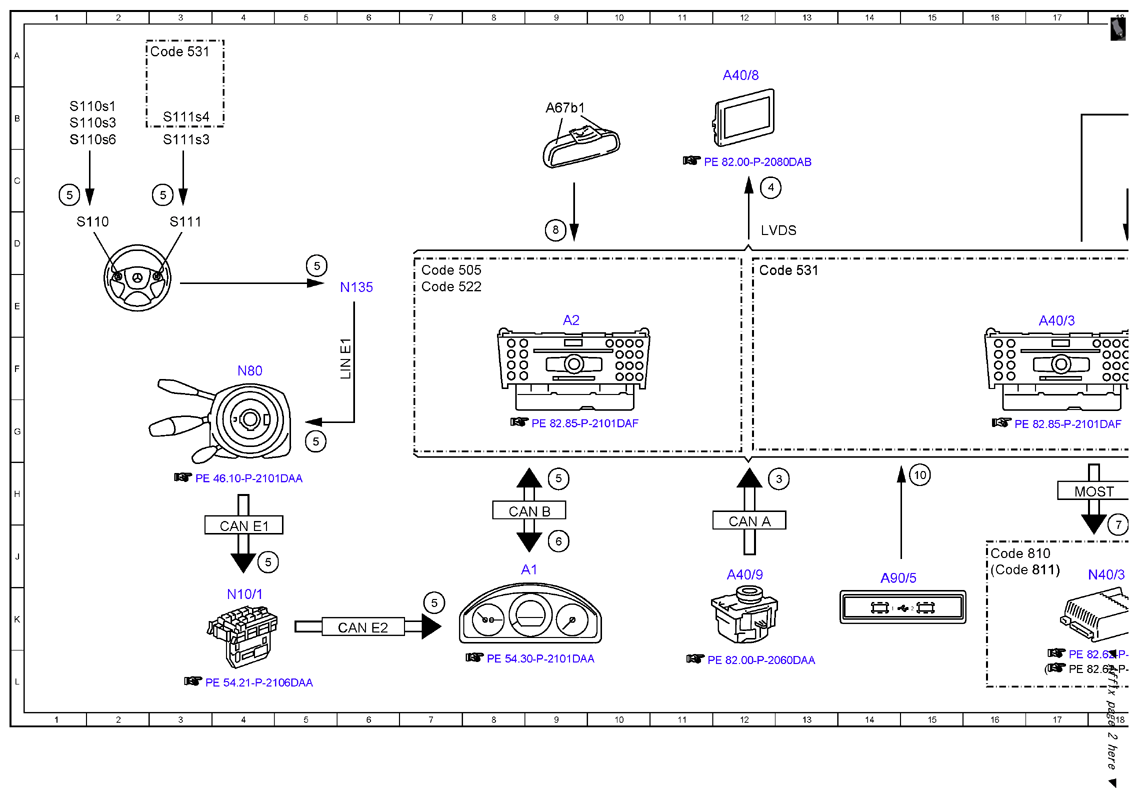

Electrical function schematic for cellular phone - PE82.70-P-2051-97DAM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of 3/2/15 as of model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Telephone, signal | 30H |
| 1 | Telephone, signal | 19C |
| 1 | Telephone, signal | 27B |
| 1 | Telephone, signal | 30D |
| 1 | Telephone, signal | 27F |
| 1 | Telephone, signal | 26K |
| 10 | Address data, signal | 15H |
| 11 | Internet, signal | 27B |
| 11 | Internet, signal | 27F |
| 11 | Internet, signal | 30D |
| 11 | Internet, signal | 30H |
| 11 | Internet, signal | 26K |
| 11 | Internet, signal | 19D |
| 2 | Bluetooth, signal | 23D |
| 3 | Audio/COMAND controller, request | 13H |
| 4 | Audio/COMAND display, message | 12C |
| 5 | Multifunction steering wheel button group, signal | 5G |
| 5 | Multifunction steering wheel button group, signal | 7K |
| 5 | Multifunction steering wheel button group, signal | 9H |
| 5 | Multifunction steering wheel button group, signal | 1C |
| 5 | Multifunction steering wheel button group, signal | 3C |
| 5 | Multifunction steering wheel button group, signal | 5D |
| 5 | Multifunction steering wheel button group, signal | 4J |
| 6 | Instrument cluster, message | 9J |
| 7 | Sound system amplifier, actuation | 18J |
| 8 | Voice input, signal | 9D |
| 9 | Switch-on request, signal | 24F |
| 9 | Switch-on request, signal | 24B |
| A1 | Instrument cluster | 8J |
| A2 | Radio | 9E |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 30E |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 27H |
| A2/91 | Bluetooth antenna | 21C |
| A28/11 | Multifunction antenna | 30K |
| A28/11 | Multifunction antenna | 25L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 30B |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 27D |
| A34/1 | Telephone module with Bluetooth® (SAP profile) | 24E |
| A34/15 | Mobile phone holder | 24C |
| A40/3 | COMAND control unit | 17E |
| A40/8 | Audio/COMAND display | 12A |
| A40/9 | Audio/COMAND control panel | 12J |
| A67b1 | Hands-free system microphone | 9B |
| A90/5 | Multimedia connection unit | 14J |
| CAN A | Telematics CAN | 12J |
| CAN B | Interior CAN | 8H |
| CAN E1 | Chassis CAN 1 | 4J |
| CAN E2 | Chassis CAN 2 | 6K |
| Code 228 | Stationary heater | 26G |
| Code 228 | Stationary heater | 29E |
| Code 379 | Telephone module with Bluetooth SAP | 24D |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 7E |
| Code 522 | Audio 20 radio | 7E |
| Code 531 | COMAND APS | 3A |
| Code 531 | COMAND APS | 12E |
| Code 810 | Sound system | 16J |
| Code 811 | Extended sound system | 16J |
| LIN E1 | Steering LIN | 6F |
| LVDS | Low voltage differential signal | 12D |
| MOST | Media Oriented System Transport | 17H |
| N10/1 | Front SAM control unit with fuse and relay module | 4K |
| N135 | Steering wheel electronics | 6E |
| N40/3 | Sound system amplifier control unit | 18J |
| N80 | Steering column module control unit | 4F |
| S110 | Left multifunction steering wheel button group | 1D |
| S110s1 | Scroll forward/back button | 1B |
| S110s3 | System selection button | 1B |
| S110s6 | OK button | 1B |
| S111 | Right multifunction steering wheel button group | 3D |
| S111s3 | Accept/terminate phone call button | 3B |
| S111s4 | Voice control system ON button | 3B |
| U260 | Valid for comfort telephony | 24A |
| X237/1 | Mobile phone contact plate | 24C |
| X237/1 | Mobile phone contact plate | 24E |
