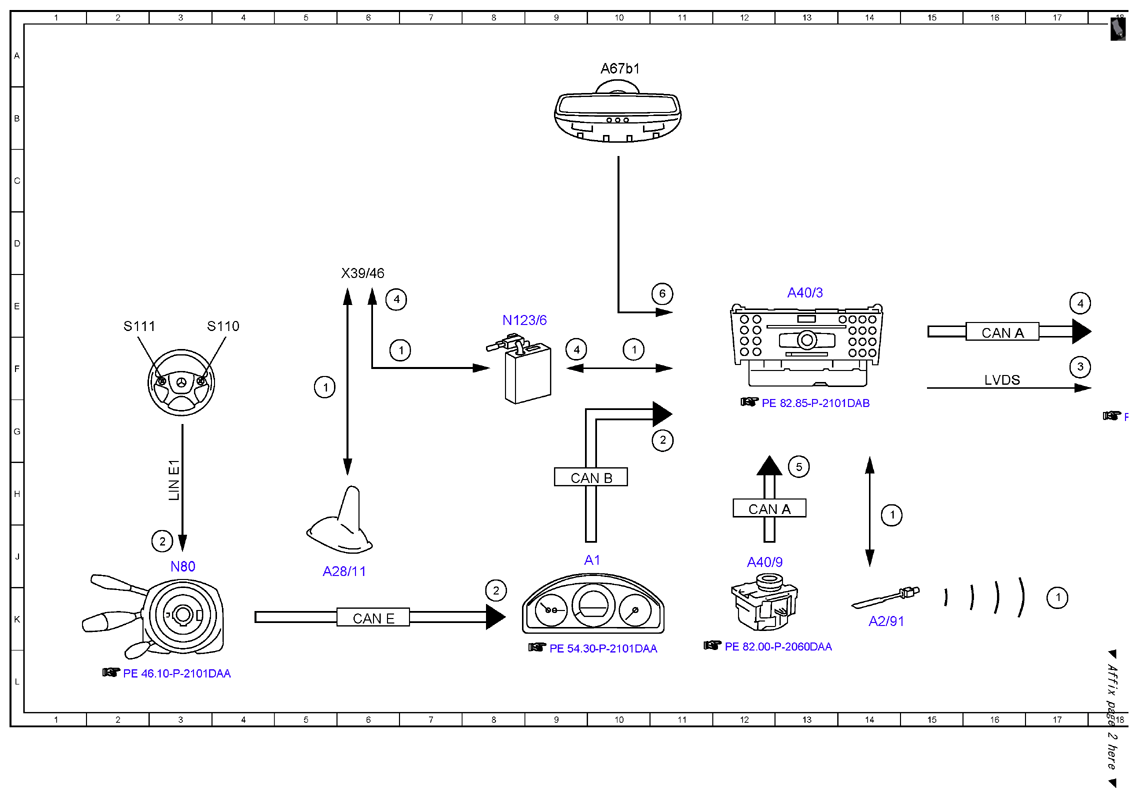

Electrical function schematic for cellular phone - PE82.70-P-2051-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE (498) Japan version up to model year 2011 /YoM 10
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Telephone, signal | 14H |
| 1 | Telephone, signal | 5F |
| 1 | Telephone, signal | 6F |
| 1 | Telephone, signal | 10F |
| 1 | Telephone, signal | 17K |
| 2 | Multifunction steering wheel button group, signal | 3J |
| 2 | Multifunction steering wheel button group, signal | 8K |
| 2 | Multifunction steering wheel button group, signal | 11G |
| 3 | Audio/COMAND display, message | 17F |
| 4 | Switch-on request, signal | 6E |
| 4 | Switch-on request, signal | 9F |
| 4 | Switch-on request, signal | 17E |
| 5 | Audio/COMAND controller, request | 13H |
| 6 | Voice input, signal | 11E |
| A1 | Instrument cluster | 9J |
| A2/91 | Bluetooth antenna | 14K |
| A28/11 | Multifunction antenna | 5J |
| A40/3 | COMAND control unit | 13E |
| A40/8 | Audio/COMAND display | 18E |
| A40/9 | Audio/COMAND control panel | 12J |
| A67b1 | Hands-free system microphone | 10A |
| CAN A | Telematics CAN | 16F |
| CAN A | Telematics CAN | 12H |
| CAN B | Interior CAN | 9H |
| CAN E | Chassis CAN | 6K |
| LIN E1 | Steering LIN | 3H |
| LVDS | Low voltage differential signal | 16F |
| N123/6 | Communication control unit | 8E |
| N80 | Steering column module control unit | 3J |
| S110 | Left multifunction steering wheel button group | 3E |
| S111 | Right multifunction steering wheel button group | 2E |
| X39/46 | Adapter cable electrical connector, Japan | 6E |
