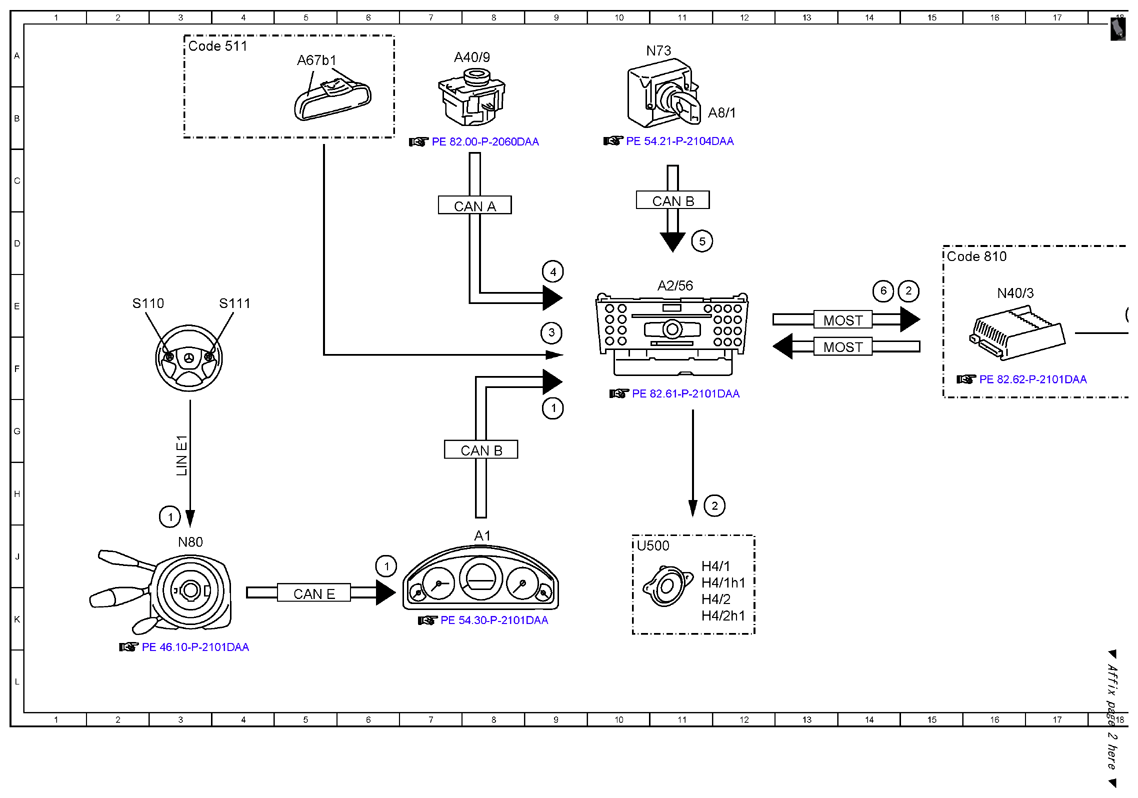

Electrical function diagram for route guidance by voice output (APS), function - PE82.61-P-2052-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 /2 with CODE (511) Audio 50 APS with DVD changer with CODE (525) MB Audio 50 APS radio
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 3H |
| 1 | Multifunction steering wheel button group, signal | 6J |
| 1 | Multifunction steering wheel button group, signal | 9F |
| 2 | Speaker, actuation | 12H |
| 2 | Speaker, actuation | 15E |
| 2 | Speaker, actuation | 18E |
| 3 | Voice input, signal | 9E |
| 4 | Audio/COMAND controller, request | 9E |
| 5 | Circuit 15R, status | 11D |
| 6 | Audio, signal | 14E |
| A1 | Instrument cluster | 8J |
| A2/56 | Radio with auto pilot system | 11E |
| A40/9 | Audio/COMAND control panel | 7A |
| A67b1 | Hands-free system microphone | 5A |
| A8/1 | Transmitter key | 12B |
| CAN A | Telematics CAN | 8C |
| CAN B | Interior CAN | 11C |
| CAN B | Interior CAN | 8G |
| CAN E | Chassis CAN | 5K |
| Code 511 | Audio 50 APS incl. DVD changer | 4A |
| Code 810 | Sound system | 16D |
| H4/1 | Left front door speaker | 11J |
| H4/1h1 | Left front door tweeter | 11J |
| H4/2 | Right front door speaker | 11K |
| H4/27 | Center instrument panel speaker | 19E |
| H4/2h1 | Right front door tweeter | 11K |
| H4/68 | Left front door sound system tweeter | 19F |
| H4/69 | Right front door sound system tweeter | 19F |
| H4/72 | Left front door sound system midrange and bass speakers | 19F |
| H4/73 | Right front door sound system midrange and bass speakers | 19F |
| LIN E1 | Steering LIN | 3G |
| MOST | Media Oriented System Transport | 14E |
| MOST | Media Oriented System Transport | 14F |
| N40/3 | Sound system amplifier control unit | 16E |
| N73 | Electronic ignition switch control unit | 10A |
| N80 | Steering column module control unit | 3J |
| S110 | Left multifunction steering wheel button group | 2E |
| S111 | Right multifunction steering wheel button group | 4E |
| U500 | Not valid for sound system | 10J |
