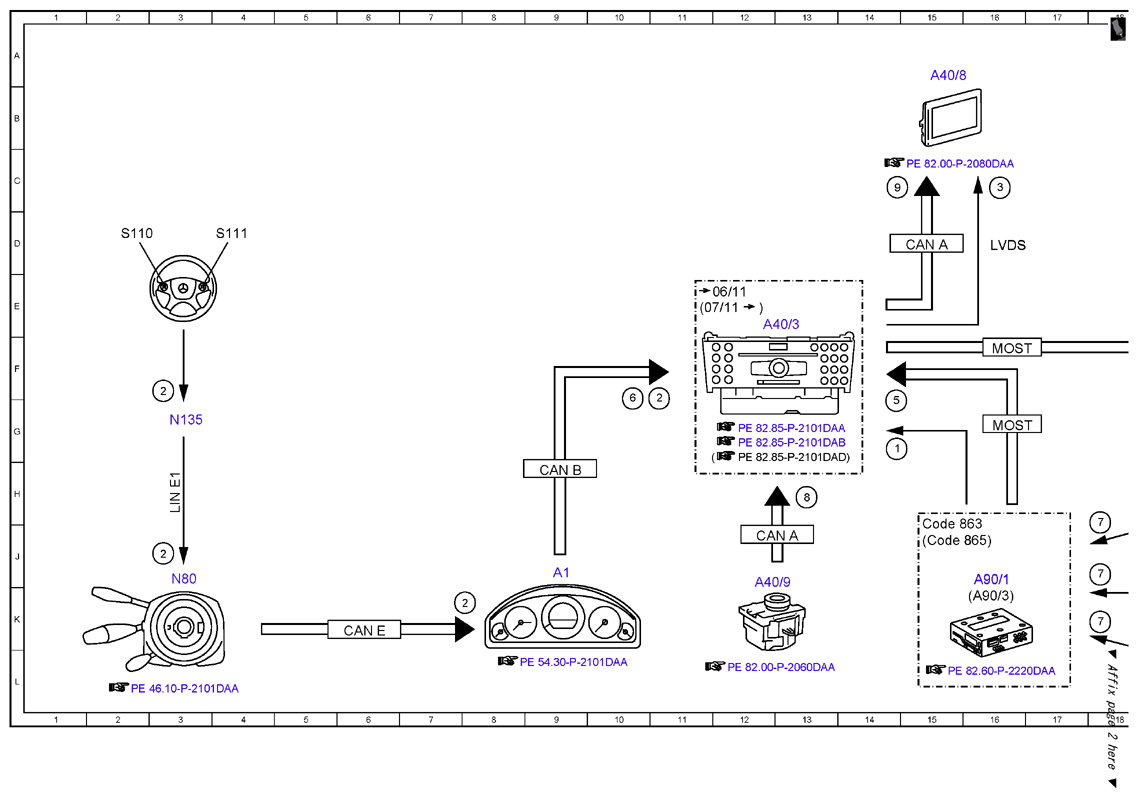

Electrical function diagram for TV mode, function - PE82.85-P-2065-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to 2/28/13 with CODE 863 (Digital/analog TV tuner)
MODEL 212 up to 2/28/13 with CODE 865 (TV receiver)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Video and TV, signal | 14G |
| 2 | Multifunction steering wheel button group, signal | 3J |
| 2 | Multifunction steering wheel button group, signal | 8K |
| 2 | Multifunction steering wheel button group, signal | 11G |
| 2 | Multifunction steering wheel button group, signal | 3F |
| 3 | Video, signal | 16C |
| 4 | Audio, signal | 20E |
| 5 | Audio applications, signal | 14G |
| 6 | Vehicle speed, signal | 10G |

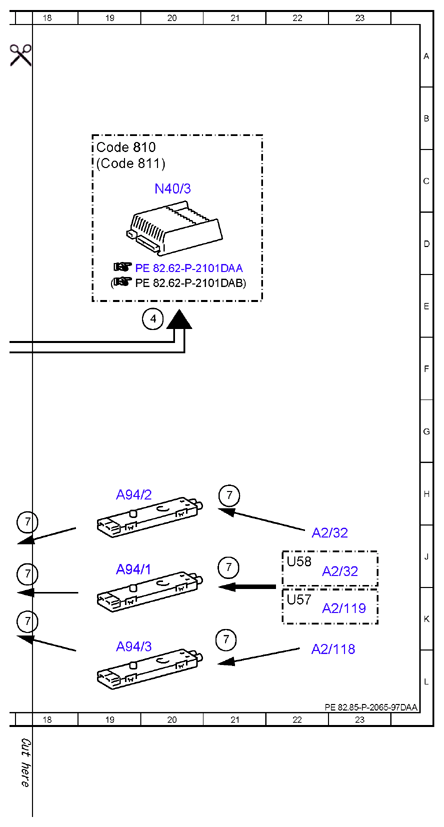

| 7 | TV antennas, signal | 21K |
| 7 | TV antennas, signal | 18K |
| 7 | TV antennas, signal | 18J |
| 7 | TV antennas, signal | 18J |
| 7 | TV antennas, signal | 21J |
| 8 | Audio/COMAND controller, request | 13H |
| 9 | Switch-on request, signal | 14C |
| A1 | Instrument cluster | 9J |
| A2/118 | Windshield antenna | 22L |
| A2/119 | Left rear side window antenna | 22K |
| A2/32 | Rear window antenna | 22J |
| A2/32 | Rear window antenna | 22J |
| A40/3 | COMAND control unit | 12E |
| A40/8 | Audio/COMAND display | 15A |
| A40/9 | Audio/COMAND control panel | 12J |
| A90/1 | TV tuner (analog/digital) | 16J |
| A90/3 | TV digital tuner | 16K |
| A94/1 | TV 1 antenna amplifier | 19J |
| A94/2 | TV 2 antenna amplifier | 19H |
| A94/3 | TV 3 antenna amplifier | 19L |
| CAN A | Telematics CAN | 12J |
| CAN A | Telematics CAN | 15D |
| CAN B | Interior CAN | 9H |
| CAN E | Chassis CAN | 6K |
| Code 810 | Sound system | 19C |
| Code 811 | Extended sound system | 19C |
| Code 863 | Digital/analog TV tuner | 15J |
| Code 865 | TV tuner (digital) | 15J |
| LIN E1 | Steering LIN | 3H |
| LVDS | Low voltage differential signal | 16D |
| MOST | Media Oriented System Transport | 16G |
| MOST | Media Oriented System Transport | 16F |
| N135 | Steering wheel electronics | 3G |
| N40/3 | Sound system amplifier control unit | 20C |
| N80 | Steering column module control unit | 3J |
| S110 | Left multifunction steering wheel button group | 2D |
| S111 | Right multifunction steering wheel button group | 4D |
| U57 | Valid for model 212.2 | 22K |
| U58 | Valid for model 212.0/1 | 22J |
