Remove/install exhaust gas recirculation positioner - AR14.20-P-1020GZB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164, 251
ENGINE 642 in MODEL 207, 212, 218 without CODE 927 (EU6 emissions standard)
MODIFICATION NOTES
| 26.9.14 | coolant mixing ratio | BF20.00-P-1001-04A |

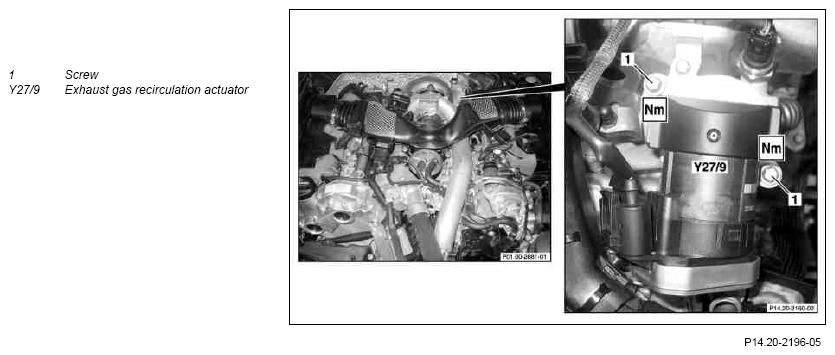

Shown on model 211
| Remove/install | |||
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 1 | Removes strut tower brace | MODEL 164.8 | |
| AR62.30-P-2500GY | |||
| 2 | Remove partition wall between wheel wells | MODEL 251 | |
| AR62.30-P-2400RT | |||
| 3 | Remove engine cover | MODEL 164, 207, 212, 218, 251 | |
| MODEL 164 | AR01.10-P-2405GZB | ||
| MODEL 251 |
AR01.10-P-2405RTB | ||
| 4 | Remove left-hand air filter housing | Model 251 with coolant cooled exhaust gas recirculation actuator (Y27/9) | AR09.10-P-1150RTB |
| MODEL 164.1/8 | AR09.10-P-1150GZB | ||
| 5 | Carefully open cap for the coolant system | For a water-cooled exhaust gas recirculation actuator (Y27/9) | |
| 6 | Remove coolant hose on exhaust gas recirculation actuator (Y27/9) | For a water-cooled exhaust gas recirculation actuator (Y27/9) |
|
| 7 | Disconnect electrical connection on left exhaust gas recirculation actuator (Y27/9) | ||
| 8 | Remove screw/bolt (1) | *BA14.20-P-1002-01G | |
| 9 | Remove left exhaust gas recirculation actuator (Y27/9) upwards | ||
| 10 | Install in the reverse order | ||
| 11 | Reset lambda values with diagnostic system | When replacing the exhaust gas recirculation actuator (Y27/9) | |
| AD00.00-P-2000-04A | |||
| 12 | Pour coolant into expansion reservoir | ||
| Notes on coolant level | AH20.00-P-1142-01TI | ||
| *BF20.00-P-1001-04A | |||
| 13 | ENGINE TEST RUN | ||
| 14 | Correct coolant level in the expansion reservoir and check cooling system for leaktightness | MODEL 164, 251 | AR20.00-P-1010GZB |
| MODEL 207 | AR20.00-P-1010CW | ||
| MODEL 212, 218 | AR20.00-P-1010OMA |
EXHAUST GAS RECIRCULATION
| Number | Designation | ENGINE 642.82/83/85/86/87/886/9 | |
|---|---|---|---|
| BA14.20-P-1002-01G | Bolt, exhaust gas recirculation positioner to charge air distribution line | Nm | 12 |
COOLANT MIXING RATIO
| Number | Designation | ENGINE ALL | ||
|---|---|---|---|---|
| BF20.00-P-1001-04A | Coolant mixing ratio | Antifreeze/water | up to -37°C | 50/50 |
| Antifreeze/water | up to -45°C | 55/45 | ||
| Specification | Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
| Specification | Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |||
