Remove/install air pump switchover valve - AR14.30-P-7255EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273 in MODEL 212
| Remove/install | |||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| 1 | Turn key in ignition switch to position "0". | ||
| 2 | Remove front engine cover | See Remove air filter housing. | AR09.10-P-1150EWS |

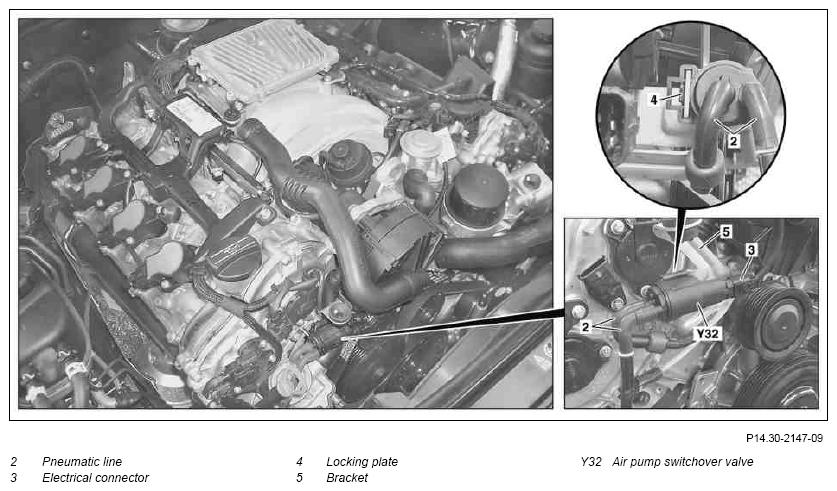

| 3 | Detach pneumatic lines (2) from switchover valve (Y32) | ||
| 4 | Disconnect electrical connector (3) at switchover valve (Y32) | ||
| 5 | Lift off locking tab (4) and pull off switchover valve (Y32) from bracket (5) | ||
| 6 | Install in the reverse order |
