Exterior lights, location of components - GF82.10-P-0003-02FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 /2 up to 28.2.13

Shown on model 212.0

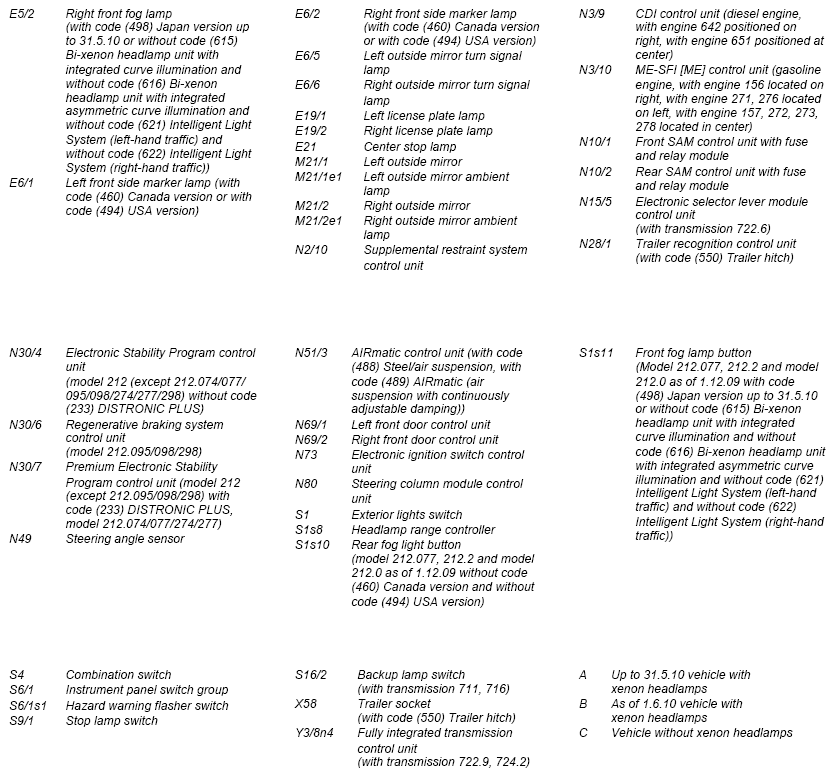

Fig 1: Exterior Lights Component Location (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Exterior Lights Component Location (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Displays in the instrument cluster (A1)

Fig 3: Instrument Cluster Components

Courtesy of MERCEDES-BENZ USA

The following components in the instrument cluster sending functional feedback are not shown here:

Warning buzzer (A1h1)
Function check of turn signal lights, acoustic (A1h2)

Lamp unit (halogen version)

(without code (615) Bi-xenon headlamp unit with integrated curve illumination and without code (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination and without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic))

Fig 4: Lamp Unit (Halogen Version)

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left headlamp range adjustment actuator motor (E1m1)
Right headlamp range adjustment actuator motor (E2m1)

Lamp unit in xenon design

(With code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic) without code (610) Night View Assist)

Fig 5: Lamp Unit (Xenon Design)

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units sending functional feedback are not shown here:

Left headlamp range adjustment actuator motor
Left active curve illumination actuator motor (E1m2)
Left light distribution actuator motor (E1m3)
Right headlamp range adjustment actuator motor
Right active curve illumination actuator motor (E2m2)
Right light distribution actuator motor (E2m3)

Taillamp, shown without code (615) Bi-xenon headlamp unit with integrated curve illumination and without code (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination and without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic)

Fig 6: Identifying Taillamp Unit

Courtesy of MERCEDES-BENZ USA
