Block diagram of exterior lights - GF82.10-P-0003-03FL

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 /2 up to 28.2.13

Without code (615) Bi-xenon headlamp unit with integrated curve illumination and without code (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination and without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic)

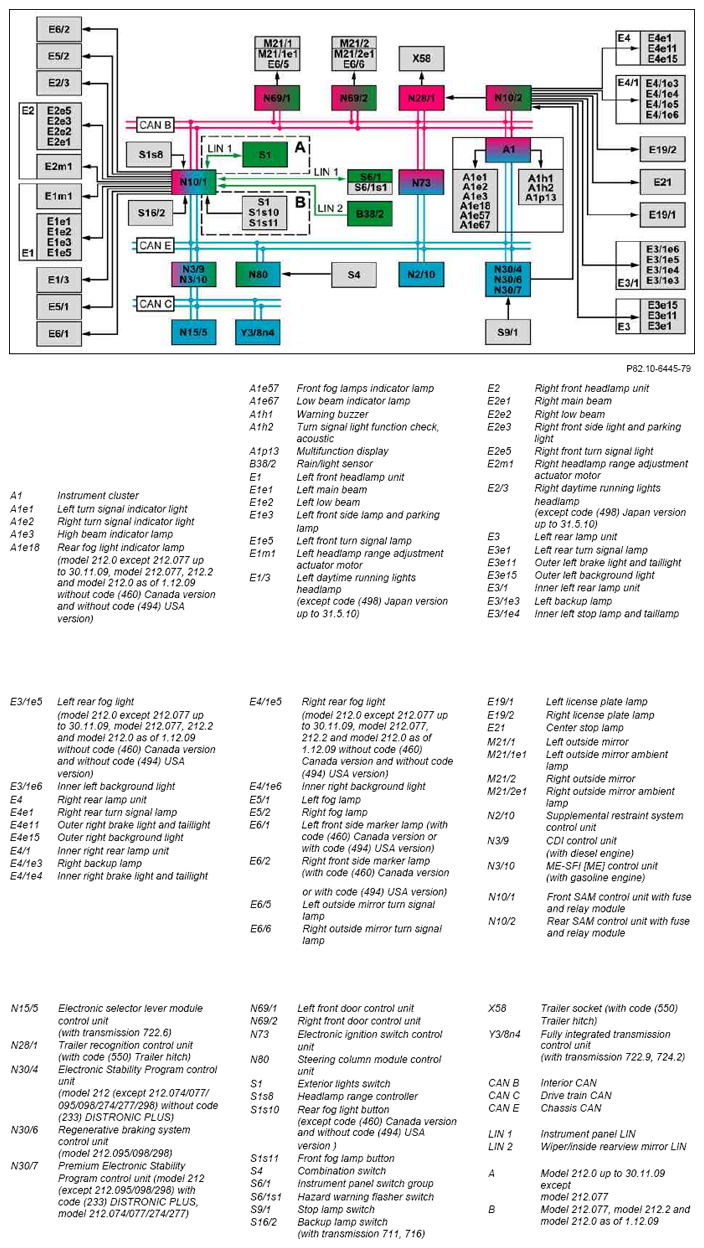

Fig 1: Exterior Lights Block Diagram (Without Code 615)

Courtesy of MERCEDES-BENZ USA

With code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic)

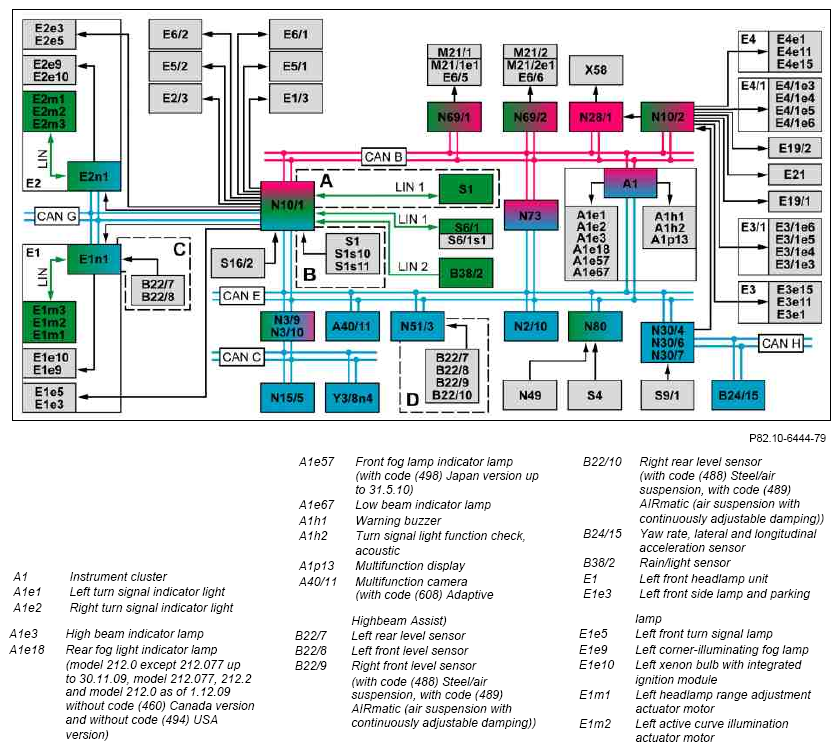

Fig 2: Exterior Lights Block Diagram (With Code 615; 1 Of 2)

Courtesy of MERCEDES-BENZ USA

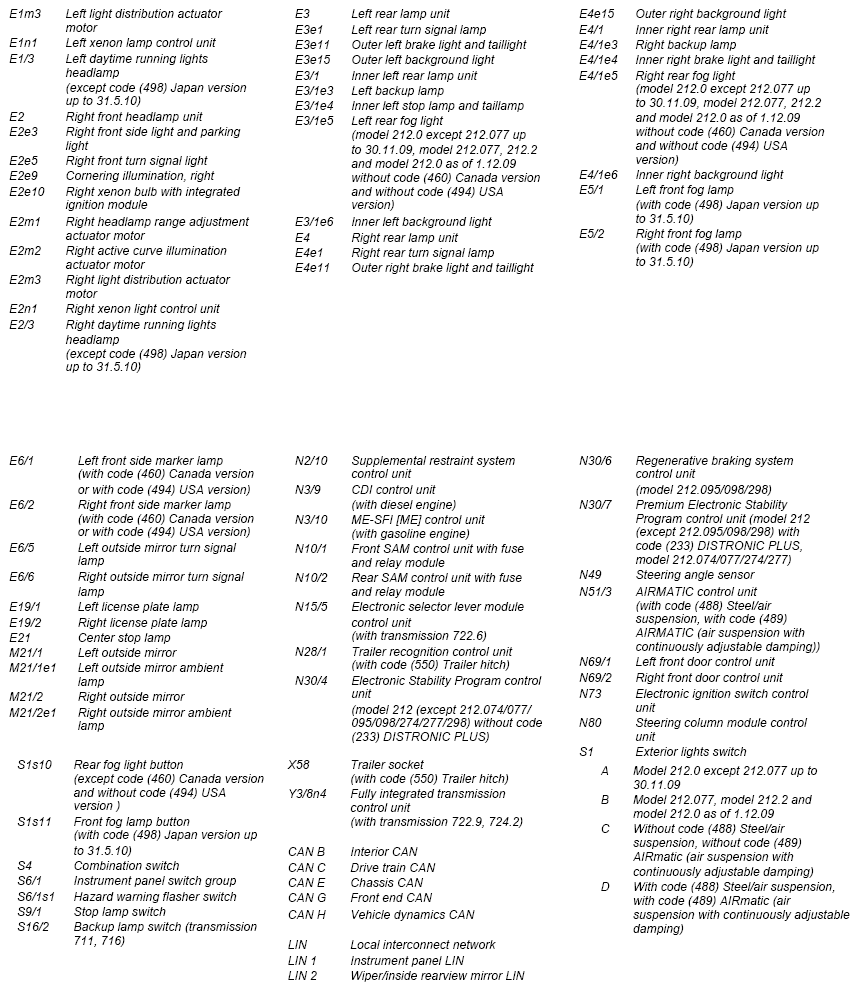

Fig 3: Exterior Lights Block Diagram (With Code 615; 2 Of 2)

Courtesy of MERCEDES-BENZ USA
