Seat belt height adjustment mechanism (front seat) removal and installation - AR91.40-P-1100CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 212
Shown on model 204.0
| Remove/install | |||

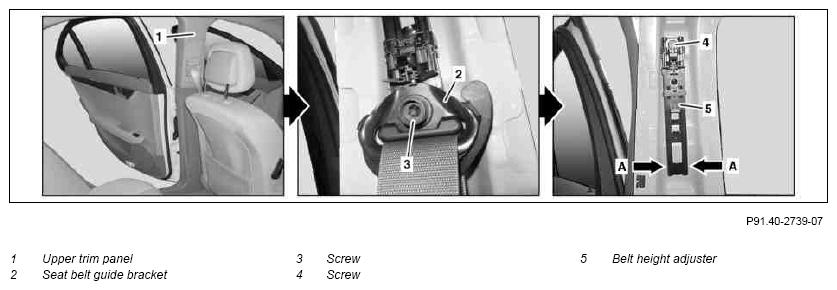

| 1 | Remove upper paneling (1) on B-pillar and place to one side | ||
| 2 | Remove bolt (3) from seat belt guide bracket (2) | *BA91.40-P-1002-01P | |
| *BA91.40-P-1003-01Q | |||
| 3 | Remove bolt (4) from belt height adjuster (5) | *BA91.40-P-1009-01P | |
| *BA91.40-P-1002-01Q | |||
| 4 | Lead belt height adjuster (5) out of B-pillar (arrows A) and remove | ||
| 5 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 204.0 | Model 204.2 | Model 204.9 | |
|---|---|---|---|---|---|
| BA91.40-P-1002-01P | Screw on front upper belt guide fitting | Nm | 32 | 32 | 32 |
| BA91.40-P-1009-01P | Bolt to front belt height adjuster | Nm | 32 | 32 | 32 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 212.0 | Model 212.1 | Model 212.2 | |
|---|---|---|---|---|---|
| BA91.40-P-1002-01Q | Belt height adjuster screw to B-pillar | Nm | 35 | 35 | 35 |
| BA91.40-P-1003-01Q | Bolt, front seat belt guide bracket to belt height adjuster | Nm | 35 | 35 | 35 |
