Remove/install the seat ventilation motors on the front seat backrest - AR91.30-P-1900EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 463.306/336 with CODE S50 (Seat ventilation for driver and co-driver seats)

MODEL 463.222/270/271/303/340/341 as of model year 2010 with CODE S50 (Seat ventilation for driver and co-driver seats)

MODEL 463.346 up to model year 2013 with CODE S50 (Seat ventilation for driver and co-driver seats)

MODEL 463.202/236/237 as of model year 2010 up to model year 2013 with CODE S50 (Seat ventilation for driver and co-driver seats)

MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.9, 212, 218 with CODE 401 (Front deluxe seats, incl. seat heating and seat ventilation)

Shown on model 212.054

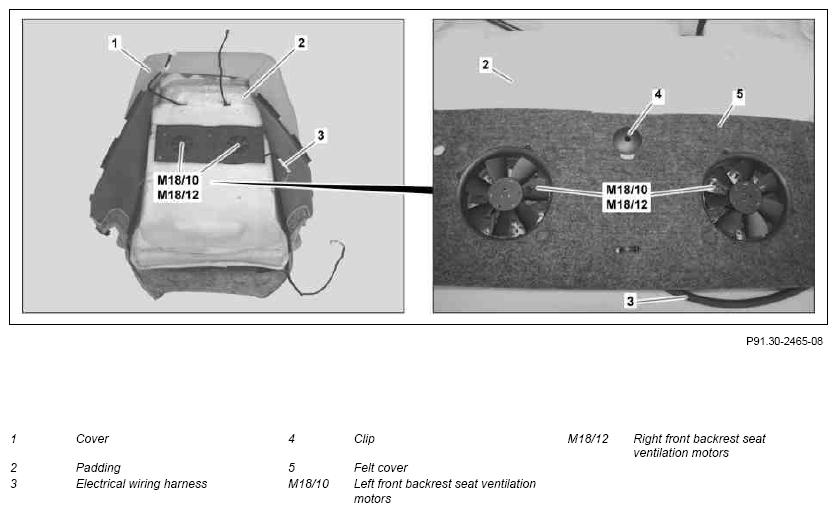

Fig 1: Seat Ventilation Motors On Front Seat Backrest Remove/Install Components - Shown On Model 212.054

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach cover (1) with padding (2) at front seat backrest until left front backrest seat ventilation motors (M18/10) or right front backrest seat ventilation motors (M18/12) are accessible	Model 204, 212, 218	AR91.18-P-1820CX
1		MODEL 463 Do not separate cover (1) from padding (2).	AR91.18-P-1820GP
2	Unclip clip (4) at padding (2)
3	Pull left front backrest seat ventilation motors (M18/10) or right front backrest seat ventilation motors (M18/12) with felt cover (5) out of padding (2) and remove with electrical wiring harness (3)
4	Install in the reverse order
