Remove/install split rear seat backrest arm rest - AR91.12-P-1750CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0, 218.3 with CODE 287 (Through-loading feature)

MODEL 218.9 with CODE 400 (Rear armrest)

MODEL 212 with CODE 287 (Through-loading feature) without CODE 224 (Rear individual seat design)

MODEL 204.2/9

Shown without code (282) Ski bag (through-loading feature), with removed rear seat backrest (2)

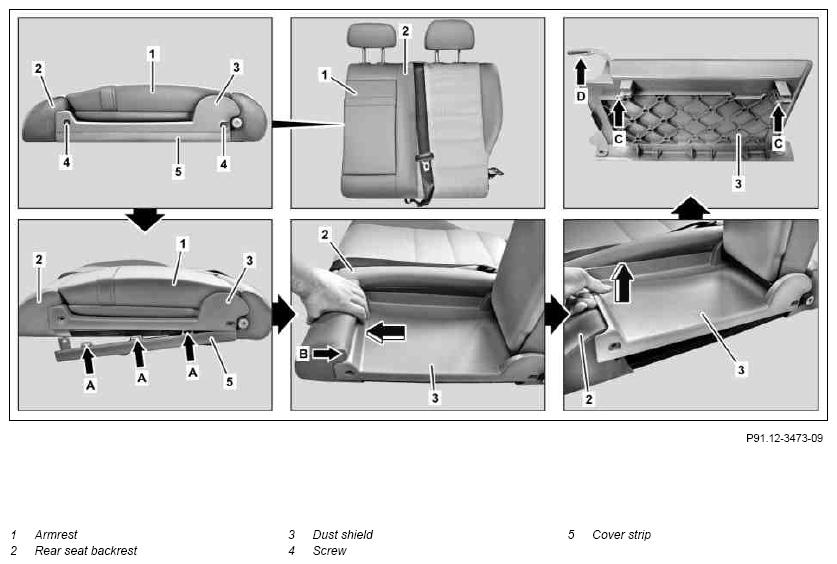

Fig 1: Split Rear Seat Backrest Arm Rest Remove/Install Components - Shown Without Code 282

Courtesy of MERCEDES-BENZ USA

Shown with code (282) Ski bag (through-loading feature), with removed rear seat backrest (2)

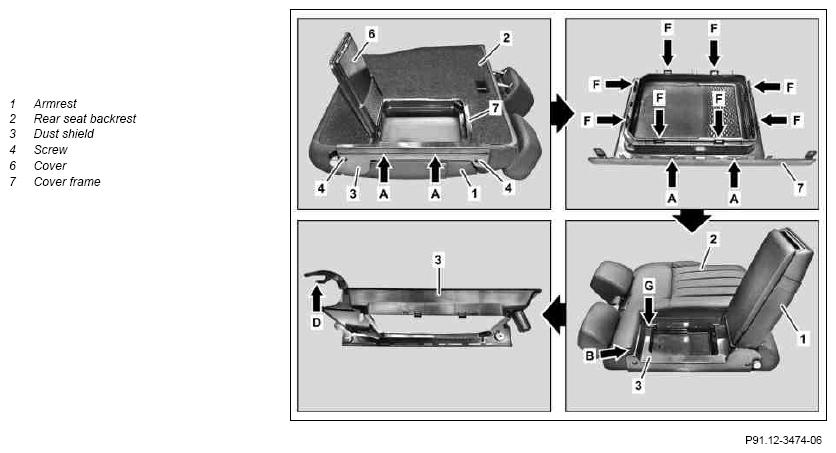

Fig 2: Split Rear Seat Backrest Arm Rest Remove/Install Components - Shown With Code 282 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 3: Split Rear Seat Backrest Arm Rest Remove/Install Components - Shown With Code 282 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Fold down rear seat backrest (2)
2	Remove both screws/bolts (4) at dust shield (3)
3.1	Unclip cover strip (5)	Without code (282) Ski bag (through-loading feature) Carefully unclip retaining brackets (arrows A) at cover strip (5). Risk of breakage of retaining brackets.
3.2	Open cover (6) and unclip cover frame (7)	With code (282) Ski bag (through-loading feature) Carefully unclip retaining brackets (arrows A, F) at cover frame (7). Risk of breakage of retaining brackets.
4	Fold up rear seat backrest (2)
5	Fold out armrest (1)
6	Remove screw/bolt (arrow G)	Model 212 with code (282) Ski bag (through-loading feature)
7	Pull out dust shield (3) from supports (8, 14) until hooks (arrows C) of dust shield (3) can be guided out of the backrest frame	Without code (282) Ski bag (through-loading feature)
8	Lift dust shield (3) and guide over raised bead of padding (arrow B)	Danger of damaging the cover.
9	Pull dust shield (3) out of supports (8, 14) and remove it	Ensure that hole cover (3) is seated correctly in supports (8, 14) of armrest (1). Ensure retaining bracket (arrow D) of dust shield (3) is seated correctly in bearing pin (11).
10	Unclip catch hook (arrow K) through opening (arrow H) using suitable tool and lift retainer (9) out of bearing pin (11) and support (8)	Carefully remove retainer (9). Risk of breakage of retainer. Ensure that guide (arrow J) is seated correctly in support (8).
11	Unhook clamping tab (12) from support (8)
12	Press expanding pins (arrows L) out of gate (10)
13	Remove gate (10)	Ensure that link (10) is seated correctly in support (8).
14	Guide armrest (1) out of support (8)	Ensure that bearing pin (11) and guide pin (13) are seated correctly in support (8).
15	Guide armrest (1) out of support (14) and remove armrest (1)	Ensure that bearing pin (11) and guide pin (13) are seated correctly in support (14).
16	Install in the reverse order
