Remove/install pelvis airbag - AR91.60-P-0300ES
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207.3/4, 212.0/2, 218 with CODE 291 (PELVIS AIRBAG (PELVISBAG))

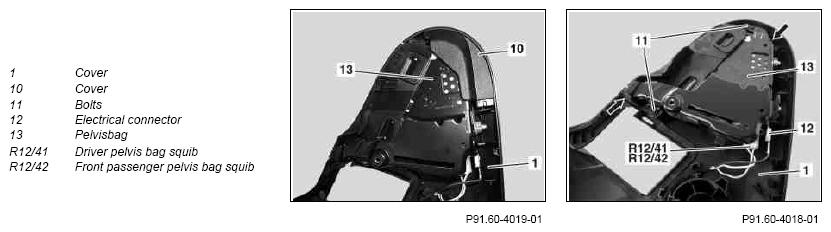

Shown on model 204.0
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| Remove/install | |||
| 1 | Remove cover (1) | MODEL 204.0/2/9 with CODE 291 (PELVIS AIRBAG (PELVISBAG)) Outer cover |
AR91.10-P-1200CY |
| MODEL 204.3, 207 with CODE 291 (PELVIS AIRBAG (PELVISBAG)) Outer cover |
AR91.10-P-1200EC | ||
| MODEL 212.0/2, 218 with CODE 291 (PELVIS AIRBAG (PELVISBAG)) Outer cover |
AR91.10-P-1200EW | ||
| 2 | Unclip cover (10) | ||
| 3 | Remove screws/bolts (11) at pelvis airbag (13) | ||
| 4 | Unplug electrical connector (12) | ||
| 5 | Disconnect electrical connector (R12/41) for squib on driver pelvis bag or (R12/42) squib on front passenger pelvis bag | ||
| 6 | Remove pelvis airbag (13) | ||
| 7 | Install in the reverse order |
