Remove/install blower regulator for seat ventilation motors in front seat - AR91.30-P-1910EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.9, 212, 218 with CODE 401 (Front deluxe seats, incl. seat heating and seat ventilation)
MODEL 463.202/236/237 as of model year 2010 up to model year 2013 with CODE S50 (Seat ventilation for driver and co-driver seats)
MODEL 463.222/270/271/303/340/341 as of model year 2010 with CODE S50 (Seat ventilation for driver and co-driver seats)
MODEL 463.306/336 with CODE S50 (Seat ventilation for driver and co-driver seats)
MODEL 463.346 up to model year 2013 with CODE S50 (Seat ventilation for driver and co-driver seats)

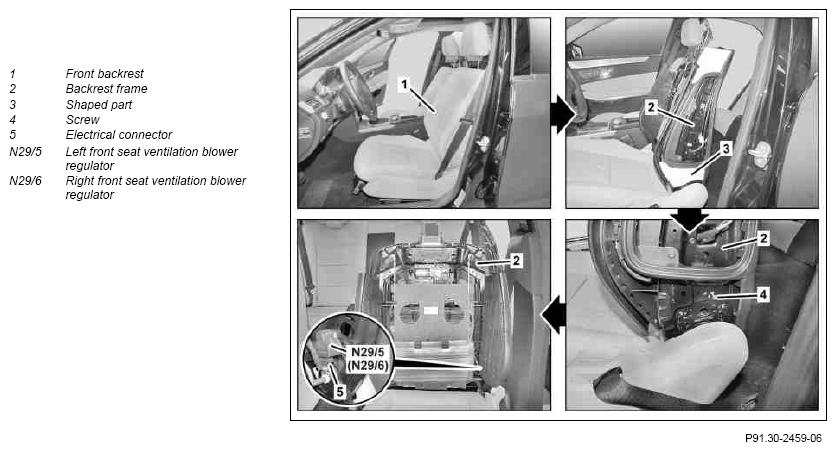

Shown on model 212.054
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Detach cover with padding at front backrest (1) and place toward front on seat cushion with electrical lines attached | Model 204.0/2/9, 212, 218 | AR91.18-P-1820CX |
| MODEL 463 | AR91.18-P-1820GP | ||
| 2.1 | Remove shaped part (3) | MODEL 212, 218, 463 | |
| 2.2 | Press shaped part (3) to one side | MODEL 204.0/2/9 | |
| 3 | Unscrew screw/bolt (4) | ||
| 4 | Guide left front seat ventilation blower regulator (N29/5) or right front seat ventilation blower regulator (N29/6) upwards out of backrest frame (2) until electrical connector (5) is accessible | ||
| 5 | Disconnect electrical connector (5) and remove left front seat ventilation blower regulator (N29/5) or right front seat ventilation blower regulator (N29/6) | ||
| 6 | Install in the reverse order |
