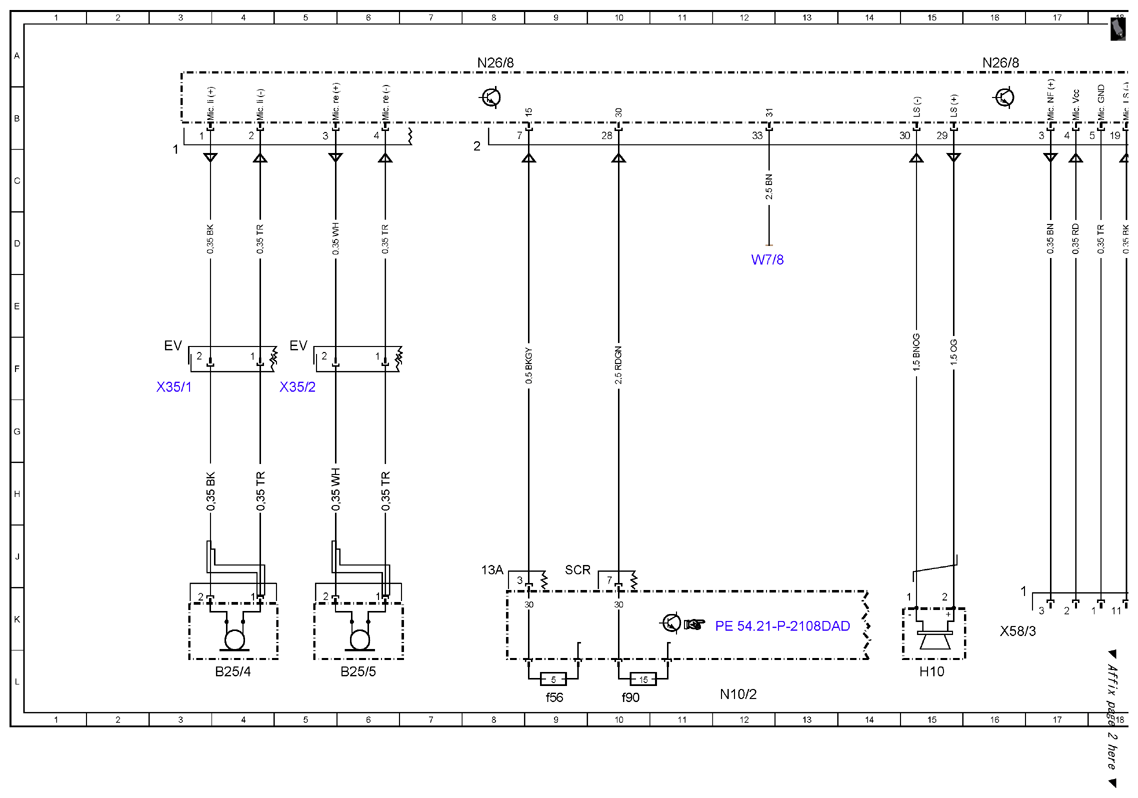

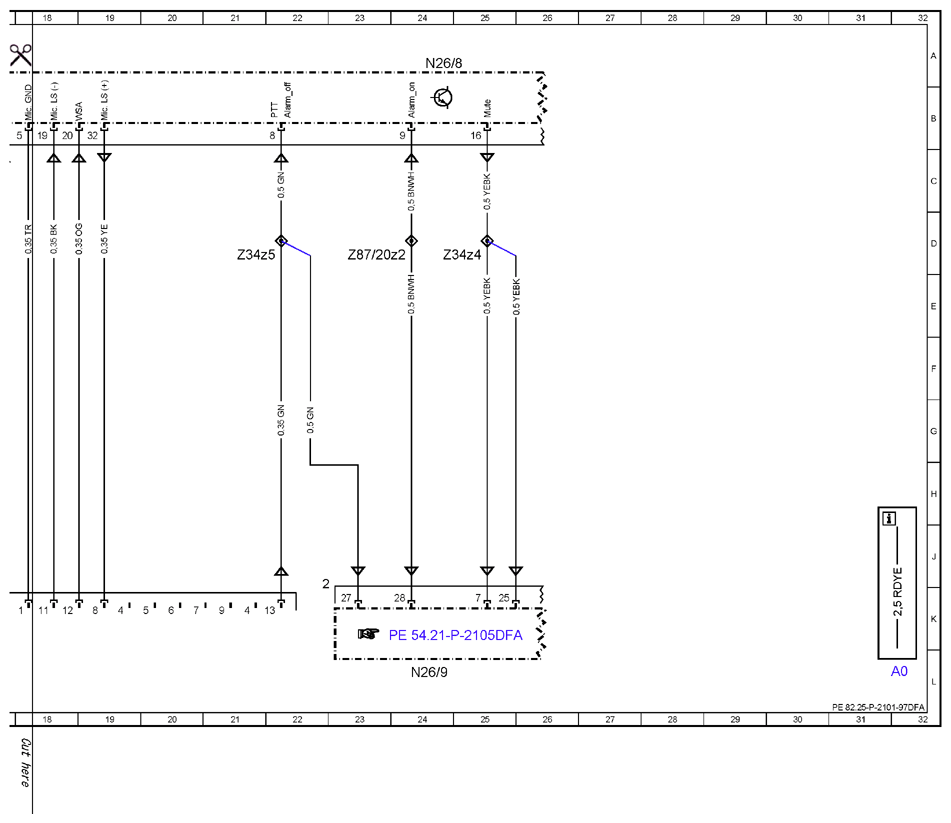

Wiring diagram, panic alarm system (PAS [GAS]) control unit - PE82.25-P-2101-97DFA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 with CODE (Z04) Light armoring Control unit N26/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B25/4 | Left outside mirror microphone | 4L |
| B25/5 | Right outside mirror microphone | 6L |
| H10 | Outside speaker | 15L |
| N10/2 | Rear SAM control unit with fuse and relay module | 12L |
| N26/8 | PAS (GAS) control unit | 8A |
| N26/8 | PAS (GAS) control unit | 16A |
| N26/8 | PAS (GAS) control unit | 24A |
| N26/9 | Special-purpose vehicle multifunction control unit | 24L |
| W7/8 | Right wheelhouse trunk ground point | 12D |
| X35/1 | Left front door electrical connector | 3F |
| X35/2 | Right front door electrical connector | 5F |
| X58/3 | Microphone separation point | 16K |
| Z34z4 | Connector sleeve (terminal point in wiring harness) | 25D |
| Z34z5 | Connector sleeve (terminal point in wiring harness) | 21D |
| Z87/20z2 | Emergency alarm signal button connector sleeve | 23D |
