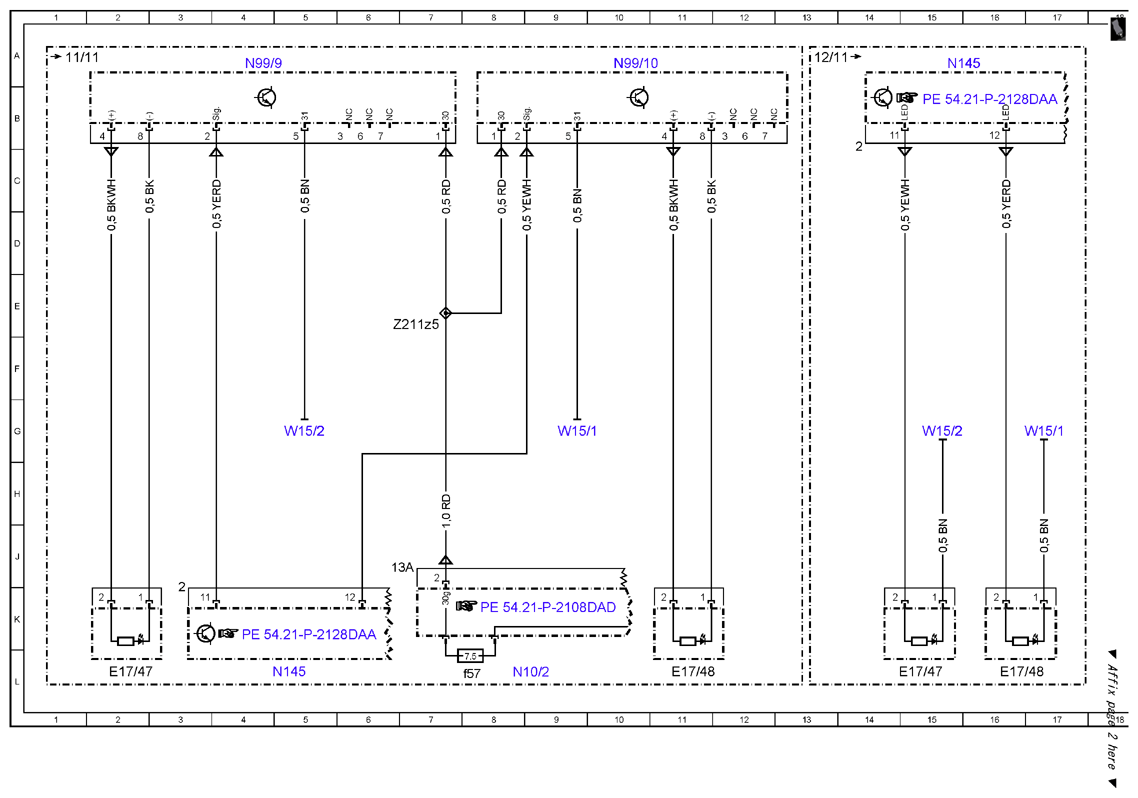

Wiring diagram of entrance/exit lamps - PE82.20-P-2100-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 990 (AMG vehicles) E17/47, E17/48
| Code: | Designation: | Position: |
|---|---|---|

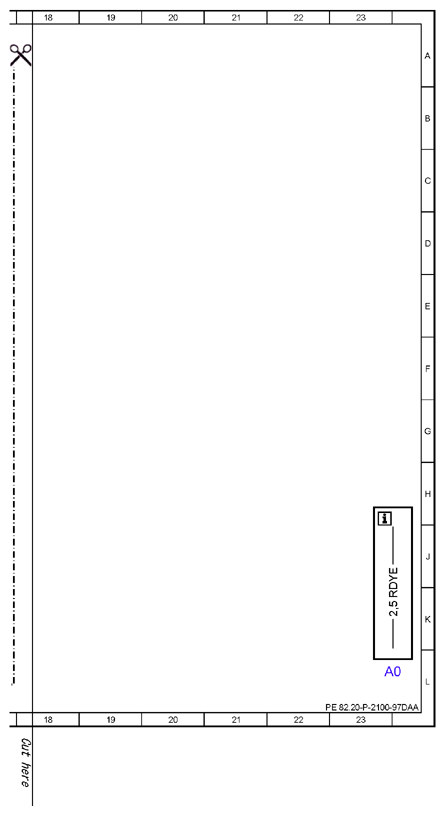

| A0 | Color code key | 23L |
| E17/47 | Left front illuminated door sill molding | 2L |
| E17/47 | Left front illuminated door sill molding | 15L |
| E17/48 | Right front illuminated door sill molding | 11L |
| E17/48 | Right front illuminated door sill molding | 16L |
| N10/2 | Rear SAM control unit with fuse and relay module | 8L |
| N10/2f57 | Fuse 57 | 8L |
| N145 | Transmission mode control unit | 5L |
| N145 | Transmission mode control unit | 15A |
| N99/10 | Right front illuminated door sill molding voltage converter | 10A |
| N99/9 | Left front illuminated door sill molding voltage converter | 4A |
| W15/1 | Right footwell ground point | 9G |
| W15/1 | Right footwell ground point | 17G |
| W15/2 | Left footwell ground point | 15G |
| W15/2 | Left footwell ground point | 5G |
| Z211z5 | Circuit 30 power supply connector sleeve | 7E |
