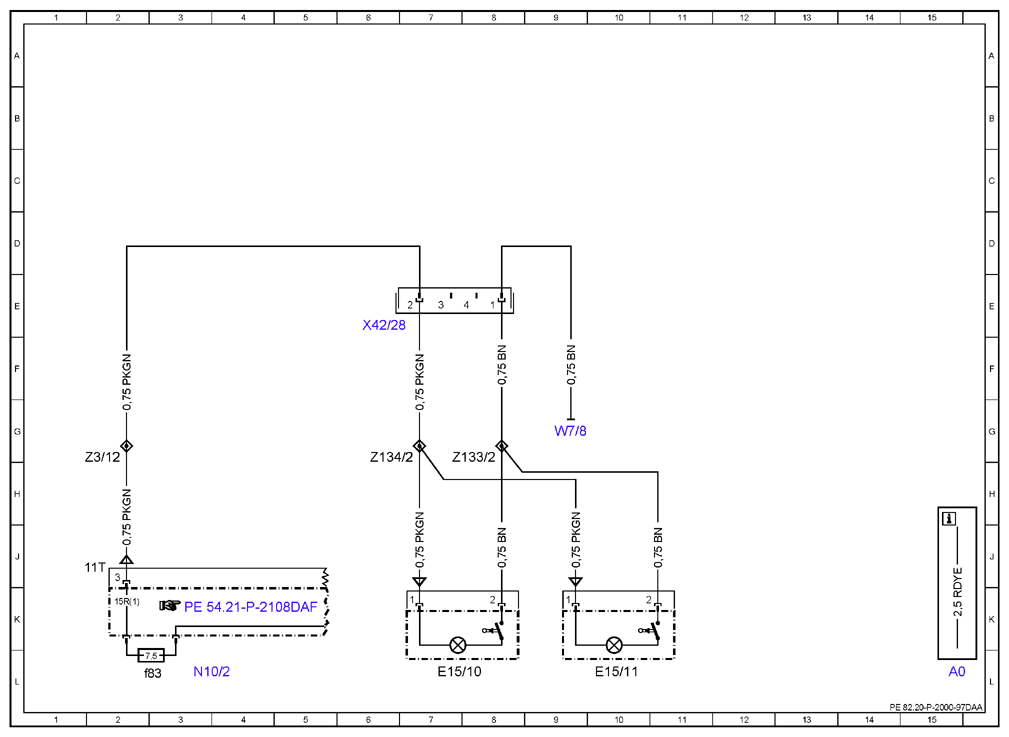

Wiring diagram interior illumination - PE82.20-P-2000-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.1 Vanity mirror illumination in rear
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| E15/10 | Left rear mirror lamp | 7L |
| E15/11 | Right rear mirror lamp | 10L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f83 | Fuse 83 | 3L |
| W7/8 | Right wheelhouse trunk ground point | 9G |
| X42/28 | Interior protection electrical connector | 6E |
| Z133/2 | Rear mirror lamp ground line connector sleeve | 8G |
| Z134/2 | Rear mirror lamp power supply connector sleeve | 6G |
| Z3/12 | Circuit 15R connector sleeve | 2G |
