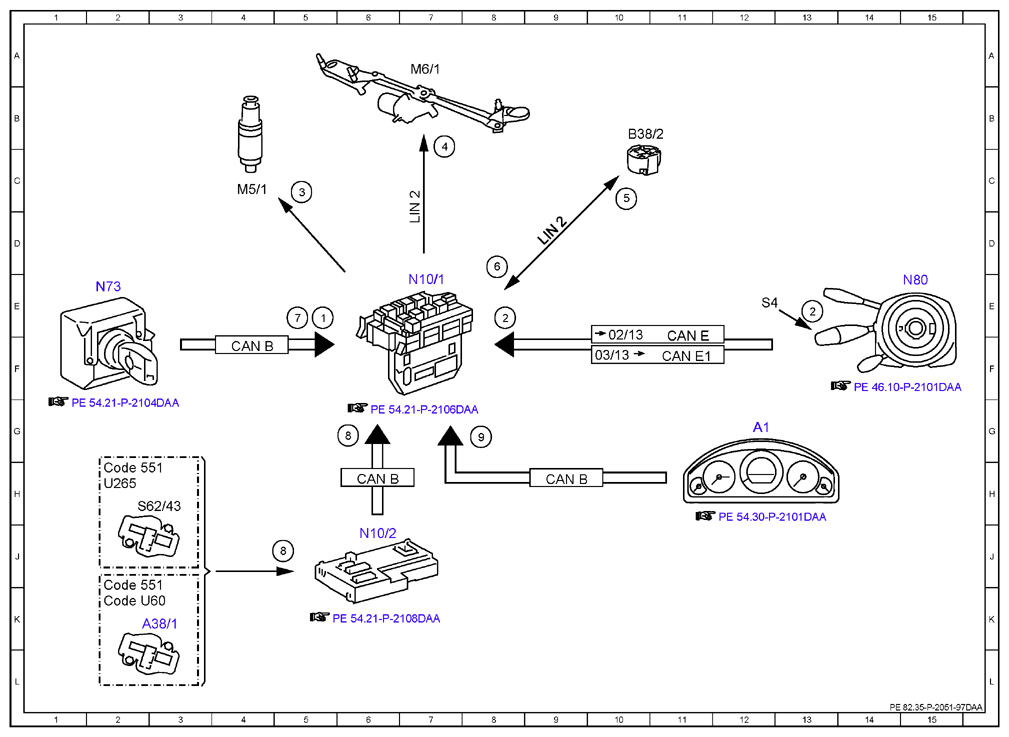

Electrical function schematic for windshield washer - PE82.35-P-2051-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5E |
| 2 | Combination switch, status | 8E |
| 2 | Combination switch, status | 13E |
| 3 | Windshield washer system pump, actuation | 5C |
| 4 | Wiper motor, actuation | 7B |
| 5 | Re-wipe, status | 10C |
| 6 | Rain/light sensor, status | 8D |
| 7 | Circuit 50, status | 5E |
| 8 | Engine hood contact switch, status | 6G |
| 8 | Engine hood contact switch, status | 5J |
| 9 | Vehicle speed, signal | 8G |
| A1 | Instrument cluster | 12G |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 3K |
| B38/2 | Rain/light sensor | 10B |
| CAN B | Interior CAN | 4F |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 9H |
| CAN E | Chassis CAN | 11F |
| CAN E1 | Chassis CAN 1 | 11F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 2H |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 2K |
| Code U60 | Pedestrian protection | 2K |
| LIN 2 | Wiper/inside rearview mirror LIN | 7C |
| LIN 2 | Wiper/inside rearview mirror LIN | 9D |
| M5/1 | Windshield washer system pump | 4C |
| M6/1 | Wiper motor | 7A |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N10/2 | Rear SAM control unit with fuse and relay module | 6J |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 15E |
| S4 | Combination switch | 12E |
| S62/43 | Left engine hood contact switch | 2H |
| U265 | Not valid for pedestrian protection | 2H |
