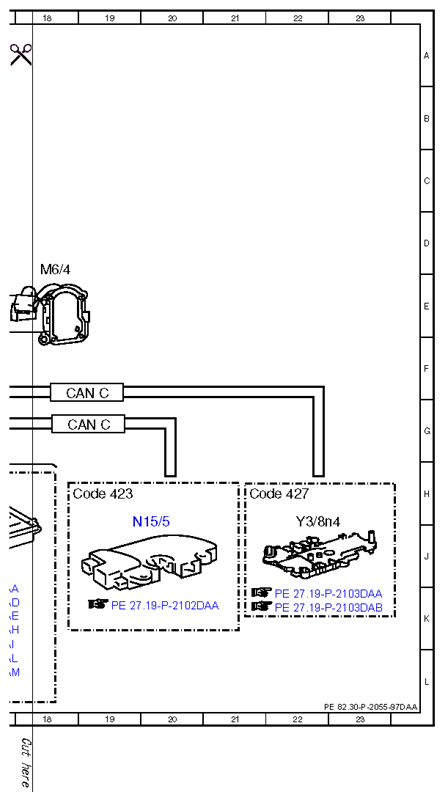

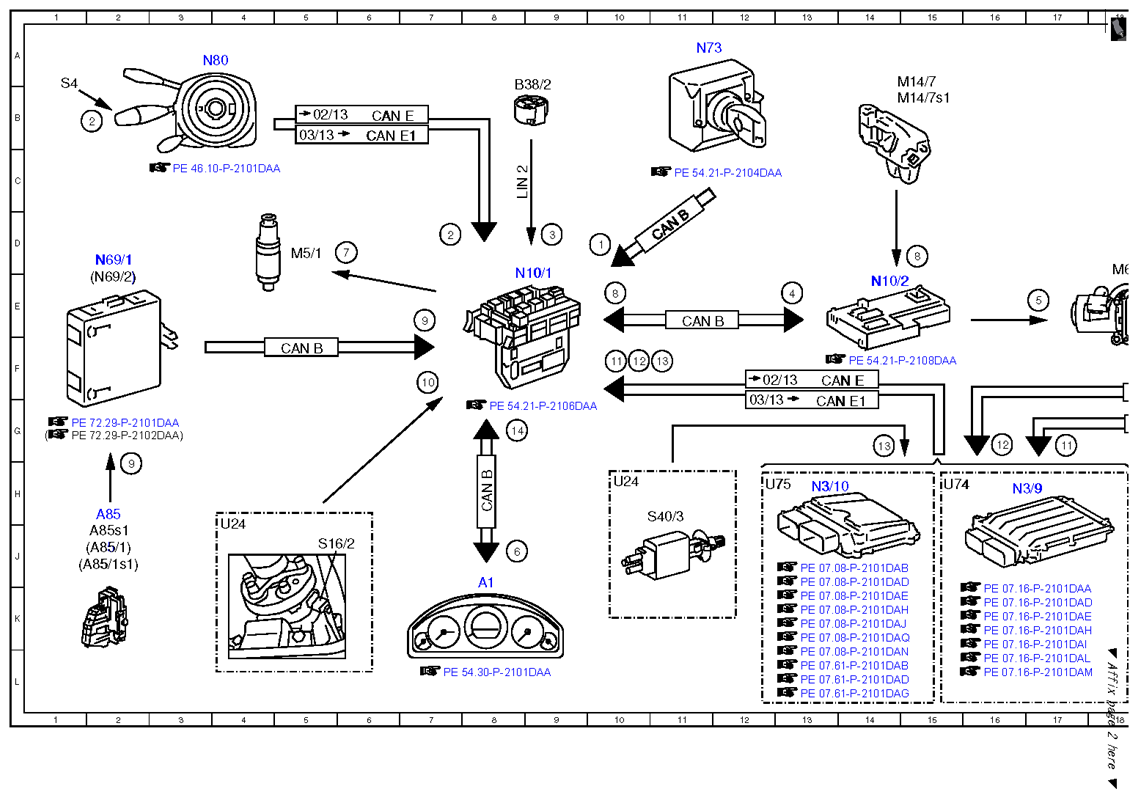

Electrical function schematic for rear window wiper system - PE82.30-P-2055-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.2
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10D |
| 10 | Backup lamp switch, status | 7F |
| 11 | Selector lever position, status | 10F |
| 11 | Selector lever position, status | 17G |
| 12 | Gear range, status | 10F |
| 12 | Gear range, status | 16G |
| 13 | Clutch pedal switch, status | 11F |
| 13 | Clutch pedal switch, status | 14G |
| 14 | Vehicle speed, signal | 8G |
| 2 | Combination switch, status | 7D |
| 2 | Combination switch, status | 2B |
| 3 | Rain/light sensor, status | 9D |
| 4 | Tailgate wiper motor, request | 13E |
| 5 | Tailgate wiper motor, actuation | 17E |
| 6 | Visual feedback, request | 8J |
| 7 | Windshield washer system pump, actuation | 6D |
| 8 | Tailgate rotary tumbler switch, status | 10E |
| 8 | Tailgate rotary tumbler switch, status | 16D |
| 9 | Door rotary tumbler switch, status | 7E |
| 9 | Door rotary tumbler switch, status | 2G |
| A1 | Instrument cluster | 8J |
| A85 | Left front door lock | 2H |
| A85/1 | Right front door lock | 2J |
| A85/1s1 | Right front door rotary tumbler switch | 2J |
| A85s1 | Left front door rotary tumbler switch | 2J |
| B38/2 | Rain/light sensor | 8B |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 11E |
| CAN B | Interior CAN | 11D |
| CAN C | Drive train CAN | 19F |
| CAN C | Drive train CAN | 19G |
| CAN E | Chassis CAN | 13F |
| CAN E | Chassis CAN | 6B |
| CAN E1 | Chassis CAN 1 | 13G |
| CAN E1 | Chassis CAN 1 | 6B |
| Code 423 | 5-speed automatic transmission | 18H |
| Code 427 | 7-speed automatic transmission | 21H |
| LIN 2 | Wiper/inside rearview mirror LIN | 8C |
| M14/7 | Tailgate central locking motor | 14A |
| M14/7s1 | Tailgate rotary tumbler switch | 14B |
| M5/1 | Windshield washer system pump | 5D |
| M6/4 | Tailgate wiper motor | 18D |
| N10/1 | Front SAM control unit with fuse and relay module | 8E |
| N10/2 | Rear SAM control unit with fuse and relay module | 14E |
| N15/5 | Electronic selector lever module control unit | 19J |
| N3/10 | ME-SFI [ME] control unit | 13H |
| N3/9 | CDI control unit | 16H |
| N69/1 | Left front door control unit | 2D |
| N69/2 | Right front door control unit | 2E |
| N73 | Electronic ignition switch control unit | 11A |
| N80 | Steering column module control unit | 3A |
| S16/2 | Backup lamp switch | 5J |
| S4 | Combination switch | 1B |
| S40/3 | Clutch pedal switch | 11H |
| U24 | Valid for manual transmission | 4J |
| U24 | Valid for manual transmission | 10H |
| U74 | Valid for diesel engines | 15H |
| U75 | Valid for gasoline engines | 12H |
| Y3/8n4 | Fully integrated transmission control unit | 22J |
