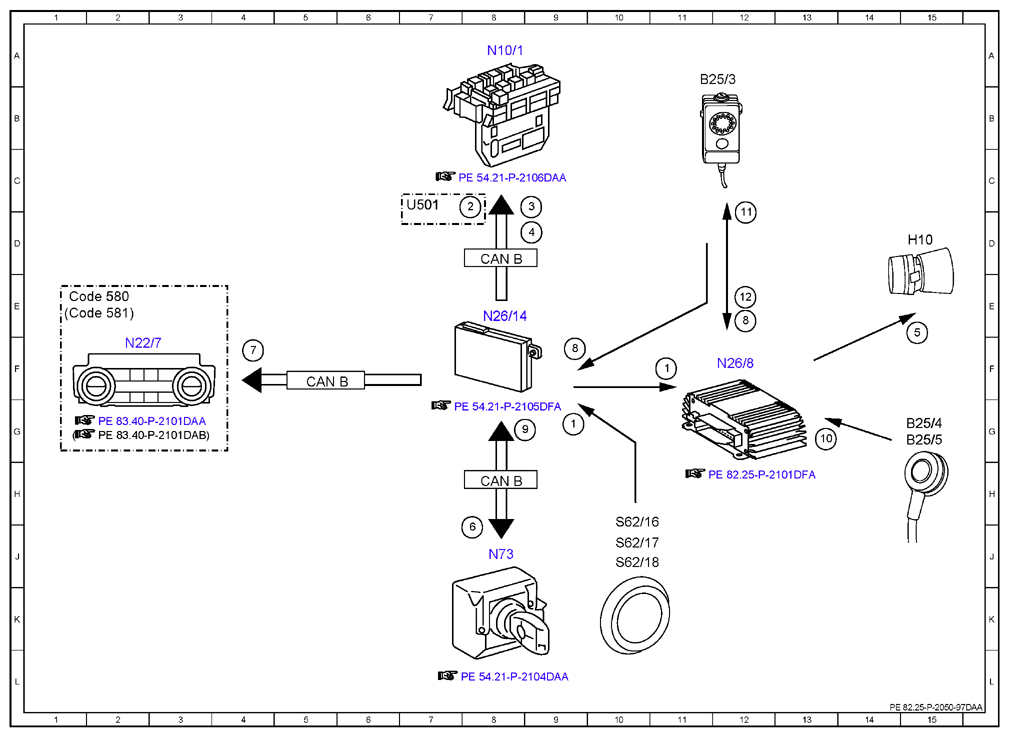

Electrical function schematic for panic alarm system (PAS (GAS)) - PE82.25-P-2050-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE Z22 (Panic alarm system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Emergency alarm system button, status | 9G |
| 1 | Emergency alarm system button, status | 11F |
| 10 | Outside mirror PAS [GAS] microphone, signal | 13G |
| 11 | Vehicle interior PAS [GAS] microphone, actuation | 12C |
| 12 | Vehicle interior PAS [GAS] microphone, signal | 12E |
| 2 | Low beams, request | 8C |
| 3 | High beams, request | 9C |
| 4 | Alarm flasher, request | 9D |
| 5 | Outside PAS [GAS] speaker, actuation | 15E |
| 6 | Open/close central locking, request | 8J |
| 7 | Switch on recirculated air mode, request | 4F |
| 8 | Deactivate panic alarm, request | 9F |
| 8 | Deactivate panic alarm, request | 12E |
| 9 | Circuit 15, status | 8G |
| B25/3 | Vehicle interior PAS [GAS] microphone | 11A |
| B25/4 | Left outside mirror microphone | 15G |
| B25/5 | Right outside mirror microphone | 15G |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 8D |
| CAN B | Interior CAN | 5F |
| Code 580 | Automatic air conditioning | 1E |
| Code 581 | Comfort automatic air conditioning | 1E |
| H10 | Outside PAS [GAS] speaker | 15D |
| N10/1 | Front SAM control unit with fuse and relay module | 8A |
| N22/7 | Automatic air conditioning control and operating unit | 2F |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 8E |
| N26/8 | PAS (GAS) control unit | 12F |
| N73 | Electronic ignition switch control unit | 8J |
| S62/16 | Left footwell emergency alarm system button | 10J |
| S62/17 | Right footwell emergency alarm system button | 10J |
| S62/18 | Rear air vent emergency alarm system button | 10J |
| U501 | Valid for xenon headlamps | 7C |
