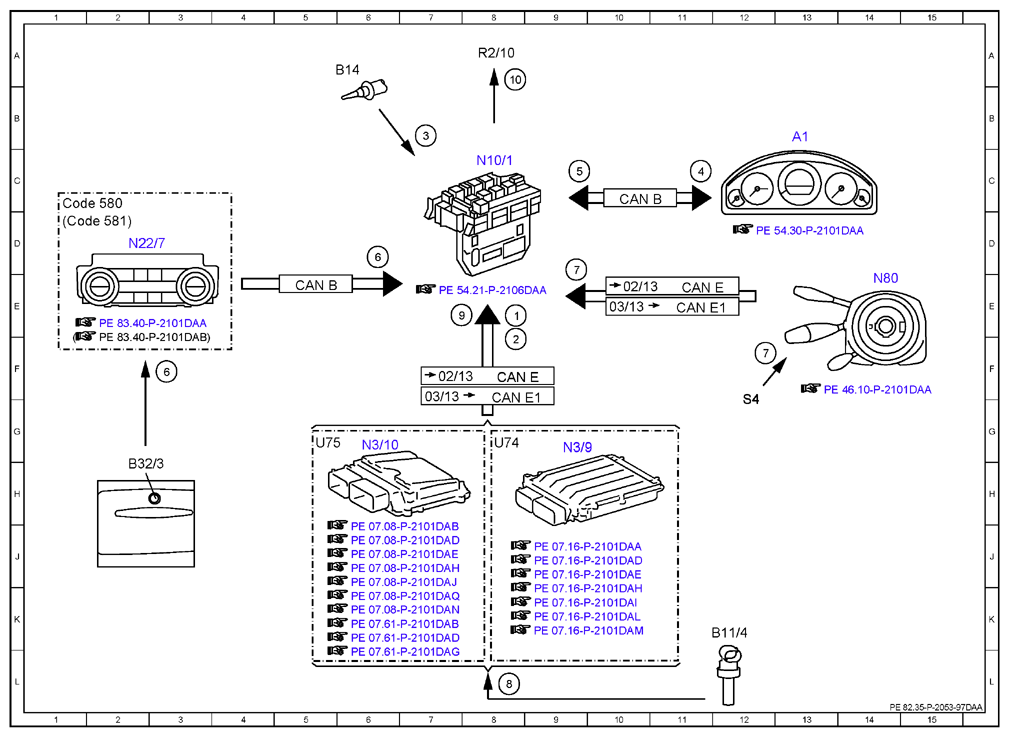

Electrical function schematic for heated wiper park position - PE82.35-P-2053-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 8E |
| 10 | Wiper park position heater, actuation | 8A |
| 2 | Drivetrain operational, signal | 8F |
| 3 | Outside temperature sensor, signal | 7B |
| 4 | Outside temperature, signal | 11C |
| 5 | Displayed outside temperature, signal | 9C |
| 6 | Sun sensor, signal | 6D |
| 6 | Sun sensor, signal | 3F |
| 7 | Combination switch, status | 9D |
| 7 | Combination switch, status | 12F |
| 8 | Coolant temperature sensor, signal | 8L |
| 9 | Coolant temperature, signal | 7E |
| A1 | Instrument cluster | 13B |
| B11/4 | Coolant temperature sensor | 12K |
| B14 | Outside temperature sensor | 6A |
| B32/3 | Sun sensor | 2H |
| CAN B | Interior CAN | 5E |
| CAN B | Interior CAN | 10C |
| CAN E | Chassis CAN | 8F |
| CAN E | Chassis CAN | 11E |
| CAN E1 | Chassis CAN 1 | 8G |
| CAN E1 | Chassis CAN 1 | 11E |
| Code 580 | Automatic air conditioning | 1C |
| Code 581 | Comfort automatic air conditioning | 1D |
| N10/1 | Front SAM control unit with fuse and relay module | 8C |
| N22/7 | Automatic air conditioning control and operating unit | 2D |
| N3/10 | ME-SFI [ME] control unit | 6G |
| N3/9 | CDI control unit | 9G |
| N80 | Steering column module control unit | 14E |
| R2/10 | Wiper park heater | 8A |
| S4 | Combination switch | 12G |
| U74 | Valid for diesel engines | 8G |
| U75 | Valid for gasoline engines | 5G |
