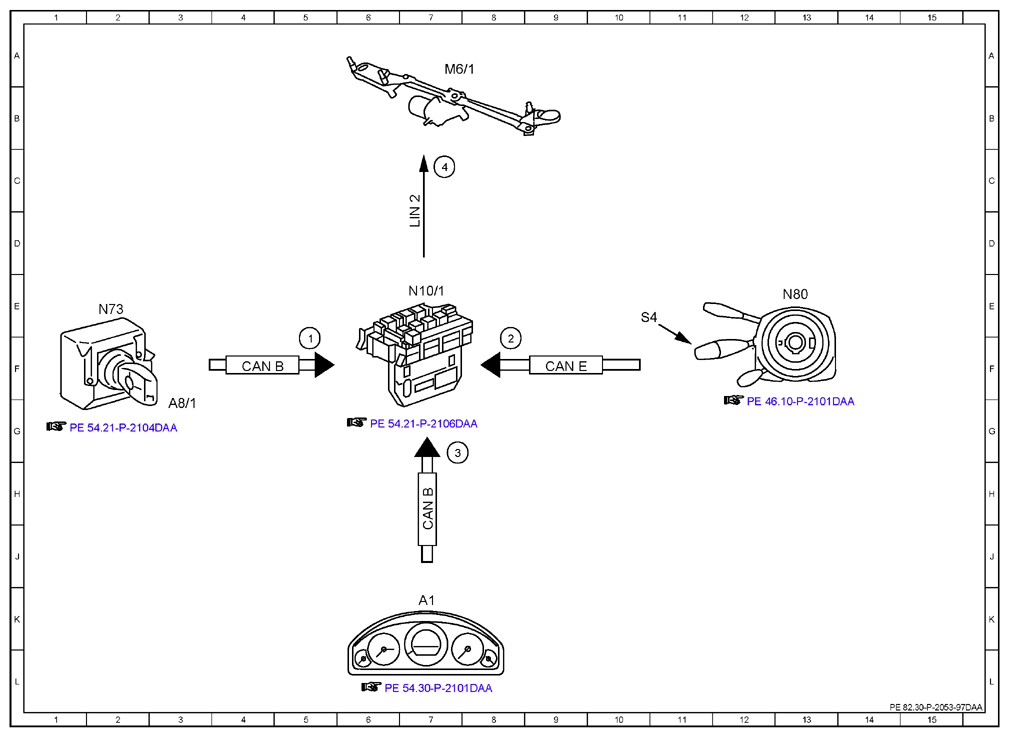

Electrical function schematic for automatic speed reduction - PE82.30-P-2053-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 /2 except CODE (494) USA version
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5E |
| 2 | Combination switch, status | 8E |
| 3 | Vehicle speed, signal | 7G |
| 4 | Wiper motor, actuation | 7C |
| A1 | Instrument cluster | 7K |
| A8/1 | Transmitter key | 3G |
| CAN B | Interior CAN | 7H |
| CAN B | Interior CAN | 4F |
| CAN E | Chassis CAN | 9F |
| LIN 2 | Wiper/inside rearview mirror LIN | 7C |
| M6/1 | Wiper motor | 7A |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 13E |
| S4 | Combination switch | 10E |
